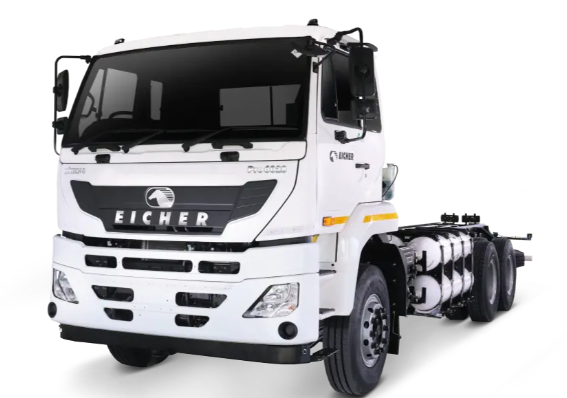

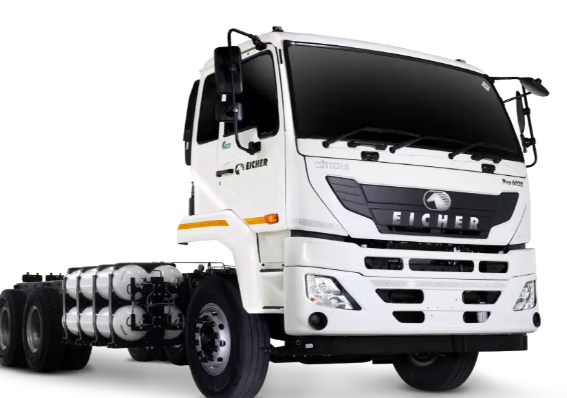

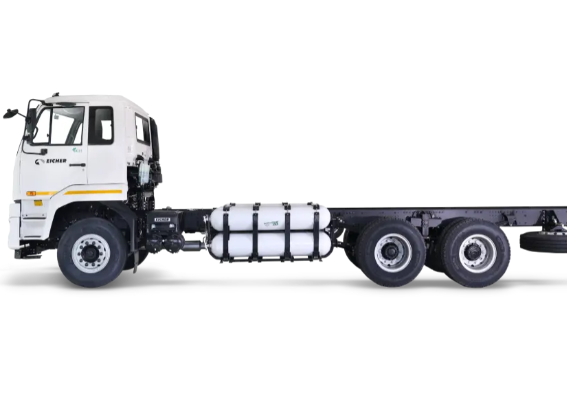

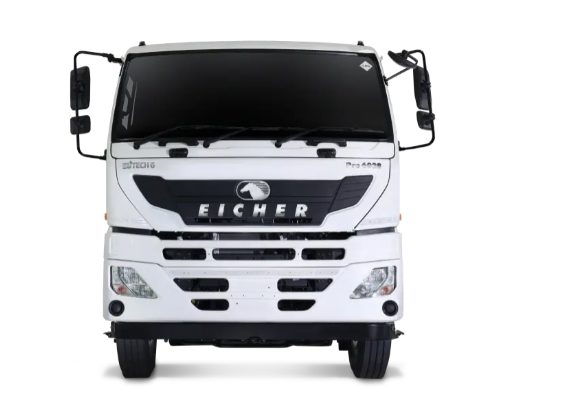

Eicher Pro 6028 CNG Heavy-Duty Truck
Specifications
|
Specification |
Details |
|
Model |
Pro 6028 CNG |
|
GVW |
28000 kg |
|
Variants |
CBC/HSD ~ 24ft |
|
Engine Model |
E694 5.7L 6 Cylinder CNG |
|
Max Power |
150 kW @ 2400 rpm |
|
Max Torque |
700 Nm @ 1200-1700 rpm |
|
Emission |
BSVI |
|
Fuel Type |
CNG |
|
Fuel Tank Capacity |
1280 litre (~180 kg CNG) |
|
Battery |
24V, 120Ah |
|
Application |
heavy-duty |
Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
5350 mm |
|
Gearbox |
ET90S6 6 Forward, 1 Reverse |
|
Clutch |
395 mm Ceramic clutch (Push type) with clutch booster |
|
Front Axle |
Reverse Elliot type front axle |
|
Rear Axle |
Heavy duty rear axle, drive head 458 mm dia |
|
Rear Axle Ratio |
5.857 |
|
Chassis Dimensions |
300x76x7 mm |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic with shock absorber |
|
Rear Suspension |
Semi-elliptic slipper |
|
Service Brakes |
Full air S-cam drum brake at Front & Rear |
|
Steering |
Tilt and telescopic Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/90R20 |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
IDIS |
|
Feature: Engine Diagnostics |
Auto misfire detection |
|
Feature: Engine Control |
Wider Lambda sensor |
|
Feature: Telematics |
My Eicher |
|
Feature: Cabin |
Sleeper Cab (HVAC Optional) |
|
Feature: Driver Comfort |
Mechanically Suspended Driver seat |
