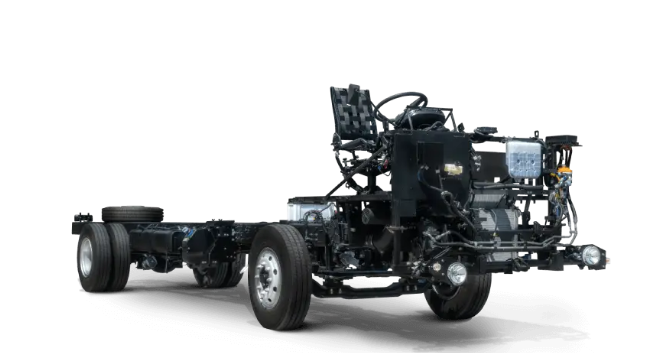

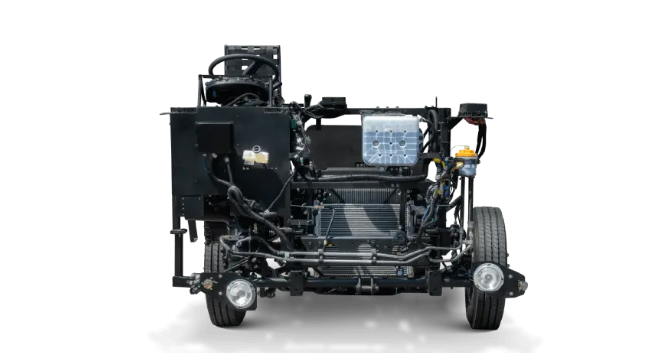

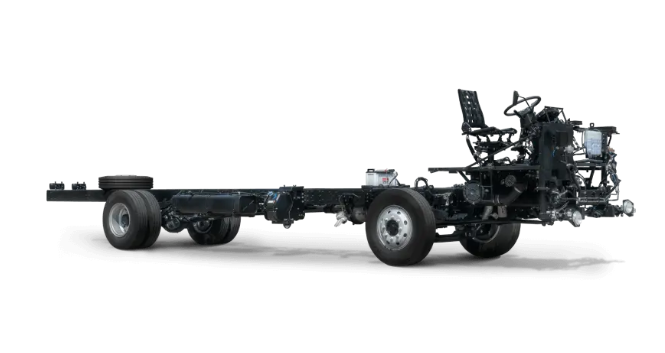

Eicher Pro 3016 N Diesel Chassis
Specifications
|
Specification |
Details |
|
Chassis Model |
Pro 3016 N |
|
Wheelbase |
5840 mm |
|
Overall Length |
11460 mm |
|
Overall Width |
2540 mm |
|
Overall Height |
2728 mm |
|
Ground Clearance |
245 mm |
|
Front Overhang |
2205 mm |
|
Rear Overhang |
3415 mm |
|
Turning Circle Diameter |
22.7 m |
|
Engine Make |
E494 |
|
Power |
134 kW @ 2600 rpm |
|
Torque |
600 Nm @ 1200 - 1800 rpm |
|
Fuel Type |
Diesel |
|
Max. GVW |
16.2 t |
|
Application |
Chassis |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Domex® 650 |
|
Chassis Dimension |
230x76x6 mm |
|
Clutch |
362 mm |
|
Transmission Make |
ET70S6 |
|
Transmission Type |
Synchromesh - 6F + 1R |
|
Fuel Tank Capacity |
250 litre, Metallic Tank |
|
DEF Tank Capacity |
27 litre |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Weveller |
|
Suspension Rear |
Weveller |
|
Brakes |
Air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
10R20-16PR / 295/80 R22.5-16PR |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
