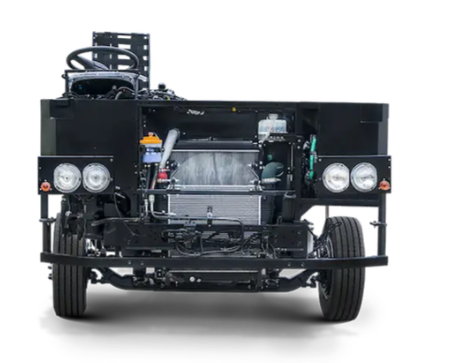

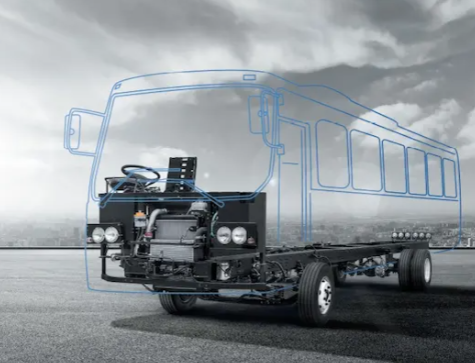

Eicher Pro 3011 L AC Diesel Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
Pro 3011 L AC |
|
Wheelbase |
5260 mm |
|
Overall Length |
10159 mm |
|
Overall Width |
2226 mm |
|
Overall Height |
2470 mm |
|
Ground Clearance |
185 mm |
|
Front Overhang |
1918 mm |
|
Rear Overhang |
2981 mm |
|
Turning Circle Diameter |
18.5 m |
|
Engine Make |
E494 |
|
Displacement |
3770 cc |
|
Power |
120 kW @ 2600 r/min |
|
Torque |
500 Nm @ 1200-1800 r/min |
|
Fuel Type |
Diesel |
|
Max. GVW |
11.8 t |

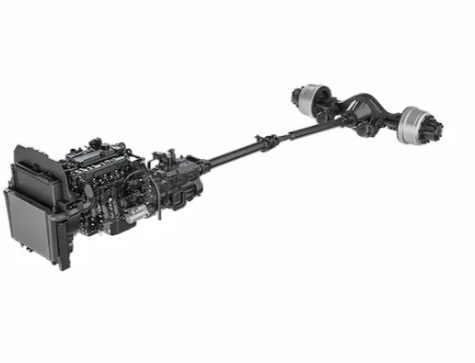

Frame & Drivetrain
|
Specification |
Details |
|

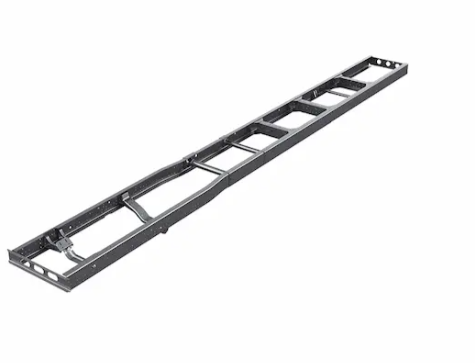

Chassis Type |
Ladder - Joggle trype |
|
Chassis Dimension |
210 X 76 X 6 mm |
|
Clutch |
330 mm |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh 6SPeed+1Rev |
|
Fuel Tank Capacity |
160 litres |
|
DEF Tank Capacity |
27 litres |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Parabolic With ARB |
|
Suspension Rear |
Parabolic |
|
Brakes |
dual circuit 'S' cam full air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
235/75 R17.5 - 14PR |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
|
Feature: Safety |
Seat Belts |
|
Feature: Safety |
Emergency Exit |
|
Feature: Comfort |
Air Conditioning (AC) Unit |
