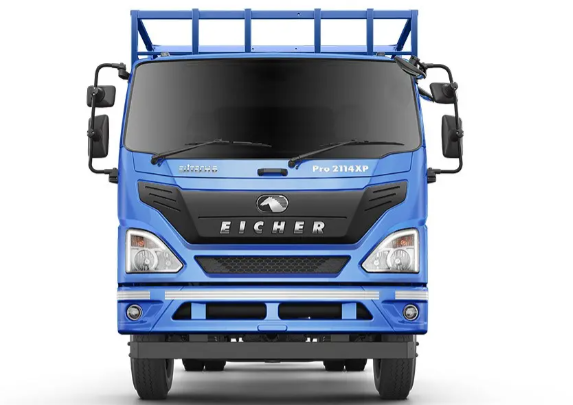

Eicher Pro 2114XP Diesel Medium-Duty Truck
Specifications
|
Specification |
Details |
|
Model |
Pro 2114XP |
|
GVW |
16371 kg |
|
Wheelbase |
3900 mm / 4355 mm / 5105 mm |
|
Cargo Body Length (Internal) |
5252 mm / 5804 mm / 6101 mm / 6777 mm / 7360 mm |
|
Cargo Body Width (Internal) |
2287 mm |
|
Ground Clearance |
258 mm |
|
Turning Circle Diameter |
15.2 m / 16.7 m / 19.9 m |
|
Engine Make |
E494 4V TCI BS VI (CRS Diesel Engine) |
|
Max. Power Output |
120 kW @ 2600 rpm |
|
Max. Torque Output |
500 Nm @ 1200-1800 rpm |
|
Emission |
BS VI |
|
Fuel Type |
Diesel |
|
Fuel Tank Capacity |
Anti-Corrosive Composite HDPE Polymer - 190 litre (5252 mm); Metallic - 190 litre (5804 mm, 6101 mm); HDPE - 425 litre (6777 mm, 7360 mm) |
|
Battery |
12 V - 100 Ah |
|
Gradeability |
25% (5252 mm); 23% (5804 mm, 6101 mm, 6777 mm, 7360 mm) |
|
Warranty |
3 years/unlimited km on vehicle; 4 years/unlimited km on engine and gearbox |
|
Application |
medium-duty |
Frame & Drivetrain
|
Specification |
Details |
|
Transmission |
ET60S5 (5252 mm); ET50S7 (5804 mm, 6101 mm, 6777 mm, 7360 mm) |
|
Gear Type |
5 Speed – 5F+1R (5252 mm); 7 Speed – 7F (2 overdrive gears) + 1R (5804 mm, 6101 mm, 6777 mm, 7360 mm) |
|
Clutch |
330 mm |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Semi Elliptical Laminated leaves with Helper |
|
Brakes (Service) |
Air Brake (Drum) |
|
Steering |
Tilt and telescopic Standard Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
9.00R20 - 16PR Standard Radial Tyres |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
|
Feature: Cabin |
2m wide tiltable cabin, PEGASUS family look with eagle eyes, new interiors with utility features |
