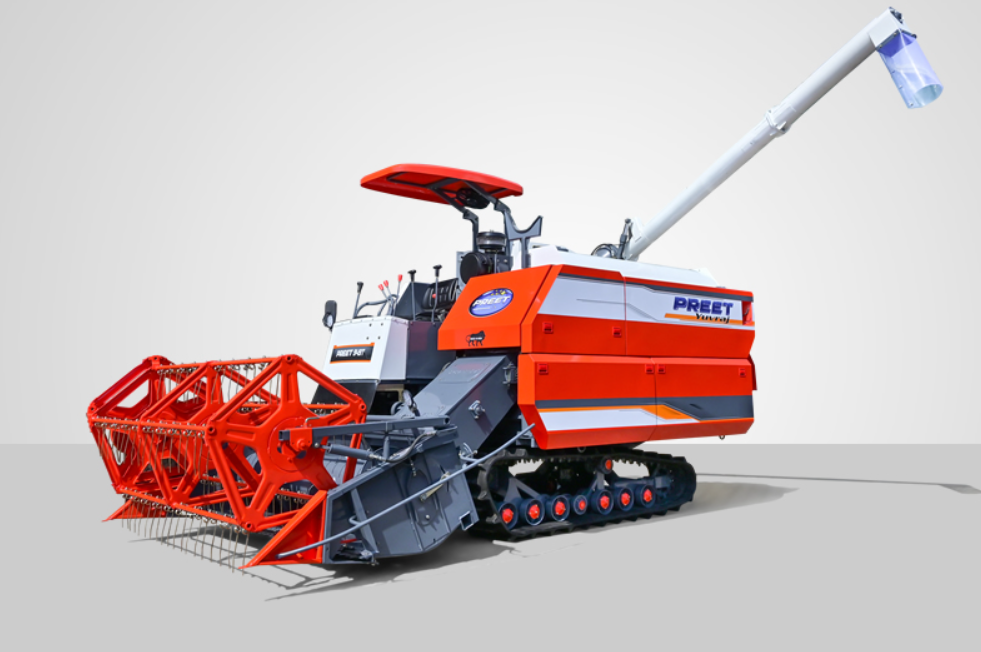

PREET 997 Stellar Maize Combine Harvester with AC Cabin – 101 HP Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
PREET 997 Stellar Maize |
|
Vehicle Category |
Self-Propelled Multicrop Combine Harvester with AC Cabin |
|
Fuel Type |
Diesel |
|
Application |
Wheat, paddy, maize |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6-cylinder, water-cooled, combination of dry and wet air cleaner |
|
Gross Horsepower |
101 HP @ 2200 RPM |
|
Transmission Type |
Heavy-duty gearbox, 4 forward, 1 reverse, collar shift gears |
|
Gear Speeds (km/hr @ 1700 RPM) |
1st: 1.8–2.9; 2nd: 4–6.4; 3rd: 7.25–11.6; 4th: 15.9–25.5; Reverse: 5.3–8.4 |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Disc brake system |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
18.4 x 30, 14 PR |
|
Rear Wheels |
9.00 x 16, 16 PR |
Components & Features
|
Specification |
Details |
|
Chassis |
Heavy-duty, single sheet design with wide windows for easy maintenance |
|

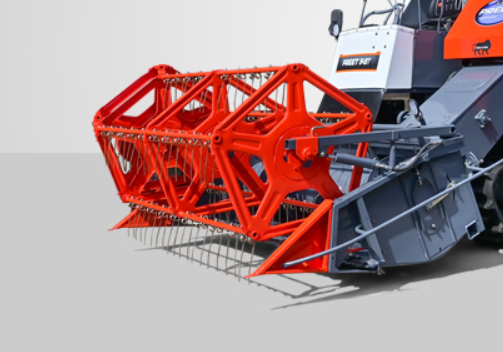

Cutter Bar Assembly |
Working width: 4345 mm (14.25 feet), cutting height: 65–1275 mm, 58.5 blades, 29 guards, 85 mm stroke |
|
Threshing System |
Thresher width: 1250 mm, diameter: 605 mm, speed range: 540–1200 RPM (mechanical variator); Chain-type feed rack |
|
Cleaning Sieves |
Upper sieve: 2.42 m², lower sieve: 1.77 m², adjustable from 3 points, heavy-duty sieve box bracket |
|
Straw Walker |
5 straw walkers, 5 steps each, 3815 mm length, 235 mm width, single sheet design |
|
Grain Tank |
2.65 m³, hydraulically operated discharge tube |
|
Clutch |
Single, heavy-duty dry clutch, 330 mm diameter |
|
Steering |
Power steering, adjustable |
|
Fuel Tank |
365 L |
|
Features |
AC cabin, single sheet stainless steel tray, heavy-duty gearbox with five speeds, 13" clutch plate, increased feeder chamber length, single lever gear shift, 75 mm heavy-duty hydraulic cylinder, 26 L high-capacity hydraulic pump, front/rear ladders, resting platform on rear ladder, German-quality paint, less grain loss, gas spring for shield opening, belt-operated radiator cleaning brush, EN-42 sheet auger casing, UCF bearings, stainless steel elevators, adjustable cushioned driver seat, easily operated instrument panel |
|
Width |
3130 mm (working and transportation) |
|
Length |
8850 mm (working), 12730 mm (transportation) |
|
Max Height |
4800 mm (working), 3880 mm (transportation) |
|
Weight |
10650 kg (approx.) |
|
Ground Clearance |
370 mm |
