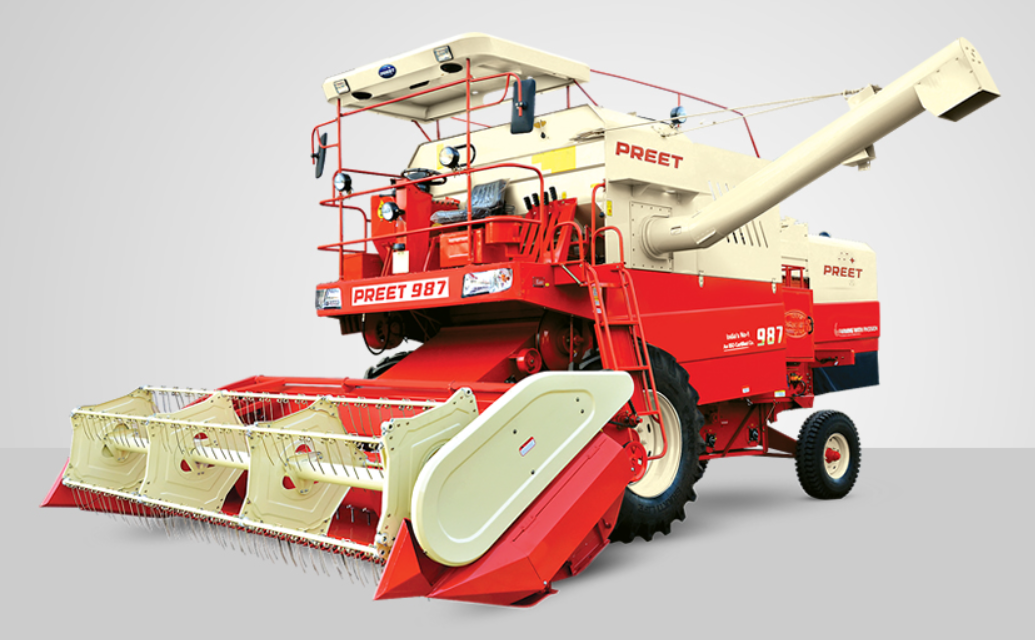

PREET 987 Stellar AC Maize Self Propelled Multicrop Combine Harvester – 101 HP Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
PREET 987 Stellar AC Maize |
|
Vehicle Category |
Self-Propelled Multicrop Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Wheat, paddy, soybean, sunflower, mustard, grams |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6-cylinder, water-cooled, combination of dry and wet air cleaner |
|
Gross Horsepower |
101 HP @ 2200 RPM |
|
Transmission Type |
Heavy-duty gearbox, 4 forward, 1 reverse, collar shift gears |
|
Gear Speeds (km/hr @ 1700 RPM) |
1st: 1.8–2.9; 2nd: 4–6.4; 3rd: 7.25–11.6; 4th: 15.9–25.5; Reverse: 5.3–8.4 |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Disc brake system |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
18.4-30, 12 PR or 14 PR |
|
Rear Wheels |
11.2-24, 6 PR |
Components & Features
|
Specification |
Details |
|
Chassis |
Heavy-duty, single sheet design with wide windows for easy maintenance |
|

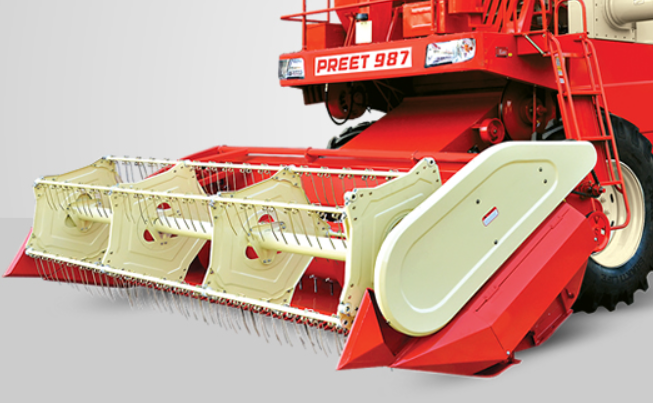

Cutter Bar Assembly |
Working width: 4300 mm (14 feet), cutting height: 65–1275 mm, 58 blades, 85 mm stroke, front auger (406.4 mm dia), shoe-type crop dividers |
|
Threshing System |
Thresher width: 1250 mm, diameter: 605 mm, speed range: 540–1200 RPM (mechanical variator); Concave clearance: wheat (front 17 mm, rear 6–10 mm), paddy (front/rear 17 mm), maize (front 19 mm, rear 19 mm); Chain-type feed rack |
|
Cleaning Sieves |
Upper sieve: 2.42 m², lower sieve: 1.77 m², adjustable from 3 points, heavy-duty sieve box bracket |
|
Straw Walker |
5 straw walkers, 5 steps each, 3770 mm length, 235 mm width, single sheet design |
|
Grain Tank |
2.9 m³, hydraulically operated discharge tube |
|
Reel Assembly |
915 mm diameter, 20–55 RPM, variator pulley for RPM adjustment, superior tine material |
|
Clutch |
Single, heavy-duty dry clutch, 330 mm diameter |
|
Steering |
Power steering, adjustable |
|
Fuel Tank |
365 L |
|
Features |
Single sheet stainless steel tray, heavy-duty gearbox with six speeds, 13" clutch plate, sharp edge blades, 75 mm heavy-duty hydraulic cylinder, 26 L high-capacity hydraulic pump, front/rear ladders, resting platform on rear ladder, projected and LED lights, cushioned adjustable driver/helper seats, easily operated instrument panel, German-quality paint, less grain loss, gas spring for shield opening, belt-operated radiator cleaning brush, EN-42 sheet auger casing, UCF bearings, stainless steel elevators |
|
Width |
3850 mm (working), 3035 mm (transportation) |
|
Length |
9175 mm (working), 11550 mm (transportation) |
|
Max Height |
3850 mm (working and transportation) |
|
Weight |
9450 kg (approx.) |
|
Ground Clearance |
370 mm |
