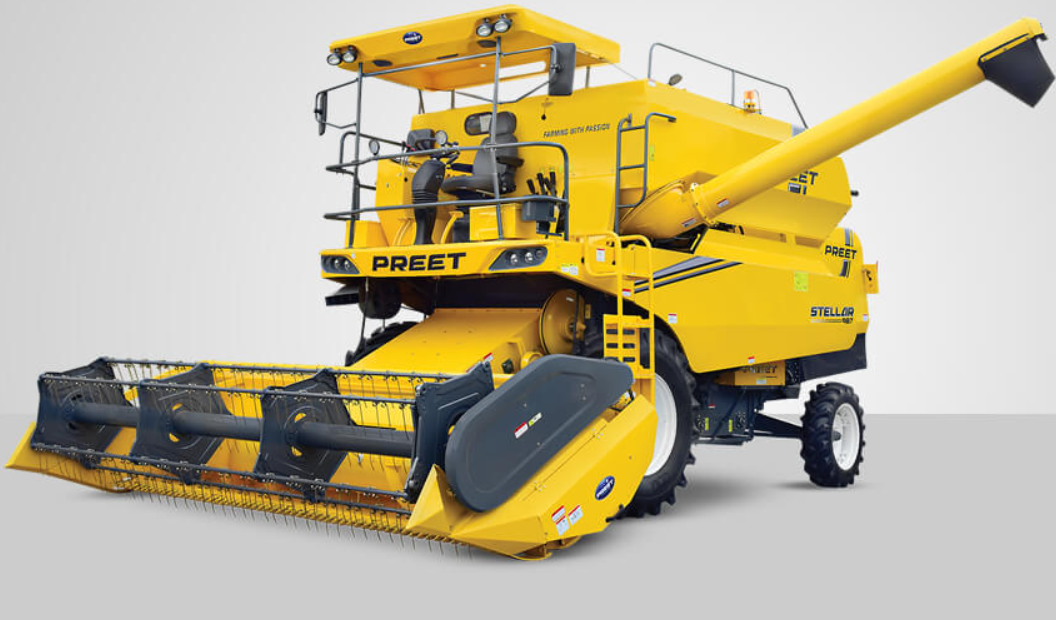

PREET 987 Self Propelled Multicrop Combine Harvester – 101 HP Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
PREET 987 |
|
Vehicle Category |
Self-Propelled Multicrop Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Wheat, paddy, maize, red gram, soybean, sunflower, mustard, grams, arhar, moong |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6-cylinder, water-cooled, combination of dry and wet air cleaner |
|
Gross Horsepower |
101 HP @ 2200 RPM |
|
Transmission Type |
Heavy-duty gearbox, 3 forward, 1 reverse (4 forward, 1 reverse in some configurations), collar shift gears |
|
Gear Speeds (km/hr) |
Low: 1st: 1.8–2.9, 2nd: 4–6.4, 3rd: 7.25–11.6, 4th: 15.9–25.5; High: 1st: 2.3–3.7, 2nd: 5.1–8.3, 3rd: 12.8–20.5; Reverse: 5.3–8.4 |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil-immersed brake system |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
18.4-30, 12 PR or 14 PR |
|
Rear Wheels |
9.00-16, 16 PR |
Components & Features
|
Specification |
Details |
|
Chassis |
Heavy-duty, robust structure |
|
Cutter Bar Assembly |
Working width: 4300 mm (14 feet), alternative widths: 3400 mm or 3120 mm (for maize), cutting height: 65–1275 mm, 57 blades, 28 guards, 85 mm stroke, gear-driven cutting blade, chain-type feed rack, 5/6/7 rows for maize (spacing: 457.2 mm, 609.6 mm, 762 mm) |
|
Threshing System |
Thresher width: 1250 mm, diameter: 605 mm, speed range: 540–1200 RPM (mechanical variator); Concave clearance: wheat (front 17 mm, rear 6–10 mm), paddy (front/rear 17 mm), maize (front/rear 17 mm) |
|
Cleaning Sieves |
Upper sieve: 2.42 m², lower sieve: 1.77 m² |
|
Straw Walker |
5 straw walkers, 5 steps each, 3770 mm length, 235 mm width |
|
Grain Tank |
2.5 m³ |
|
Reel Assembly |
915 mm diameter, 20–55 RPM, superior tine material |
|
Clutch |
Single, heavy-duty dry clutch, 310 mm diameter |
|
Steering |
Hydraulic power steering |
|
Fuel Tank |
365 L |
|
Features |
Broader canopy, ladder cover, long-distance focus light, stainless steel auger casing, UCF bearings, easy-to-open elevators, small turning radius with individual braking, cushioned adjustable driver seat, high-quality paint |
|
Width |
4665 mm (working), 3035 mm (transportation) |
|
Length |
8370 mm (working), 12450 mm (transportation) |
|
Max Height |
3850 mm (working and transportation) |
|
Weight |
9450 kg (approx.) |
|
Ground Clearance |
370 mm |
