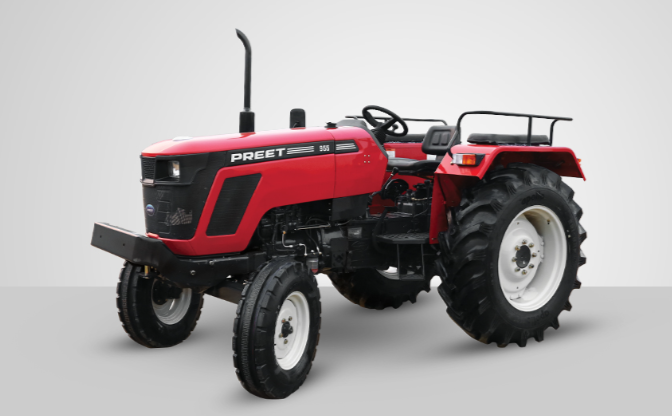

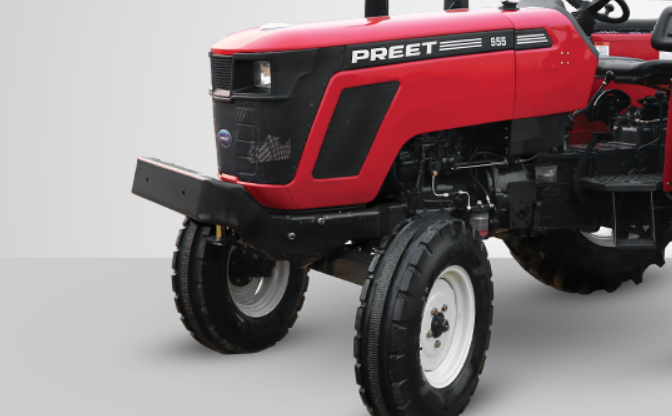

PREET 955 2WD(8+2) NSM – 2WD Agricultural Tractor by PREET
NSM 1.png)
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 955(8+2) NSM |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Bore / Stroke |
105 / 118 mm |
|
Rated RPM |
2200 r/min |
|
Clutch Type |
Heavy Duty Dry Dual 280 mm Cerametallic Plates |
|
Transmission Type |
Sliding Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Power Range |
50 HP |
|
Road Speed |
Forward: High 10.52-33.89 km/h, Low 2.67-8.60 km/h; Reverse: High 12.27 km/h, Low 3.74 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Wet Type / Dry Optional |
|
Steering Type |
Power Steering |
|
Min. Turning Radius |
3.35 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.5 x 16 inch |
|
Rear Tyres |
14.9 x 28 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1800 kg |
|
PTO RPM |
540 |
|
Fuel Tank Capacity |
67 L |
|
Engine Sump Capacity |
8 L |
|
Cooling System Capacity |
8.5 L |
|
Transmission & Hydraulic Capacity |
55 L |
|
Steering System Capacity |
2 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category-II |
|
Electronic Meter |
Electronic meter |
|
Mobile Charger Point |
Mobile charger point |
|
Power Steering (Optional) |
Optional power steering |
|
Big Air Cleaner |
Large air cleaner |
|
Aero Dynamic Bonnet |
Aero dynamic bonnet |
|
Oil Immersed Brake |
Oil immersed brake |
|
Multi Speed PTO & Reverse PTO |
Multi speed and reverse PTO |
|
8+2 Reverse / Forward Speed |
8+2 reverse / forward speed |
|
Ground Clearance |
410 mm |
|
Wheel Base |
2085 mm |
|
Weight |
2100 kg |
