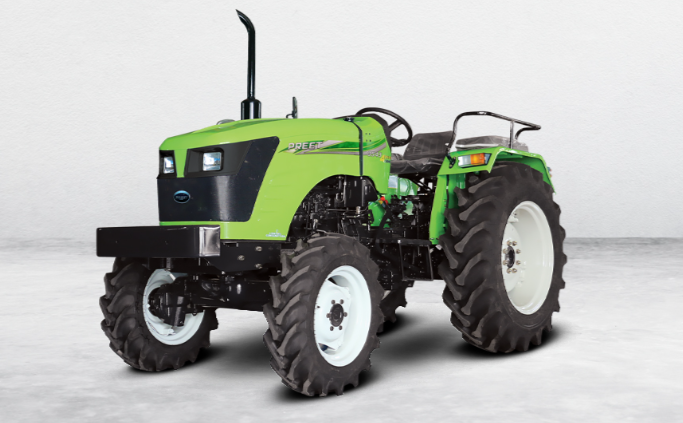

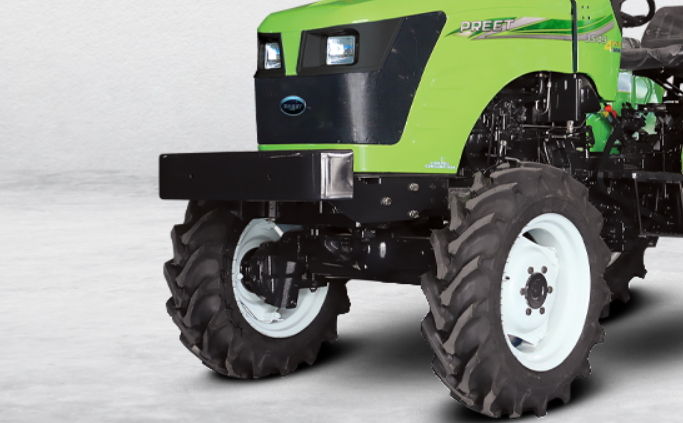

PREET 955 4WD – 4WD Agricultural Tractor by PREET
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 955 |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Bore / Stroke |
105 / 118 mm |
|
Rated RPM |
2200 r/min |
|
Clutch Type |
Heavy Duty Dry Dual, Dia 280 mm, Cerametalic Friction |
|
Transmission Type |
Sliding Mesh |
|
Drive Type |
4WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Power Range |
50 HP |
|
Road Speed |
Forward: High 10.52-33.89 km/h, Low 2.67-8.60 km/h; Reverse: High 12.27 km/h, Low 3.74 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi Disc Oil Immersed |
|
Steering Type |
Power Steering |
|
Min. Turning Radius |
3.5 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
8.00 - 18 inch |
|
Rear Tyres |
14.9 - 28 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1800 kg |
|
PTO RPM |
540 |
|
Fuel Tank Capacity |
67 L |
|
Engine Sump Capacity |
8 L |
|
Cooling System Capacity |
8.5 L |
|
Transmission & Hydraulic Capacity |
55 L |
|
Steering System Capacity |
2 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category I-II |
|
Battery |
12V, 88Ah |
|
Alternator |
12V, 42A |
|
Starter Motor |
12V, 2.7 kW |
|
Bonnet Lock with Key |
Bonnet lock with key |
|
Electronic Meter |
Electronic meter |
|
Mobile Charger Point |
Mobile charger point |
|
Power Steering (Optional) |
Optional power steering |
|
Big Air Cleaner |
Large air cleaner |
|
Aero Dynamic Bonnet |
Aero dynamic bonnet |
|
Oil Immersed Brake |
Oil immersed brake |
|
Multi Speed PTO & Reverse PTO |
Multi speed and reverse PTO |
|
Front Drive Axle Differential |
Limited Slip |
|
Front Drive Axle Total Ratio |
1:13.98 |
|
Front Drive Axle Oil Capacity |
5.9 ± 10% L |
|
Overall Length |
3700 mm |
|
Width |
1820 mm |
|
Height up to Exhaust |
2265 mm |
|
Ground Clearance |
375 mm |
|
Wheel Base |
2100 mm |
|
Front Track |
1280 mm |
|
Rear Track |
1415 mm |
|
Weight |
2300 kg |
