Specification

Details

Model

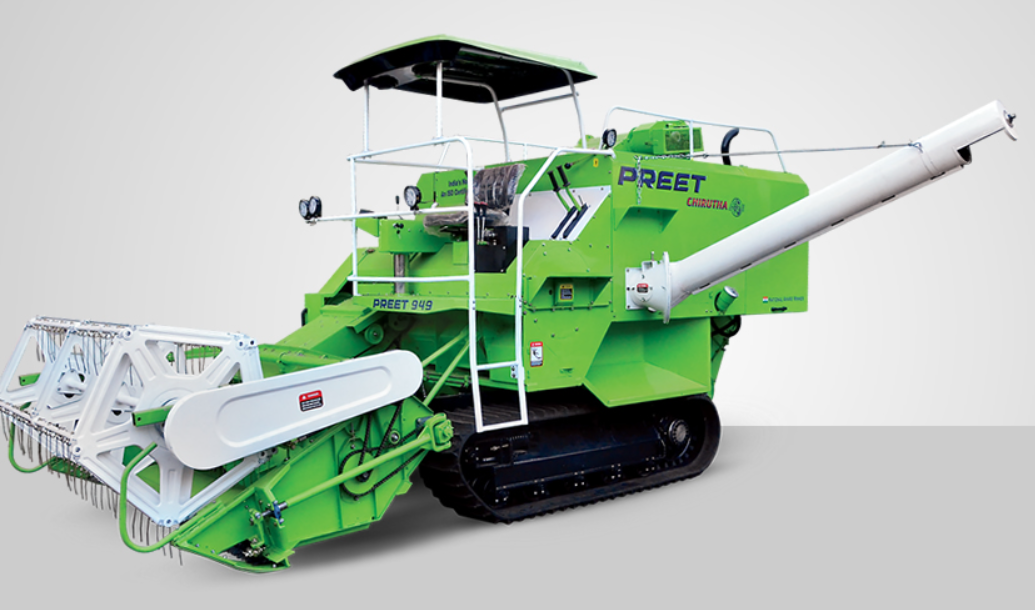

PREET 949 TAF Axial Flow

Vehicle Category

Self-Propelled Track Combine Harvester

Fuel Type

Diesel

Application

Wheat, paddy, maize

Specification

Details

Engine

PREET Agro Ind., not specified

Gross Horsepower

66 kW @ 2200 RPM

Transmission Type

Special gearbox for infinitely variable speed, high-quality HST gear pump transmission

Gear Speeds (km/h)

0–7.5

Specification

Details

Brakes

Built-in wet friction plate type

Specification

Details

Track Assembly

Crawler specification: 90 mm pitch, 56 segments, 500 mm width, heavy-duty sprocket, wide track rollers

Specification

Details

Chassis

Stainless steel components for wear-prone parts

Cutter Bar Assembly

Working width: 2100 mm, serrated normalized cutting knives, telescopic horizontal conveying auger, pick-up tyne, cutter bar safety cylinder

Threshing System

Axial flow spike-tooth type, main cylinder: 650 mm diameter x 2005 mm length, open flat bar with wires concave sieve, auger spike-tooth rethresher

Cleaning Sieves

Slide-type sieve casing for easy assembly/disassembly

Grain Tank

Screw conveyance system, discharge tube with switch-operated swing

Reel Assembly

900 mm diameter, heavy-duty single sheet drawn, 4 reel plates

Steering

Forward/reverse lever for directional control

Features

Wide crawler for low ground pressure, reverse mechanism lever, long-distance focus lights, cushioned adjustable driver seat, new design control panel, easily opened radiator section, easily assembled concave and threshing cylinder side cover, high-quality belts and bearings, rotary plug-in blade straw chopper, best paint quality, lightweight for deep paddy conditions

Width

2352 mm (field operation)

Length

5230 mm (field operation)

Max Height

2980 mm (field operation)

Weight

3900 kg (combine operation mass)

Ground Clearance

340 mm
