Specification

Details

Model

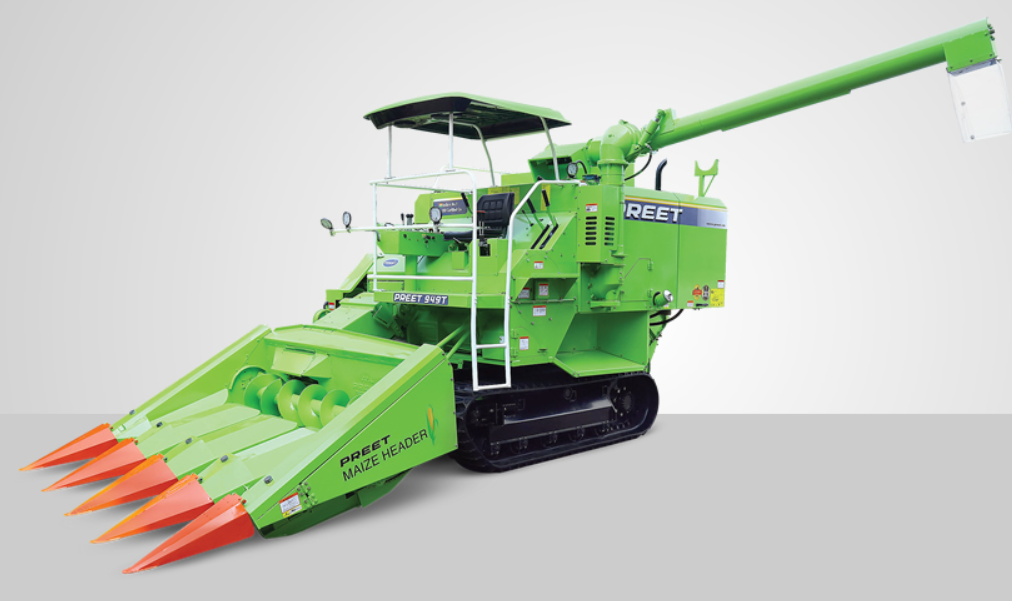

PREET 949T TAF (Maize)

Vehicle Category

Self-Propelled Track Combine Harvester

Fuel Type

Diesel

Application

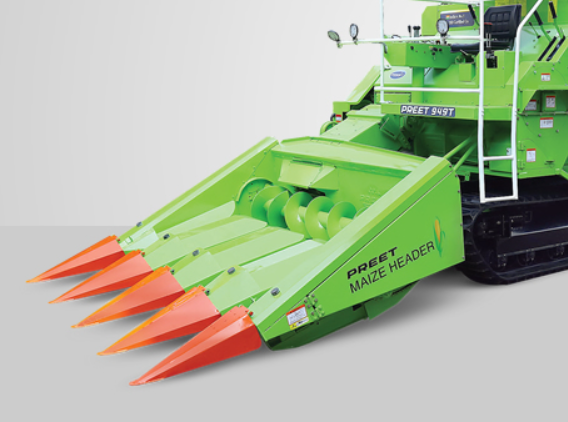

Maize

Specification

Details

Engine

Ashok Leyland ALUW-04D or PREET 7549 TC, 4-cylinder, water-cooled, dry-type air cleaner

Gross Horsepower

76 PS @ 2200 RPM

Transmission Type

Hydrostatic transmission with hydraulic variable displacement, double pump, and two fixed displacement motors

Specification

Details

Track Assembly

1830 mm belt length on ground, 1435 mm track width, 450 mm belt width, 5 track rollers per side, 60 rubber grousers per side, 30 mm grouser height

Specification

Details

Chassis

Stainless steel chassis, robust structure

Cutter Bar Assembly

Working width: 2280 mm (7.5 feet), cutting height: 30–1290 mm, chain-type feed rack, best quality crop cutting blades

Threshing System

Thresher width: 760 mm, diameter: 600 mm, speed: 585 RPM; Concave length: 770 mm, clearance: front 13–35 mm, rear 9–12 mm, mechanical adjustment

Cleaning Sieves

Upper sieve: 1.4 m², lower sieve: 1.13 m², large sieve area for optimum grain cleaning

Straw Walker

4 straw walkers, 4 steps each, 2780 mm length, 175 mm width, large separation area

Grain Tank

1.23 m³, improved auger system for quick unloading, well-designed basket with low grain loss

Reel Assembly

Chain and sprocket drive, hydraulic height adjustment

Fuel Tank

160 L

Features

Large sieve area, hydraulic flow through hose pipes, reliable drive train, faster unloading system, high-capacity hydraulic system, high ground clearance, good maneuverability in wet/soft fields, best quality crop cutting blades, low grain loss basket, Eaton pumps and motors, powder-coated paint, stainless steel chassis

Width

2640 mm (working)

Length

6800 mm (working)

Max Height

3100 mm (working)

Weight

4900 kg (approx.)

Ground Clearance

250 mm
