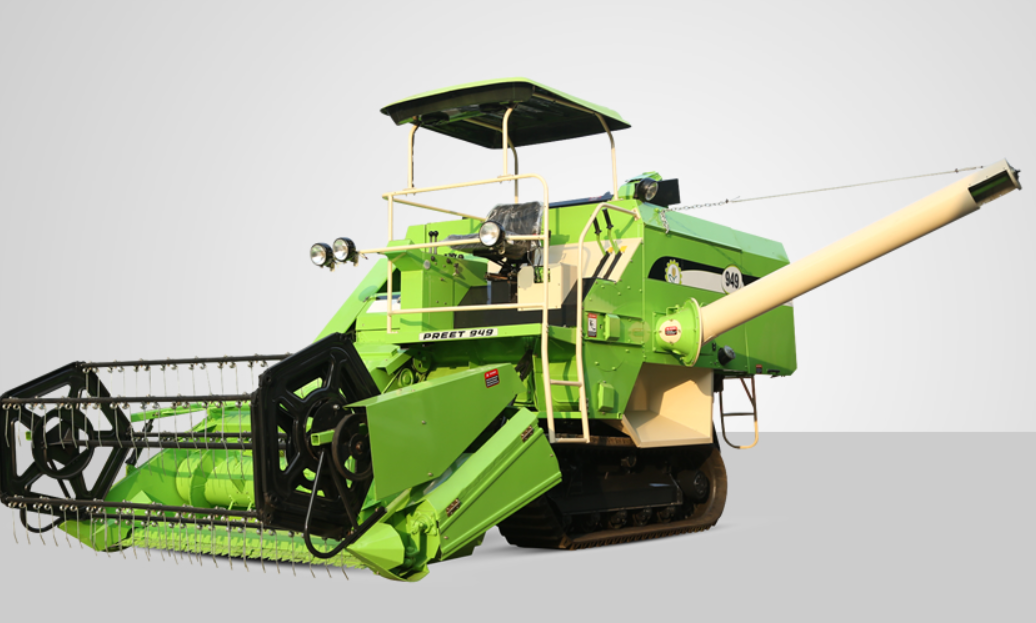

PREET 949 Track Combine Harvester – 76 PS Paddy Harvester
Specifications
|
Specification |
Details |
|
Model |
PREET 949 |
|
Vehicle Category |
Self-Propelled Track Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Paddy |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Ashok Leyland ALUW-04D or PREET 7549 TC, 4-cylinder, water-cooled, dry-type air cleaner |
|
Gross Horsepower |
76 PS @ 2200 RPM |
|
Transmission Type |
Hydrostatic transmission with hydraulic variable displacement, double pump, and two fixed displacement motors |
Wheels & Tyres
|
Specification |
Details |
|
Track Assembly |
Bridgestone tracks, 1830 mm belt length on ground, 1435 mm track width, 450 mm belt width, 5 track rollers per side, 60 rubber grousers per side, 30 mm grouser height |
Components & Features
|
Specification |
Details |
|
Chassis |
Stainless steel chassis, robust structure |
|
Cutter Bar Assembly |
Working width: 2280 mm (7.5 feet), cutting height: 30–1290 mm, chain-type feed rack |
|
Threshing System |
Thresher width: 760 mm, diameter: 600 mm, speed: 585 RPM; Concave length: 770 mm, clearance: front 13–35 mm, rear 9–12 mm, mechanical adjustment |
|
Cleaning Sieves |
Upper sieve: 1.4 m², lower sieve: 1.13 m² |
|
Straw Walker |
4 straw walkers, 4 steps each, 2780 mm length, 175 mm width |
|
Grain Tank |
1.23 m³, improved auger system for quick unloading |
|
Reel Assembly |
Chain and sprocket drive, hydraulic height adjustment |
|
Fuel Tank |
160 L |
|
Features |
Large sieve area, hydraulic flow through hose pipes, reliable drive train, faster unloading system, high-capacity hydraulic system, high ground clearance, good maneuverability in wet/soft fields, best quality crop cutting blades, low grain loss basket, Eaton pumps and motors, powder-coated paint |
|
Width |
2640 mm (working) |
|
Length |
6800 mm (working) |
|
Max Height |
3100 mm (working) |
|
Weight |
4900 kg (approx.) |
|
Ground Clearance |
250 mm |
