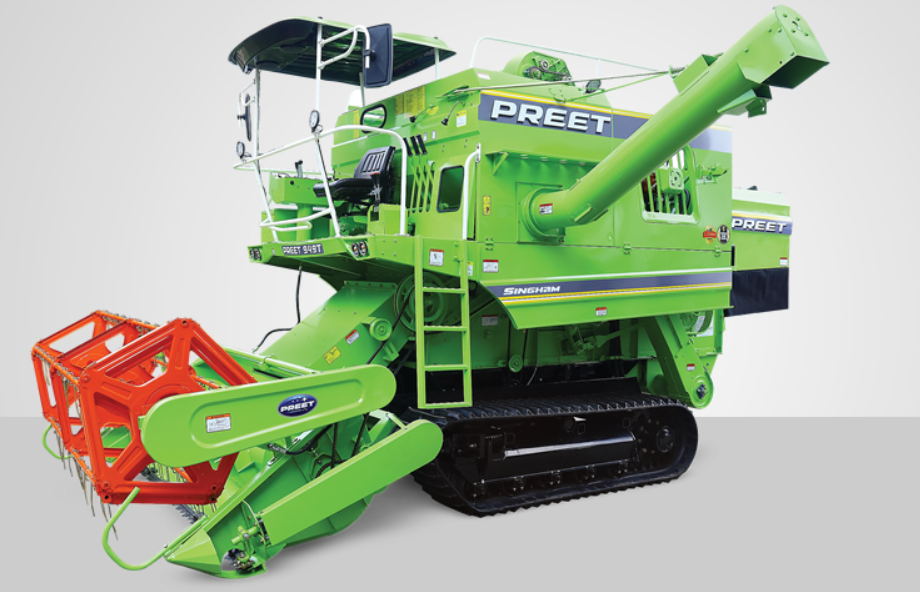

PREET 949 Singham Combine Harvester – 76 HP Paddy Harvester
Specifications
|
Specification |
Details |
|
Model |
PREET 949 Singham |
|
Vehicle Category |
Self-Propelled Track Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Paddy |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4-cylinder, water-cooled, dry-type air cleaner |
|
Gross Horsepower |
76 HP @ 2200 RPM |
|
Transmission Type |
Hydrostatic transmission with hydraulic variable displacement, double pump, and two fixed displacement motors, high-quality Eaton pump and hydraulic motor |
Wheels & Tyres
|
Specification |
Details |
|
Track Assembly |
1830 mm belt length on ground, 1485 mm track width, 450 mm belt width, 5 track rollers per side, 60 rubber grousers per side, 30 mm grouser height, heavy-duty sprocket, wide track rollers, nominal ground pressure: 0.32 kg/cm² |
Components & Features
|
Specification |
Details |
|
Chassis |
Stainless steel components for wear-prone parts |
|

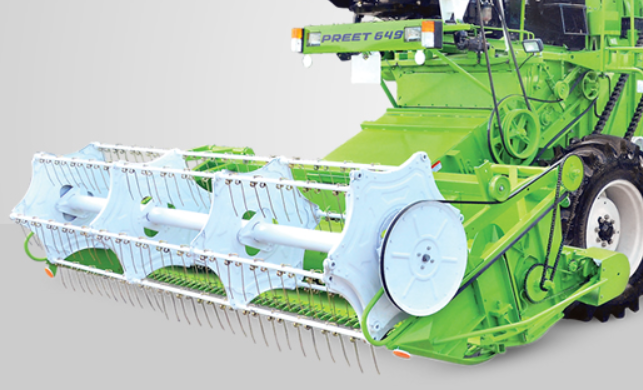

Cutter Bar Assembly |
Working width: 2290 mm (7.5 feet), cutting height: 30–1025 mm, through V-belts, chain-type feed rack, cutter bar safety cylinder |
|
Threshing System |
Thresher width: 760 mm, diameter: 605 mm, speed: 600 RPM; Concave length: 770 mm, clearance: wheat (front 17 mm, rear 6–10 mm), paddy (front/rear 17 mm), mechanical adjustment |
|
Cleaning Sieves |
Upper sieve: 1.2 m², lower sieve: 1.0 m², large cleaning area |
|
Straw Walker |
4 straw walkers, 4 steps each, 2780 mm length, 175 mm width |
|
Grain Tank |
1.2 m³ (approx.), discharge tube with rods and latch assembly for quick engage/disengage |
|
Reel Assembly |
Hydraulic height adjustment, heavy-duty single sheet drawn |
|
Steering |
Forward and reverse levers for front/rear movement control |
|
Fuel Tank |
125 L (approx.) |
|
Features |
Wide crawler for low ground pressure, large and wider operator platform with roof, cushioned driver seat, long-distance focus lights, large cleaning area, new design control panel, prongs adjusting lever, cover for moveable parts, cutter bar safety cylinder, high-quality paint, lightweight for deep paddy conditions, easy-to-open elevators, stainless steel components, heavy-duty sprocket, wide track rollers |
|
Width |
2620 mm |
|
Length |
6800 mm |
|
Max Height |
2900 mm |
|
Weight |
5190 kg (approx.) |
|
Ground Clearance |
370 mm |
