PREET 9049 4WD (NSM) – 4WD Agricultural Tractor by PREET

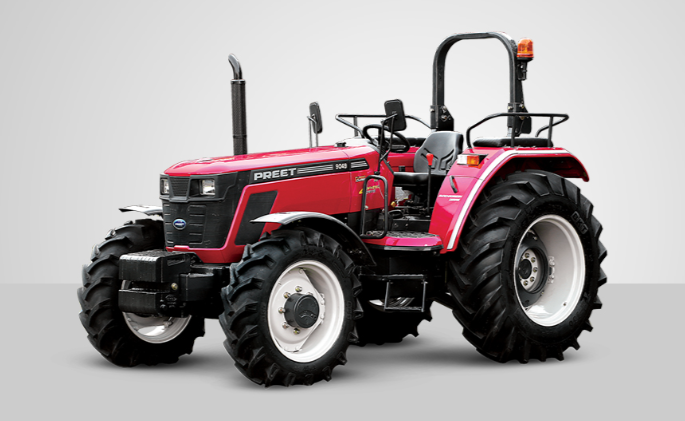

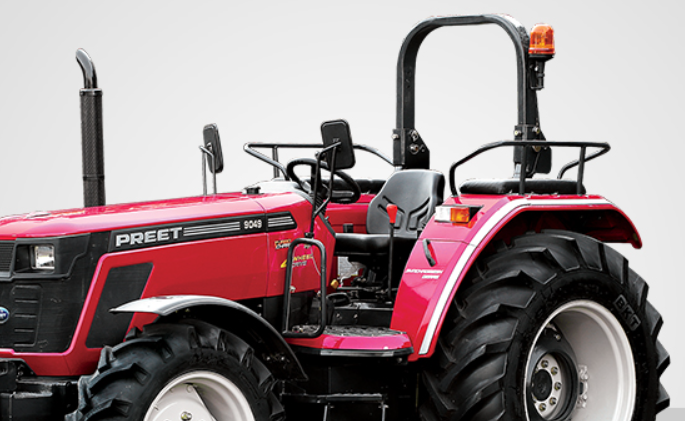

Images:

Specifications

Specification	Details
Number of Engine Cylinders	4
Bore / Stroke	105 / 118 mm
Rated RPM	2200 RPM
Clutch Type	Heavy Duty Dry Dual, 310 mm
Transmission Type	Synchro Mesh
Drive Type	4WD
Number of Gears	12 Forward + 12 Reverse
HP Category	90 HP
Road Speed	Forward: High 11.12-33.87 km/h, Medium 4.19-12.77 km/h, Low 1.65-5.03 km/h; Reverse: High 9.33-28.41 km/h, Medium 3.51-10.71 km/h, Low 1.38-4.22 km/h

Specification	Details
Hydraulics Lifting Capacity	2400 kg
PTO Speed	540 and 1000 RPM
Fuel Tank Capacity	67 L
Engine Sump Capacity	11 L
Cooling System Capacity	10 L
Transmission & Hydraulic Capacity	35 L
Steering System Capacity	2 L
Hydraulic System Type	2 Lever, ADDC
Hydraulic Pump	Gear Type
Linkage	TPL Category-II
Weight	2800 kg
Battery	12V, 100Ah
Alternator	12V, 42A
Starter Motor	12V, 2.7 kW
Front Drive Axle Differential	Limited Slip
Front Drive Axle Bevel Ratio	1:2.133
Front Drive Axle Hub Ratio	1:6
Front Drive Axle Total Ratio	1:12.8
Front Drive Axle Diff. Oil Capacity	5.5 ±10% L
Front Drive Axle Hub Oil Capacity	0.6 ±15% L each side
Electronic Meter	Electronic meter
Mobile Charger Point	Mobile charger point
Power Steering	Power steering
Big Air Cleaner	Big air cleaner with clogging sensor
Aero Dynamic Bonnet	Aero dynamic bonnet
Oil Immersed Brake	Oil immersed brake
Multi Speed PTO	Multi speed PTO
12+12 Reverse / Forward Speed	12+12 reverse / forward speed
Carraro Transmission	Carraro transmission
Differential Lock	Differential lock
540/1000 PTO	540/1000 PTO
Liftomatic Lift	Liftomatic lift
Big Platform	Big platform

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
