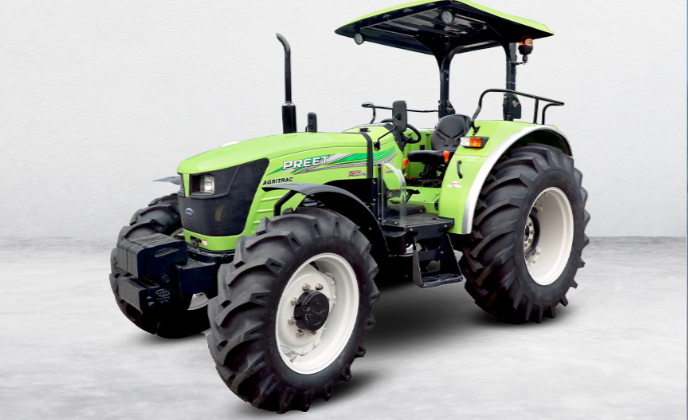

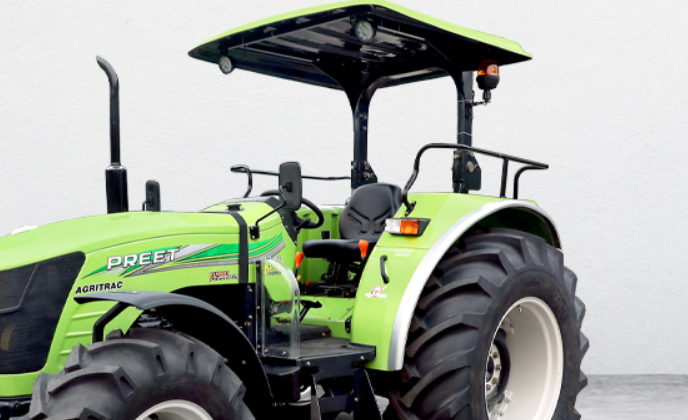

PREET 9049 4WD – 4WD Agricultural Tractor by PREET
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 9049 4WD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
4 |
|
Bore / Stroke |
105/118 mm |
|
Rated RPM |
2200 RPM |
|
Clutch Type |
Heavy Duty Dry Dual, 310 mm |
|
Transmission Type |
Synchro Mesh |
|
Drive Type |
4WD |
|
Number of Gears |
12 Forward + 12 Reverse |
|
HP Category |
90 HP |
|
Road Speed |
Forward: High 11.12-33.87 km/h, Medium 4.19-12.77 km/h, Low 1.65-5.03 km/h; Reverse: High 9.33-28.41 km/h, Medium 3.51-10.71 km/h, Low 1.38-4.22 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi Disc Oil Immersed |
|
Steering Type |
Power Steering |
|
Min. Turning Radius |
3.9 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
12.4 - 24 inch |
|
Rear Tyres |
18.4 - 30 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
2400 kg |
|
PTO Speed |
540 and 1000 RPM |
|
Fuel Tank Capacity |
67 L |
|
Engine Sump Capacity |
11 L |
|
Cooling System Capacity |
10 L |
|
Transmission & Hydraulic Capacity |
35 L |
|
Steering System Capacity |
2 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category-II |
|
Weight |
2800 kg |
|
Battery |
12V, 100Ah |
|
Alternator |
12V, 42A |
|
Starter Motor |
12V, 2.7 kW |
|
Front Drive Axle Differential |
Limited Slip |
|
Front Drive Axle Bevel Ratio |
1:2.133 |
|
Front Drive Axle Hub Ratio |
1:6 |
|
Front Drive Axle Total Ratio |
1:12.8 |
|
Front Drive Axle Diff. Oil Capacity |
5.5 ±10% L |
|
Front Drive Axle Hub Oil Capacity |
0.6 ±15% L each side |
|
Carraro Synchronisation Transmission |
Carraro synchronisation transmission |
|
Carraro Front Axle |
Carraro front axle |
|
ABC Speed 12+12 |
ABC speed 12+12 |
|
2600 KG Liftomatic Hypersensitive Powerful Lift |
2600 kg liftomatic hypersensitive powerful lift |
|
Aerodynamic Bonnet |
Aerodynamic bonnet |
|
Extra Leg Space |
Extra leg space |
|
Reverse Speed = Forward Speed |
Reverse speed = forward speed |
|
Multi Speed PTO & Ground PTO 540/1000 |
Multi speed PTO & ground PTO 540/1000 |
|
Power Steering |
Power steering |
|
Bonnet Lock with Key |
Bonnet lock with key |
|
Electronic Meter |
Electronic meter |
|
Planetary Oil Immersed Brakes |
Planetary oil immersed brakes |
|
Dry Air Cleaner |
Dry air cleaner with clogging sensor |
|
Mobile Charger Point |
Mobile charger point |
|
Extra Radiator Coolant |
Extra radiator coolant |
