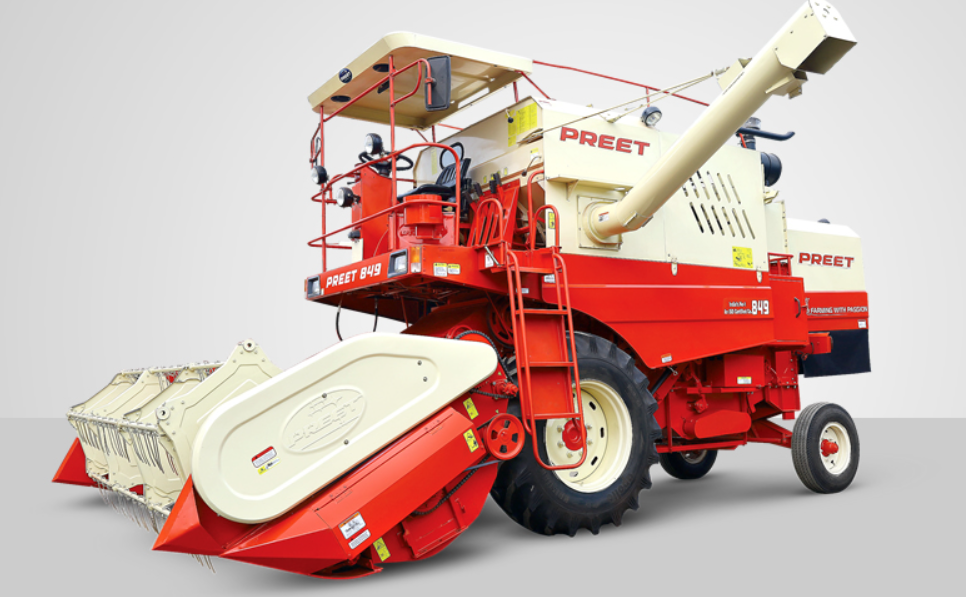

PREET 849 Self Propelled Multicrop Combine Harvester – 76 PS Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
PREET 849 |
|
Vehicle Category |
Self-Propelled Multicrop Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Wheat, paddy, maize, red gram, soybean, sunflower, mustard, grams, arhar, moong |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
ALUW-04D, 4-cylinder, water-cooled, dry-type air cleaner |
|
Gross Horsepower |
76 PS @ 2200 RPM |
|
Transmission Type |
Heavy-duty gearbox, 3 forward, 1 reverse |
|
Gear Speeds (km/hr @ 1800 RPM) |
1st: 2–3.2, 2nd: 4.7–7, 3rd: 11.5–17.5; Reverse: 5.2–8 |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil-immersed brake system |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
16.9-28, 12 PR |
|
Rear Wheels |
7.50-16, 12 PR |
Components & Features
|
Specification |
Details |
|
Chassis |
Heavy-duty, long durable, robust structure |
|

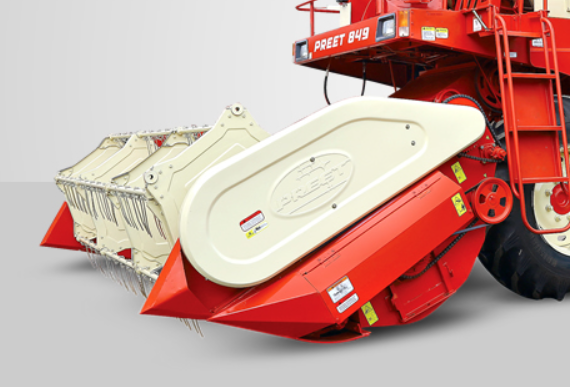

Cutter Bar Assembly |
Working width: 3430 mm (11.25 feet) for wheat/paddy/others, 2210 mm (7.25 feet) for maize, cutting height: 30–1290 mm, 29 blades, 29 guards, 85 mm stroke, chain-type feed rack, 4 rows for maize (spacing: 610 mm) |
|
Threshing System |
Thresher width: 890 mm, diameter: 605 mm, speed range: 540–1200 RPM (mechanical variator); Concave length: 790 mm, clearance: wheat (front 17 mm, rear 6–10 mm), paddy (front/rear 17 mm), maize (front/rear 19 mm) |
|
Cleaning Sieves |
Upper sieve: 1.4 m², lower sieve: 1.2 m², large sieve area for optimum grain cleaning |
|
Straw Walker |
4 straw walkers, 4 steps each, 2500 mm length, 210 mm width, long length for complete straw exit |
|
Grain Tank |
1.7 m³ |
|
Reel Assembly |
Chain and sprocket drive, hydraulic height adjustment, 30–40 RPM |
|
Clutch |
Single, heavy-duty dry clutch, 310 mm diameter |
|
Steering |
Hydraulic power steering, small turning radius |
|
Fuel Tank |
160 L |
|
Features |
Small cutter bar for small fields, cushioned adjustable driver seat, broader canopy, long-distance focus light, large sieve area, long straw walkers, stainless steel auger casing and elevators, UCF bearings, easy-to-open elevators, high-quality paint, robust structure, oil-immersed brakes |
|
Width |
3800 mm (working), 2460 mm (transportation) |
|
Length |
7280 mm (working), 10370 mm (transportation) |
|
Max Height |
3330 mm (working and transportation) |
|
Weight |
6460 kg (approx.) |
|
Ground Clearance |
380 mm |
