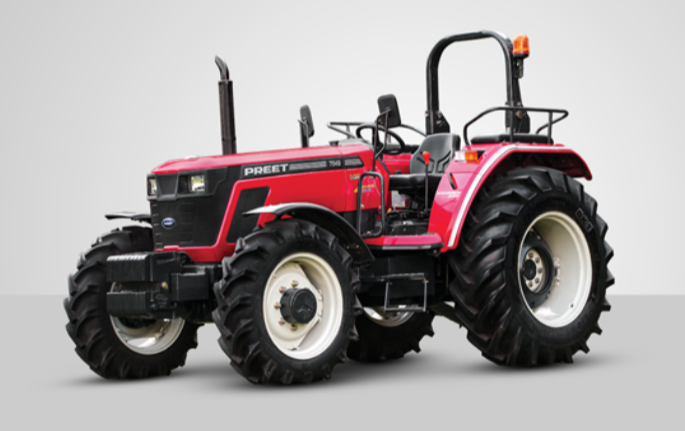

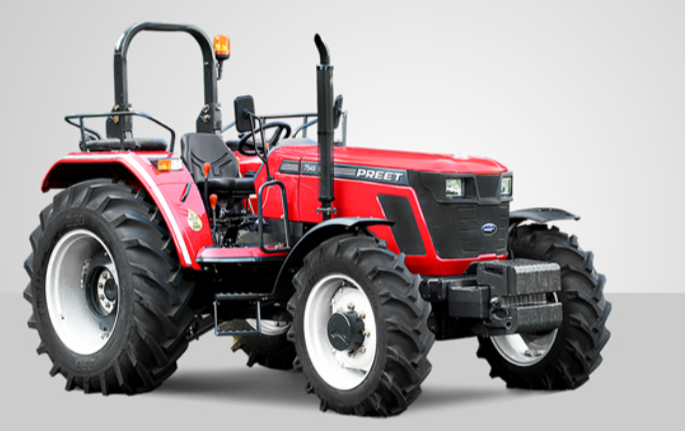

PREET 7549 4WD (NSM) – 4WD Agricultural Tractor by PREET
 1.png)
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 7549 4WD (NSM) |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
4 |
|
Bore / Stroke |
105 / 118 mm |
|
Rated RPM |
2200 RPM |
|
Clutch Type |
Heavy Duty, Dry Type Dual clutch, 310 mm |
|
Transmission Type |
Synchromesh |
|
Drive Type |
4WD |
|
Number of Gears |
12 Forward + 12 Reverse |
|
HP Category |
75 HP |
|
Road Speed |
Forward: High 10.73-32.69 km/h, Medium 4.04-12.33 km/h, Low 1.59-4.85 km/h; Reverse: High 9.00-27.42 km/h, Medium 3.39-10.34 km/h, Low 1.33-4.07 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi Disc Oil Immersed |
|
Steering Type |
Power Steering |
|
Min. Turning Radius |
3.8 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
11.2 - 24 inch |
|
Rear Tyres |
16.9 - 30 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
2400 kg |
|
PTO Speed |
540 and 1000 |
|
Fuel Tank Capacity |
67 L |
|
Engine Sump Capacity |
11 L |
|
Cooling System Capacity |
9.5 L |
|
Transmission & Hydraulic Capacity |
35 L |
|
Steering System Capacity |
2 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category II |
|
Weight |
2630 kg |
|
Battery |
12V, 100Ah |
|
Alternator |
12V, 42A |
|
Starter Motor |
12V, 2.7 kW |
|
Front Drive Axle Differential |
Limited Slip |
|
Front Drive Axle Bevel Ratio |
1:2.133 |
|
Front Drive Axle Hub Ratio |
1:6 |
|
Front Drive Axle Total Ratio |
1:12.8 |
|
Front Drive Axle Diff. Oil Capacity |
5.5 ±10% L |
|
Front Drive Axle Hub Oil Capacity |
0.6 ±15% L each side |
