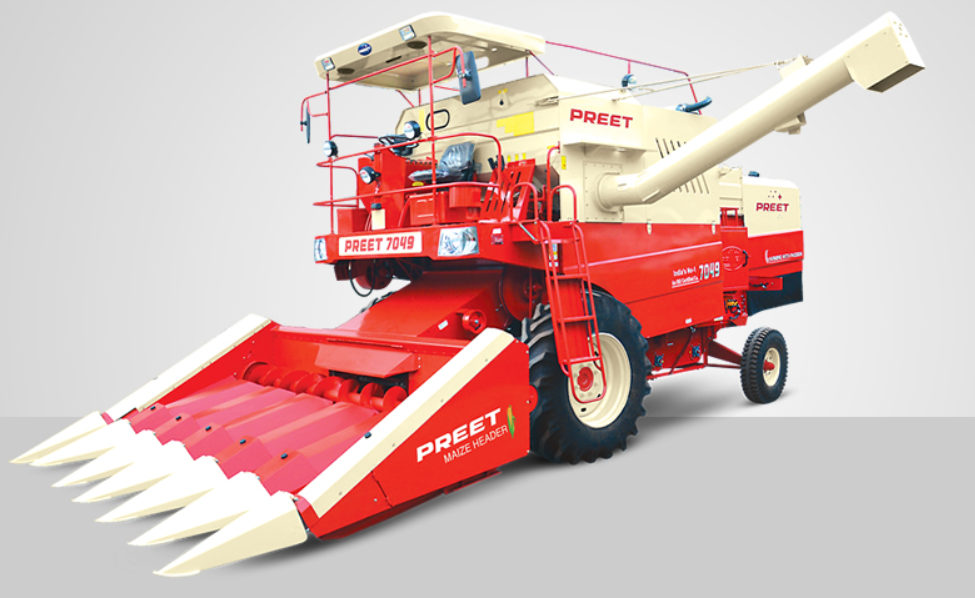

PREET 7049 Maize Special Self Propelled Combine Harvester – 101 HP Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
PREET 7049 Maize Special |
|
Vehicle Category |
Self-Propelled Multicrop Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Wheat, paddy, maize, soybean, sunflower, mustard |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6-cylinder, water-cooled, dry air cleaner, rotating sieve for engine cooling |
|
Gross Horsepower |
101 HP @ 2200 RPM |
|
Transmission Type |
Heavy-duty gearbox, 3 forward, 1 reverse (4 forward, 1 reverse in some configurations), collar shift gears, single lever gear shifting |
|
Gear Speeds (km/hr) |
Low: 1st: 1.8–2.9, 2nd: 4–6.4, 3rd: 7.25–11.6, 4th: 15.9–25.5; High: 1st: 2–3.7, 2nd: 5.1–8.3, 3rd: 12.8–20.5; Reverse: 5.3–8.4 |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil-immersed brake system |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
18.4-30, 12 PR or 14 PR |
|
Rear Wheels |
9.00-16, 16 PR |
Components & Features
|
Specification |
Details |
|
Chassis |
Heavy-duty, long durable, robust structure, stainless steel components for wear-prone parts |
|

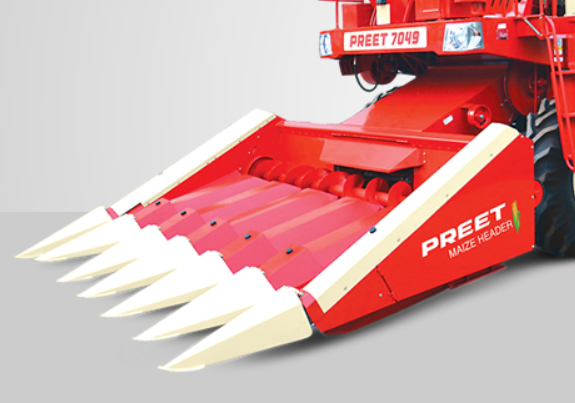

Cutter Bar Assembly |
Working width: 4300 mm (14 feet) for wheat/paddy/others, 3100/3400/3100 mm for maize, cutting height: 65–1275 mm, 58 blades, 29 guards, 85 mm stroke, chain-type feed rack, 5/6/7 rows for maize (spacing: 457.2 mm, 609.6 mm, 762 mm), stalk rollers with sharp hardened edge blades |
|
Threshing System |
Thresher width: 1250 mm (1265 mm for paddy), diameter: 605 mm, speed range: 540–1200 RPM (mechanical variator); Concave clearance: wheat (front 17 mm, rear 6–10 mm), paddy (front/rear 17 mm), maize (front/rear 19 mm) |
|
Cleaning Sieves |
Upper sieve: 2.42 m², lower sieve: 1.77 m², large sieve area for optimum grain cleaning |
|
Straw Walker |
5 straw walkers, 5 steps each, 3770 mm length, 235 mm width, long length for complete straw exit |
|
Grain Tank |
2.5 m³, hydraulically operated discharge tube |
|
Reel Assembly |
915 mm diameter, 20–55 RPM |
|
Clutch |
Single, heavy-duty dry clutch, 330 mm diameter |
|
Steering |
Hydraulic power steering, small turning radius |
|
Fuel Tank |
365 L |
|
Features |
Well-designed header, cushioned adjustable driver seat, oil-immersed brakes, large sieve area, long straw walkers, stainless steel auger casing, UCF bearings, easy-to-open elevators, high-quality paint, robust structure, hydraulically operated discharge tube, rotating sieve for engine cooling |
|
Width |
3850 mm (working), 3035 mm (transportation) |
|
Length |
9175 mm (working), 11550 mm (transportation) |
|
Max Height |
3850 mm (working and transportation) |
|
Weight |
9450 kg (approx.) |
|
Ground Clearance |
370 mm |
