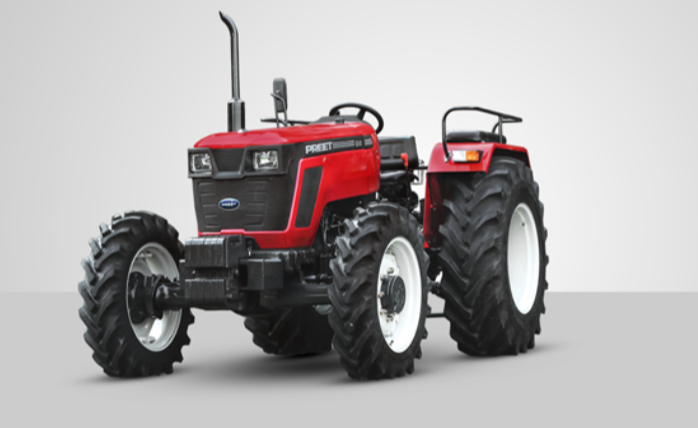

PREET 6549 4WD (NSM) – 4WD Agricultural Tractor by PREET
 1.png)
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 6549 |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
4 |
|
Bore / Stroke |
105 / 118 mm |
|
Rated RPM |
2200 r/min |
|
Clutch Type |
Heavy Duty DC, Dia 280 mm |
|
Transmission Type |
Synchromesh |
|
Drive Type |
4WD |
|
Number of Gears |
12 Forward + 12 Reverse |
|
Power Range |
65 HP |
|
Road Speed |
Forward: High 10.35-31.52 km/h, Medium 3.90-11.88 km/h, Low 1.53-4.68 km/h; Reverse: High 8.68-26.43 km/h, Medium 3.27-9.96 km/h, Low 1.29-3.92 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi Disc Oil Immersed |
|
Steering Type |
Power Steering |
|
Min. Turning Radius |
4 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
9.5 - 24 inch |
|
Rear Tyres |
16.9 - 28 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
2400 kg |
|
PTO RPM |
540 and 1000 |
|
Fuel Tank Capacity |
67 L |
|
Engine Sump Capacity |
11 L |
|
Cooling System Capacity |
9.5 L |
|
Transmission & Hydraulic Capacity |
35 L |
|
Steering System Capacity |
2 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category II |
|
Battery |
12V, 100Ah |
|
Alternator |
12V, 42A |
|
Starter Motor |
12V, 2.7 kW |
|
Bonnet Lock with Key |
Bonnet lock with key |
|
Electronic Meter |
Electronic meter |
|
Mobile Charger Point |
Mobile charger point |
|
Power Steering (Optional) |
Optional power steering |
|
Big Air Cleaner |
Large air cleaner |
|
Aero Dynamic Bonnet |
Aero dynamic bonnet |
|
Oil Immersed Brake |
Oil immersed brake |
|
Multi Speed PTO & Reverse PTO |
Multi speed and reverse PTO |
|
Front Drive Axle Differential |
Limited Slip |
|
Front Drive Axle Bevel Ratio |
1:2.133 |
|
Front Drive Axle Hub Ratio |
1:6 |
|
Front Drive Axle Total Ratio |
1:12.8 |
|
Front Drive Axle Diff. Oil Capacity |
5.5 ± 10% L |
|
Front Drive Axle Hub Oil Capacity |
0.6 ± 15% L each side |
|
Weight |
2530 kg |
