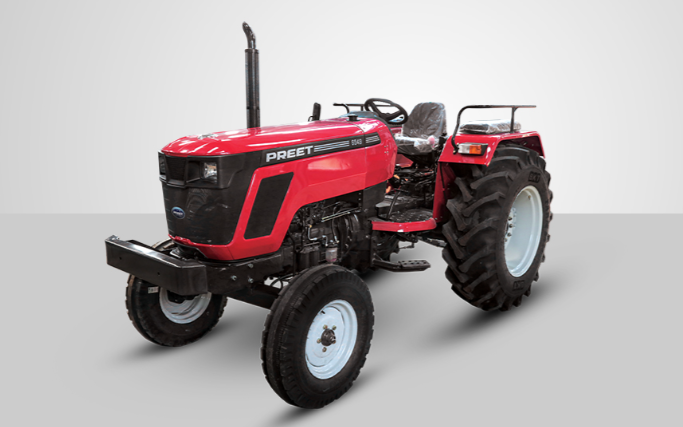

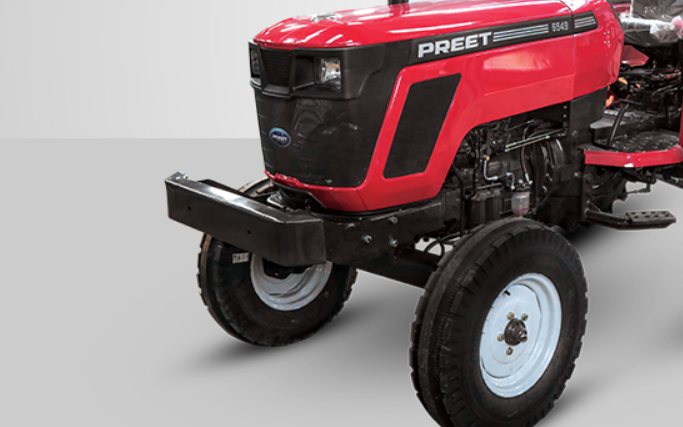

PREET 6549 2WD (NSM) – 2WD Agricultural Tractor by PREET
 1.png)
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 6549 2WD (NSM) |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
4 |
|
Bore / Stroke |
105 / 118 mm |
|
Rated RPM |
2200 RPM |
|
Clutch Type |
Heavy Duty, Dry Type Dual Clutch, 280 mm, Cerametallic Friction |
|
Transmission Type |
Synchromesh |
|
Drive Type |
2WD |
|
Number of Gears |
12 Forward + 12 Reverse |
|
HP Category |
65 HP |
|
Road Speed |
Forward: High 10.35-31.52 km/h, Medium 3.90-11.88 km/h, Low 1.53-4.68 km/h; Reverse: High 8.68-26.43 km/h, Medium 3.27-9.96 km/h, Low 1.29-3.92 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi Disc Oil Immersed |
|
Steering Type |
Power Steering |
|
Min. Turning Radius |
3.75 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.50 - 16 inch |
|
Rear Tyres |
16.9 - 28 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
2400 kg |
|
PTO Speed |
540 and 1000 RPM |
|
Fuel Tank Capacity |
67 L |
|
Engine Sump Capacity |
10 L |
|
Cooling System Capacity |
9.5 L |
|
Transmission & Hydraulic Capacity |
55 L |
|
Steering System Capacity |
2 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category II |
|
Weight |
2320 kg (W/O ROPS) |
|
Overall Length |
3800 mm |
|
Width |
1930 mm |
|
Height up to Exhaust |
2280 mm |
|
Ground Clearance |
415 mm |
|
Wheel Base |
2260 mm |
|
Front Track |
1425 mm |
|
Rear Track |
1480 mm |
|
Battery |
12V, 100Ah |
|
Alternator |
12V, 42A |
|
Starter Motor |
12V, 2.7 kW |
|
Electronic Meter |
Electronic meter |
|
Mobile Charger Point |
Mobile charger point |
|
Power Steering |
Power steering |
|
Big Air Cleaner |
Big air cleaner |
|
Aero Dynamic Bonnet |
Aero dynamic bonnet |
|
Oil Immersed Brake |
Oil immersed brake |
|
Multi Speed PTO |
Multi speed PTO |
|
12+12 Reverse / Forward Speed |
12+12 reverse / forward speed |
|
Differential Lock |
Differential lock |
|
540/1000 PTO |
540/1000 PTO |
|
Liftomatic Lift |
Liftomatic lift |
|
Big Platform |
Big platform |
