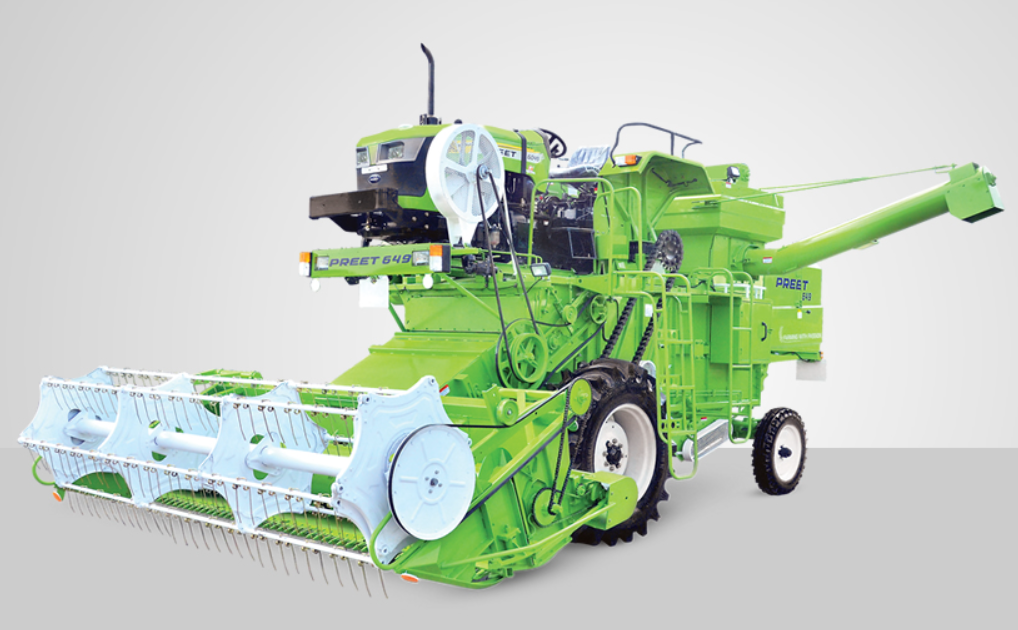

PREET 649 Tractor Mounted Combine Harvester – 60/75 HP Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
PREET 649 TMC |
|
Vehicle Category |
Tractor Mounted Multicrop Combine Harvester |
|
Fuel Type |
Diesel (via tractor) |
|
Application |
Paddy, wheat |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Tractor-powered, 4-cylinder, dry-type air cleaner |
|
Gross Horsepower |
60/75 HP (tractor-dependent) |
|
Transmission Type |
Tractor-driven, single-stage or double-stage reduction option |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
16.9-28, 12 PR |
|
Rear Wheels |
6.5-20, 8 PR |
Components & Features
|
Specification |
Details |
|
Cutter Bar Assembly |
Working width: 3650 mm (12 feet), cutting height: 60–1350 mm, 49 blades, 24 guards, 86 mm stroke, chain-type feed rack, best quality crop cutting blades |
|
Threshing System |
Thresher width: 1140 mm, diameter: 605 mm, speed: 650 RPM; Concave length: 770 mm, clearance: wheat (front 17 mm, rear 6–10 mm), paddy (front/rear 17 mm), mechanical adjustment, long-length thresher rotor |
|
Cleaning Sieves |
Upper sieve: 1.8 m², lower sieve: 1.2 m², large sieve area for optimum grain cleaning |
|
Straw Walker |
5 straw walkers, 5 steps each, 3600 mm length, 210 mm width, autonomous rethreshing unit |
|
Grain Tank |
1.15 m³, improved auger system for quick unloading |
|
Reel Assembly |
915 mm diameter, 30 RPM |
|
Features |
Large sieve area, faster unloading system, high-capacity hydraulic system, high ground clearance, modern operational efficiency, good maneuverability in wet/soft fields, best quality crop cutting blades, long-length thresher rotor, autonomous rethreshing unit, single-stage/double-stage reduction options |
|
Width |
5250 mm (working), 2580 mm (transportation) |
|
Length |
8400 mm (working), 11000 mm (transportation) |
|
Max Height |
3850 mm (working and transportation) |
|
Weight |
7010 kg (approx.) |
|
Ground Clearance |
500 mm |
