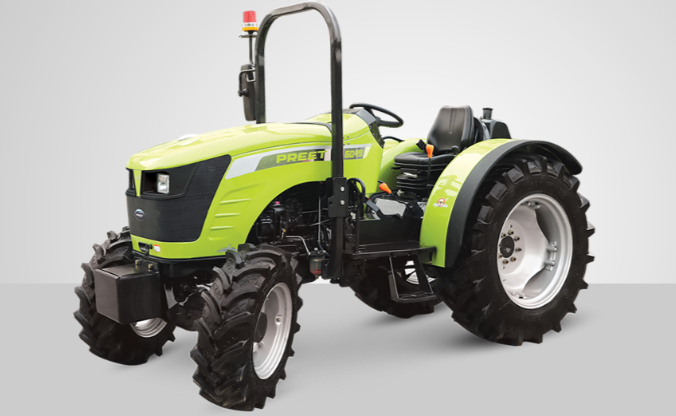

PREET 6049 4WD Narrow Track – 4WD Agricultural Tractor (Narrow Track) by PREET

Images:

Specifications

Specification	Details
Tractor Model	PREET 6049
Vehicle Category	4WD Tractor
Fuel Type	Diesel
Application	4WD Agricultural Tractor (Narrow Track)

Specification	Details
Number of Engine Cylinders	3
Bore / Stroke	105 / 118 mm
Rated RPM	2200 r/min
Clutch Type	Heavy Duty Dry Type Dual, Dia 310 mm, Cerametalic Friction
Transmission Type	Synchromesh
Drive Type	4WD
Number of Gears	12 Forward + 12 Reverse
Power Range	60 HP
Road Speed	Forward: High 9.81-30.00 km/h, Medium 2.22-6.79 km/h, Low 0.48-1.48 km/h; Reverse: High 8.34-22.95 km/h, Medium 1.89-5.20 km/h, Low 0.41-1.13 km/h

Specification	Details
Hydraulics Lifting Capacity	2400 kg
PTO RPM	540 and 540E
Fuel Tank Capacity	67 L
Engine Sump Capacity	11 L
Cooling System Capacity	10 L
Transmission & Hydraulic Capacity	35 L
Steering System Capacity	Common with Transmission
Hydraulic System Type	2 Lever, ADDC
Hydraulic Pump	Gear Type
Linkage	TPL Category II
Battery	12V, 88Ah
Alternator	12V, 42A
Starter Motor	12V, 2.7 kW
Synchro Mesh 12+12	Synchro mesh 12+12
Aerodynamic Bonnet	Aero dynamic bonnet
Auxiliary Valve	Auxiliary valve
Power Steering (Optional)	Optional power steering
Oil Immersed Brake	Oil immersed brake
Reverse PTO	Reverse PTO
Electronic Meter	Electronic meter
Mobile Charger Point	Mobile charger point
Bonnet Lock with Key	Bonnet lock with key
Front Drive Axle Differential	Limited Slip
Front Drive Axle Total Ratio	1:12.8
Front Drive Axle Oil Capacity	5.6 ± 15% L
Overall Length	4200 mm
Width	1455 mm
Height up to Exhaust	2400 mm
Ground Clearance	300 mm
Wheel Base	2216 mm
Front Track	1208 mm
Rear Track	1075 mm
