Specification

Details

Tractor Model

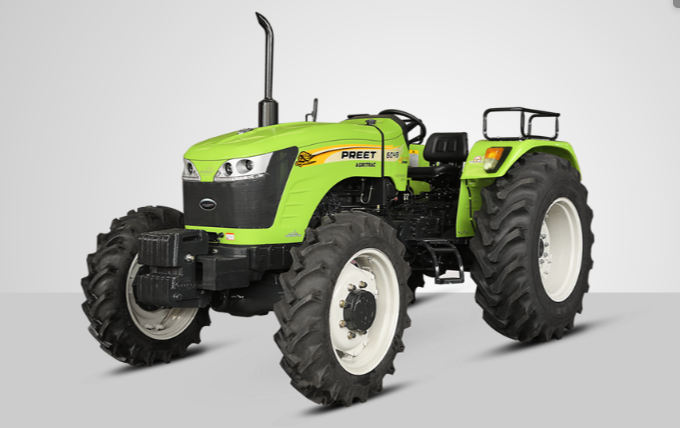

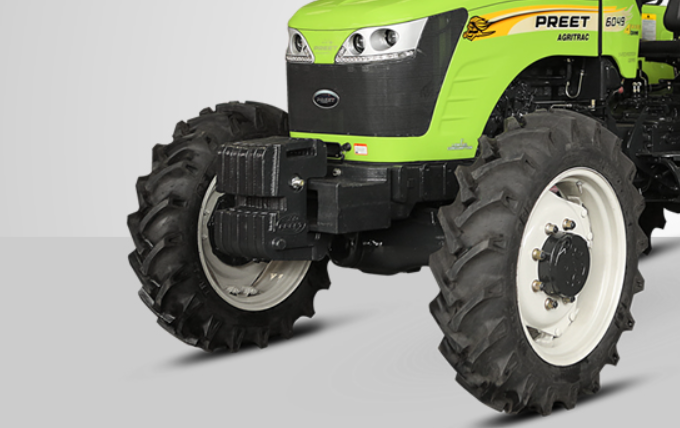

PREET 6049 4WD

Vehicle Category

4WD Tractor

Fuel Type

Diesel

Application

4WD Agricultural Tractor

Specification

Details

Number of Engine Cylinders

4

Bore / Stroke

105/118 mm

Rated RPM

2200 RPM

Clutch Type

Heavy Duty DC, 280 mm

Transmission Type

Synchro Mesh

Drive Type

4WD

Number of Gears

12 Forward + 12 Reverse

HP Category

60 HP

Road Speed

Forward: High 10.35-31.52 km/h, Medium 3.90-11.88 km/h, Low 1.53-4.68 km/h; Reverse: High 8.68-26.43 km/h, Medium 3.27-9.96 km/h, Low 1.29-3.92 km/h

Specification

Details

Brake Type

Multi Disc Oil Immersed

Steering Type

Power Steering

Min. Turning Radius

4 m

Specification

Details

Front Tyres

9.5 - 24 inch

Rear Tyres

16.9 - 28 inch

Specification

Details

Hydraulics Lifting Capacity

2400 kg

PTO Speed

540 and 1000

Fuel Tank Capacity

67 L

Engine Sump Capacity

11 L

Cooling System Capacity

9.5 L

Transmission & Hydraulic Capacity

35 L

Steering System Capacity

2 L

Hydraulic System Type

2 Lever, ADDC

Hydraulic Pump

Gear Type

Linkage

TPL Category-II

Weight

2530 kg

Battery

12V, 100Ah

Alternator

12V, 42A

Starter Motor

12V, 2.7 kW

Front Drive Axle Differential

Limited Slip

Front Drive Axle Bevel Ratio

1:2.133

Front Drive Axle Hub Ratio

1:6

Front Drive Axle Total Ratio

1:12.8

Front Drive Axle Hub Oil Capacity

0.6 ±15% L each side

Bonnet Lock with Key

Bonnet lock with key

Electronic Meter

Electronic meter

Mobile Charger Point

Mobile charger point

Power Steering

Power steering

Big Air Cleaner

Big air cleaner

Aero Dynamic Bonnet

Aero dynamic bonnet

Oil Immersed Brake

Oil immersed brake

Multi Speed PTO & Reverse PTO

Multi speed PTO & reverse PTO
