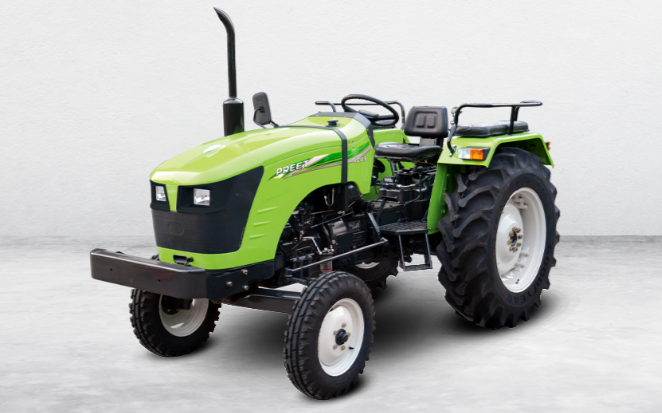

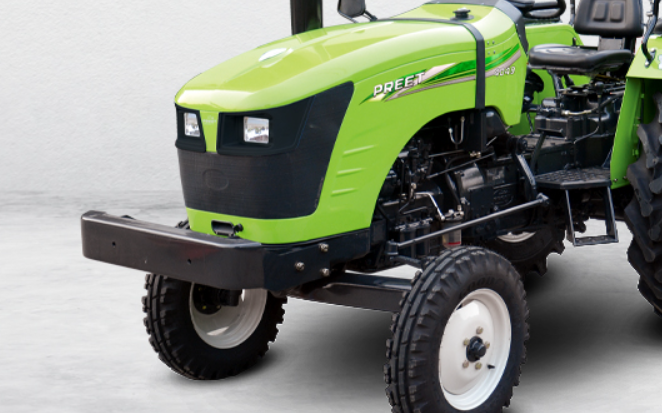

PREET 4049 2WD – 2WD Agricultural Tractor by PREET
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 4049 2WD |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Bore / Stroke |
102/118 mm |
|
Rated RPM |
2200 RPM |
|
Clutch Type |
Heavy Duty Dry Single, 280 mm (Dual Optional) Cerametallic Plates |
|
Transmission Type |
Combination of Constant & Sliding Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
HP Category |
40 HP |
|
Road Speed |
Forward: High 9.90-31.90 km/h, Low 2.51-8.10 km/h; Reverse: Low 3.52 km/h, High 13.86 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi Disc Dry Type Mech. / Wet Optional |
|
Steering Type |
Mechanical / Power Steering Optional |
|
Min. Turning Radius |
3.35 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 - 16 inch |
|
Rear Tyres |
13.6 - 28 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1800 kg |
|
PTO Speed |
540 |
|
Fuel Tank Capacity |
67 L |
|
Engine Sump Capacity |
8 L |
|
Cooling System Capacity |
8.5 L |
|
Transmission & Hydraulic Capacity |
55 L |
|
Steering System Capacity |
0.5 L (Mechanical), 2 L (Power Steering) |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category-II |
|
Weight |
2050 kg |
|
Overall Length |
3700 mm |
|
Width |
1765 mm |
|
Height up to Exhaust |
2255 mm |
|
Ground Clearance |
410 mm |
|
Bonnet Lock with Key |
Bonnet lock with key |
|
Electronic Meter |
Electronic meter |
|
Mobile Charger Point |
Mobile charger point |
|
Power Steering (Optional) |
Optional power steering |
|
Big Air Cleaner |
Large air cleaner |
|
Aerodynamic Bonnet |
Aerodynamic bonnet |
|
Oil Immersed Brake |
Oil immersed brake |
|
Multi Speed PTO & Reverse PTO |
Multi speed and reverse PTO |
