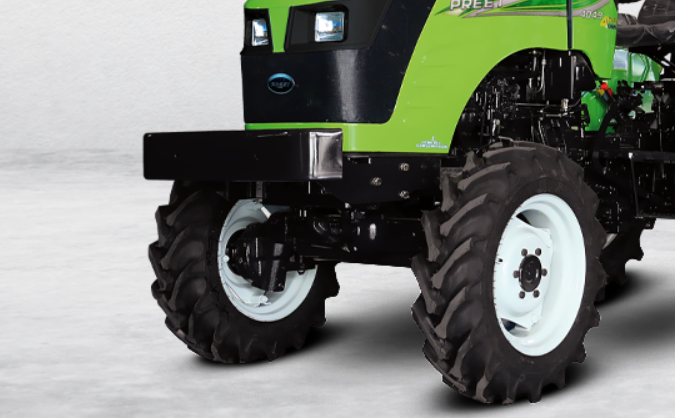

PREET 3549 4WD – 4WD Agricultural Tractor by PREET
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 3549 4WD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Bore / Stroke |
100/118 mm |
|
Rated RPM |
2100 RPM |
|
Clutch Type |
Heavy Duty, Dry Type Single clutch, 280 mm, Cerametalic Friction |
|
Transmission Type |
Combination of Sliding & Constant Mesh |
|
Drive Type |
4WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
HP Category |
35 HP |
|
Road Speed |
Forward: High 8.40-27.05 km/h, Low 2.13-6.87 km/h; Reverse: High 11.76 km/h, Low 2.98 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Dry Disc (Oil Immersed Optional) |
|
Steering Type |
Power Steering / Mechanical |
|
Min. Turning Radius |
3.5 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
8.00 - 18 inch |
|
Rear Tyres |
13.6 - 28 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1800 kg |
|
PTO Speed |
540 |
|
Fuel Tank Capacity |
67 L |
|
Engine Sump Capacity |
8 L |
|
Cooling System Capacity |
8.5 L |
|
Transmission & Hydraulic Capacity |
55 L |
|
Steering System Capacity |
2 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category I-II |
|
Weight |
2050 kg |
|
Overall Length |
3700 mm |
|
Width |
1740 mm |
|
Height up to Exhaust |
2250 mm |
|
Ground Clearance |
350 mm |
|
Wheel Base |
2090 mm |
|
Front Track |
1330 mm |
|
Rear Track |
1390 mm |
|
Battery |
12V, 88Ah |
|
Alternator |
12V, 42A |
|
Starter Motor |
12V, 2.7 kW |
|
Front Drive Axle Differential |
Limited Slip |
|
Front Drive Axle Total Ratio |
1:13.98 |
|
Front Drive Axle Oil Capacity |
5.9±10% L |
|
Electronic Meter |
Electronic meter |
|
Mobile Charger Point |
Mobile charger point |
|
Power Steering |
Power steering |
|
Big Air Cleaner |
Big air cleaner |
|
Aerodynamic Bonnet |
Aerodynamic bonnet |
|
Oil Immersed Brake (Optional) |
Oil immersed brake (optional) |
|
Multi Speed PTO & Reverse PTO |
Multi speed PTO & reverse PTO |
