PREET 3549 2WD (NSM) – 2WDAgricultural Tractor by PREET

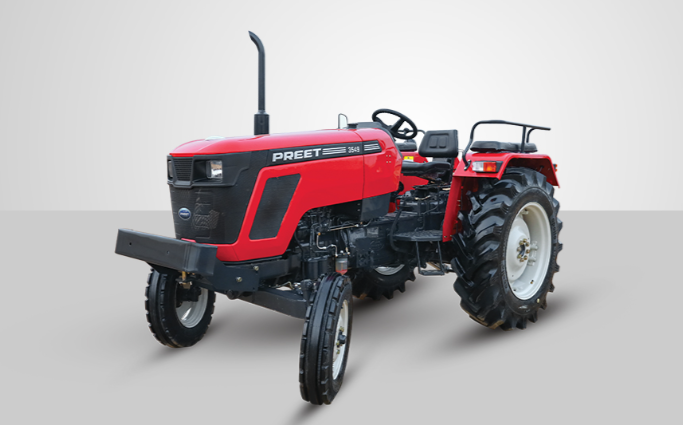

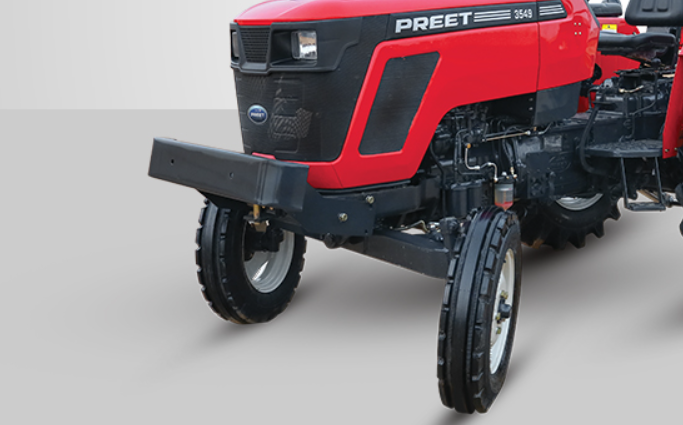

Images:

1

2

Specifications

Specification	Details
Tractor Model	PREET 3549 2WD
Vehicle Category	2WD Tractor
Fuel Type	Diesel
Application	2WD Agricultural Tractor

Frame & Drivetrain

Specification	Details
Number of Engine Cylinders	3
Bore / Stroke	100 / 118 mm
Rated RPM	2100 RPM
Clutch Type	Heavy Duty Dry Single, 280 mm
Transmission Type	Sliding Mesh
Drive Type	2WD
Number of Gears	8 Forward + 2 Reverse
HP Category	35 HP
Road Speed	Forward: High 9.45-30.45 km/h, Low 2.40-7.73 km/h; Reverse: Low 3.36 km/h, High 13.23 km/h

Suspension & Brakes

Specification	Details
Brake Type	Multi Disc Dry Type Mech. / Wet Optional
Steering Type	Mechanical / Power Steering Optional
Min. Turning Radius	3.45 m

Wheels & Tyres

Specification	Details
Front Tyres	6.00 x 16 inch
Rear Tyres	13.6 x 28 / 12.4 - 28 inch

Components & Features

Specification	Details
Hydraulics Lifting Capacity	1800 kg
PTO Speed	540 with GPTO / RPTO (Optional)
Fuel Tank Capacity	67 L
Engine Sump Capacity	8 L
Cooling System Capacity	8.5 L
Transmission & Hydraulic Capacity	55 L
Steering System Capacity	0.5 L (Mechanical), 2 L (Power Steering)
Hydraulic System Type	2 Lever, ADDC
Hydraulic Pump	Gear Type
Linkage	TPL Category-II
Electronic Meter	Digital or semi-digital instrumentation for precise monitoring
Mobile Charger Point	Dedicated port to charge mobile devices during operations
Power Steering	Optional power steering for easy and smooth steering
Big Air Cleaner	Larger air cleaner for better dust filtration and improved engine performance
Aero Dynamic Bonnet	Sleek bonnet design for better airflow and modern aesthetics
Oil Immersed Brake	Optional oil immersed brake for better heat dissipation and longer life
Multi-Speed Forward and Reverse PTO	Multi-speed and reverse PTO for implement versatility

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
