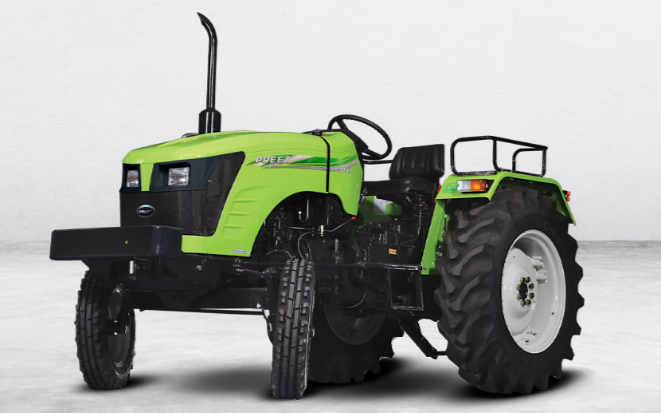

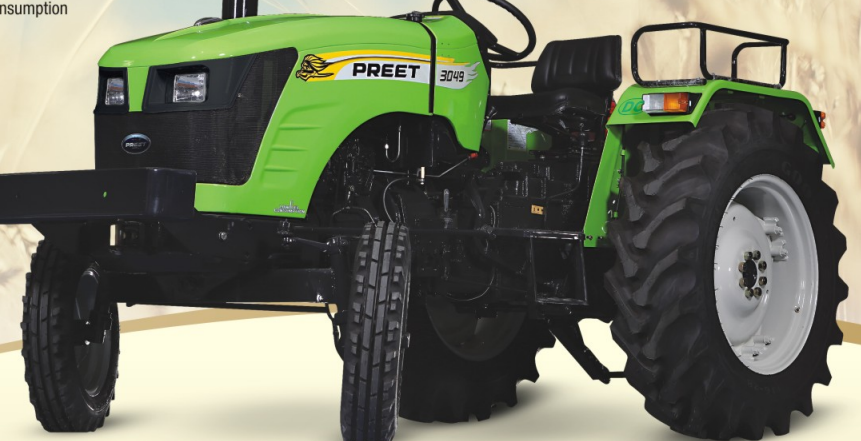

PREET 3049 2WD – 2WD Agricultural Tractor by PREET
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 3049 |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
2 |
|
Bore / Stroke |
100/118 mm |
|
Rated RPM |
2000 r/min |
|
Clutch Type |
Heavy Duty Dry Type Single, Dia 280 mm, Cerametalic Friction |
|
Transmission Type |
Combination of Constant and Sliding Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Power Range |
30 HP |
|
Road Speed |
Forward: High 8.71-28.05 km/h, Low 2.21-7.12 km/h; Reverse: High 12.19 km/h, Low 3.09 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi Disc Oil Immersed |
|
Steering Type |
Power Steering |
|
Min. Turning Radius |
3 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 - 16 inch |
|
Rear Tyres |
12.4 - 28 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1800 kg |
|
PTO RPM |
540 |
|
Fuel Tank Capacity |
67 L |
|
Engine Sump Capacity |
6 L |
|
Cooling System Capacity |
6.5 L |
|
Transmission & Hydraulic Capacity |
55 L |
|
Steering System Capacity |
2 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category I-II |
|
Battery |
12V, 75Ah |
|
Alternator |
12V, 42A |
|
Starter Motor |
12V, 2.7 kW |
|
Overall Length |
3575 mm |
|
Width |
1700 mm |
|
Height up to Exhaust |
2225 mm |
|
Ground Clearance |
340 mm |
|
Wheel Base |
1860 mm |
|
Front Track |
1345 mm |
|
Rear Track |
1350 mm |
|
Bonnet Lock with Key |
Bonnet lock with key |
|
Electronic Meter |
Electronic meter |
|
Mobile Charger Point |
Mobile charger point |
|
Power Steering (Optional) |
Optional power steering |
|
Big Air Cleaner |
Large air cleaner |
|
Oil Immersed Brake (Optional) |
Optional oil immersed brake |
|
Multi Speed PTO & Reverse PTO |
Multi speed and reverse PTO |
