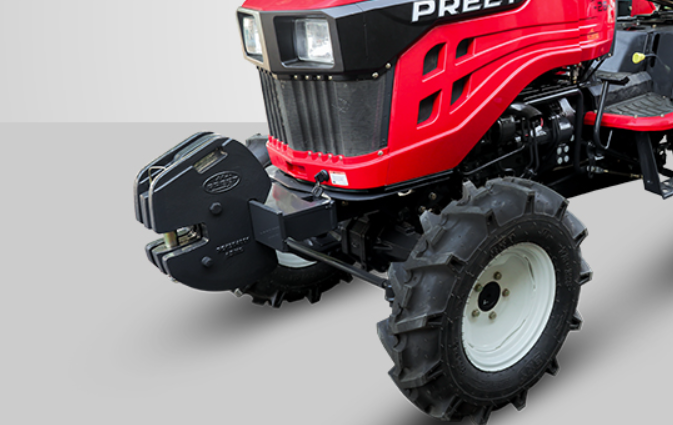

PREET 26 4WD (NSM) – 4WD Agricultural Tractor by PREET
 1.png)
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 26 |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Bore / Stroke |
78 / 92 mm |
|
Rated RPM |
2500 r/min |
|
Clutch Type |
Heavy Duty Dry Type Single Clutch, Dia 224 mm |
|
Transmission Type |
Synchromesh |
|
Drive Type |
4WD |
|
Number of Gears |
6 Forward + 2 Reverse |
|
Power Range |
26 HP |
|
Road Speed |
Forward: High 6.00-16.24 km/h, Low 1.54-4.12 km/h; Reverse: High 4.5 km/h, Low 1.14 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi Disc Oil Immersed |
|
Steering Type |
Power Steering |
|
Min. Turning Radius |
2.7 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 - 12 inch |
|
Rear Tyres |
8.3 - 20 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1000 kg |
|
PTO RPM |
540 / 1000 |
|
Fuel Tank Capacity |
25 L |
|
Engine Sump Capacity |
3.7 L |
|
Cooling System Capacity |
5.8 L |
|
Transmission & Hydraulic Capacity |
26 L |
|
Steering System Capacity |
1.3 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category I |
|
Battery |
12V, 75Ah |
|
Alternator |
12V, 65A |
|
Starter Motor |
12V, 1.7 kW |
|
Electronic Meter |
Electronic meter |
|
Mobile Charger Point |
Mobile charger point |
|
Power Steering (Optional) |
Optional power steering |
|
Big Air Cleaner |
Large air cleaner |
|
Aero Dynamic Bonnet |
Aero dynamic bonnet |
|
Oil Immersed Brake |
Oil immersed brake |
|
Multi Speed PTO & Reverse PTO |
Multi speed and reverse PTO |
|
6+2 Reverse / Forward Speed |
6+2 reverse / forward speed |
|
Front Drive Axle Differential |
Differential |
|
Front Drive Axle Total Ratio |
1:11.27 |
|
Front Drive Axle Oil Capacity |
2.5 ± 10% L |
|
Overall Length |
2860 mm |
|
Width |
1085 mm |
|
Height up to Exhaust |
2360 mm |
|
Ground Clearance |
200 mm |
|
Wheel Base |
1590 mm |
|
Front Track |
905 mm |
|
Rear Track |
850 mm |
|
Weight |
1210 kg |
