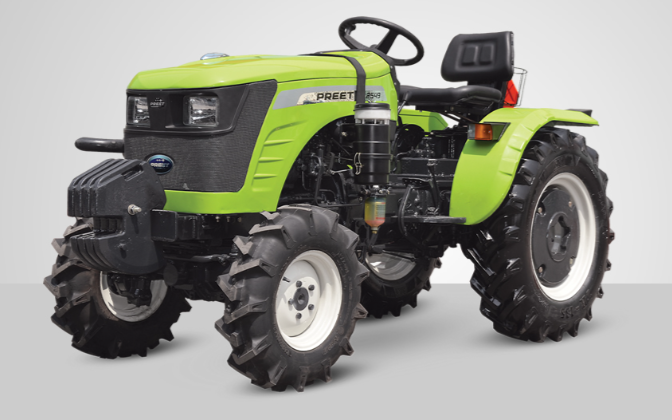

PREET 2549 2WD – 2WDAgricultural Tractor by PREET
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 2549 2WD |
|
Vehicle Category |
2WDTractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
2 |
|
Bore / Stroke |
100 / 118 mm |
|
Rated RPM |
2000 RPM |
|
Clutch Type |
Heavy Duty Dry Type Single, 250 mm diameter |
|
Transmission Type |
Synchromesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
HP Category |
25 HP |
|
Road Speed |
Forward: High 5.69-22.66 km/h, Low 1.44-5.75 km/h; Reverse: High 7.58 km/h, Low 1.92 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Dry / Multi Disc Oil Immersed (Optional) |
|
Steering Type |
Power Steering |
|
Turning Radius |
2.7 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
5.20 - 14 / 6.00 - 12 inch |
|
Rear Tyres |
8.3 - 20 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1000 kg |
|
PTO RPM |
540 RPM |
|
Fuel Tank Capacity |
25 L |
|
Engine Sump Capacity |
5 L |
|
Cooling System Capacity |
6.5 L |
|
Transmission & Hydraulic Capacity |
25 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category I |
|
Battery |
12V, 75Ah |
|
Alternator |
12V, 42A |
|
Starter Motor |
12V, 2.7 kW |
|
Overall Length |
2780 mm |
|
Width |
1130 mm |
|
Height |
1425 mm |
|
Ground Clearance |
180 mm |
|
Wheelbase |
1625 mm |
|
Front Track |
840 mm |
|
Rear Track |
920 mm |
|
Front Drive Axle Differential Ratio |
1:11.27 |
|
Front Drive Axle Oil Capacity |
2.5 L ±10% |
