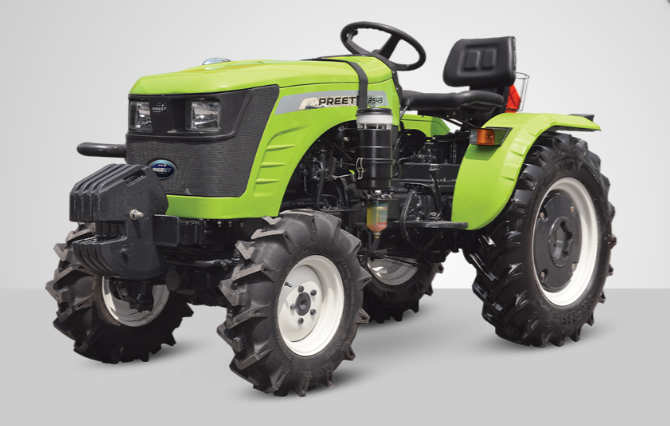

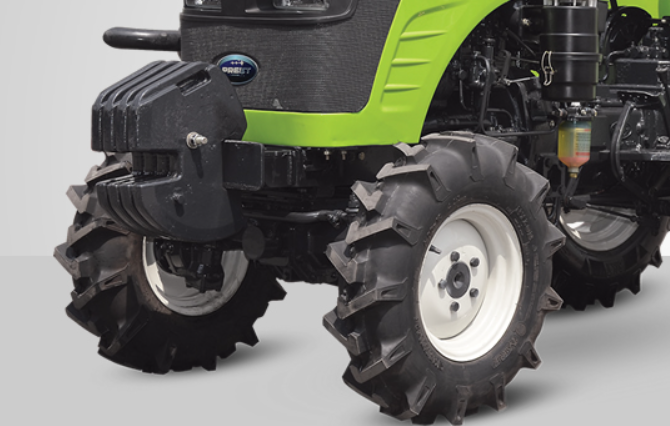

PREET 2549 2WD / 4WD ORCHARD – 2WD/4WD Agricultural Tractor (Orchard) by PREET

Images:

Specifications

Specification	Details
Tractor Model	PREET 2549
Vehicle Category	2WD / 4WD Tractor
Fuel Type	Diesel
Application	2WD/4WD Agricultural Tractor (Orchard)

Specification	Details
Number of Engine Cylinders	2
Bore / Stroke	100 / 118 mm
Rated RPM	2000 r/min
Clutch Type	Heavy Duty Dry Type Single, Dia 280 mm
Transmission Type	Synchromesh
Drive Type	2WD / 4WD
Number of Gears	8 Forward + 2 Reverse
Power Range	25 HP
Road Speed	Forward: High 5.69-22.66 km/h, Low 1.44-5.75 km/h; Reverse: High 7.58 km/h, Low 1.92 km/h

Specification	Details
Brake Type	Dry / Multi Disc Oil Immersed (Optional)
Steering Type	Power Steering
Min. Turning Radius	2.7 m

Specification	Details
Hydraulics Lifting Capacity	1000 kg
PTO RPM	540
Fuel Tank Capacity	25 L
Engine Sump Capacity	5 L
Cooling System Capacity	6.5 L
Transmission & Hydraulic Capacity	25 L
Steering System Capacity	Common with Transmission
Hydraulic System Type	2 Lever, ADDC
Hydraulic Pump	Gear Type
Linkage	TPL Category I
Battery	12V, 75Ah
Alternator	12V, 42A
Starter Motor	12V, 2.7 kW
Bonnet Lock with Key	Bonnet lock with key
Electronic Meter	Electronic meter
Mobile Charger Point	Mobile charger point
Power Steering (Optional)	Optional power steering
Big Air Cleaner	Large air cleaner
Aero Dynamic Bonnet	Aero dynamic bonnet
Oil Immersed Brake	Oil immersed brake
Multi Speed PTO & Reverse PTO	Multi speed and reverse PTO
Ground PTO	Ground PTO
Front Drive Axle Differential	Differential
Front Drive Axle Total Ratio	1:11.27
Front Drive Axle Oil Capacity	2.5 ± 10% L
Overall Length	2780 mm
Width	1130 mm
Height up to Exhaust	1425 mm
Ground Clearance	180 mm
Wheel Base	1625 mm
Front Track	840 mm
Rear Track	920 mm
