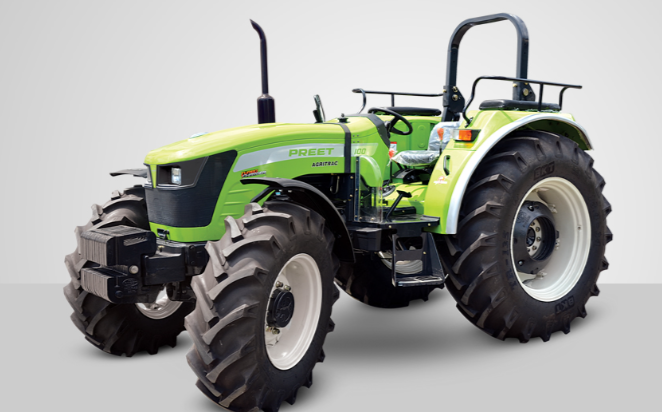

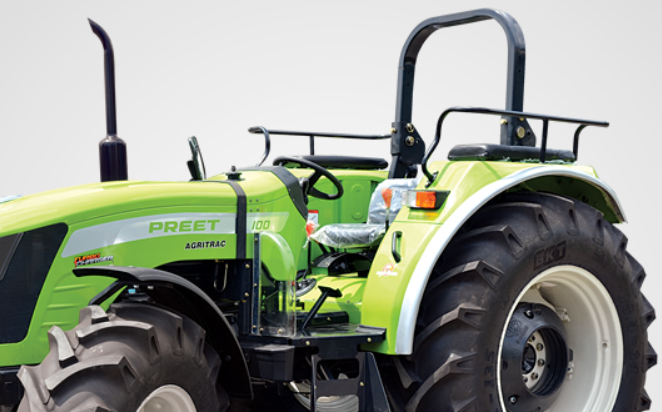

PREET 100 4WD – 4WD Agricultural Tractor by PREET
Specifications
|
Specification |
Details |
|
Tractor Model |
PREET 100 |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
4 |
|
Bore / Stroke |
105 / 118 mm |
|
Rated RPM |
2200 r/min |
|
Clutch Type |
Heavy Duty Dry Type Dual, Ø 310 mm, Cerametalic Friction |
|
Transmission Type |
Synchromesh |
|
Drive Type |
4WD |
|
Number of Gears |
12 Forward + 12 Reverse |
|
Power Range |
100 HP |
|
Road Speed |
Forward: High 13.17-40.25 km/h, Medium 2.98-9.11 km/h, Low 0.65-1.98 km/h; Reverse: High 11.19-30.79 km/h, Medium 2.53-6.97 km/h, Low 0.55-1.52 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi Disc Oil Immersed |
|
Steering Type |
Power Steering |
|
Min. Turning Radius |
3.9 m |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
14.9 - 24 inch |
|
Rear Tyres |
18.4 - 34 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
2400 kg |
|
PTO RPM |
540 and 540E |
|
Fuel Tank Capacity |
67 L |
|
Engine Sump Capacity |
11 L |
|
Cooling System Capacity |
10 L |
|
Transmission & Hydraulic Capacity |
35 L |
|
Steering System Capacity |
2 L |
|
Hydraulic System Type |
2 Lever, ADDC |
|
Hydraulic Pump |
Gear Type |
|
Linkage |
TPL Category II |
|
Battery |
12V, 100Ah |
|
Alternator |
12V, 42A |
|
Starter Motor |
12V, 2.7 kW |
|
Carraro Synchronisation Transmission |
Carraro synchronisation transmission |
|
Carraro Front Axle |
Carraro front axle |
|
ABC Speed 12+12 |
ABC speed 12+12 |
|
Reverse Speed = Forward Speed |
Reverse speed equals forward speed |
|
2600 KG Liftomatic Hypersensitive Powerful Lift |
2600 kg Liftomatic hypersensitive powerful lift |
|
Multi Speed PTO & Ground PTO |
Multi speed and ground PTO |
|
Power Steering (Optional) |
Optional power steering |
|
Aerodynamic Bonnet |
Aerodynamic bonnet |
|
Bonnet Lock with Key |
Bonnet lock with key |
|
Electronic Meter |
Electronic meter |
|
Planetary Oil Immersed Brakes |
Planetary oil immersed brakes |
|
Extra Leg Space |
Extra leg space |
|
Extra Radiator Coolant |
Extra radiator coolant |
|
Dry Air Cleaner |
Dry air cleaner |
|
Mobile Charger Point |
Mobile charger point |
|
Front Drive Axle Differential |
Limited Slip |
|
Front Drive Axle Total Ratio |
1:12.8 |
|
Front Drive Axle Oil Capacity |
5.6 ±15% L |
|
Optional Front Tyres |
12.4 - 24 |
|
Optional Rear Tyres |
18.4 - 30 |
|
Overall Length |
4200 mm |
|
Width |
2150 mm |
|
Height up to Exhaust |
2480 mm |
|
Ground Clearance |
470 mm |
|
Wheel Base |
2340 mm |
|
Front Track |
1585 mm |
|
Rear Track |
1580 mm |
