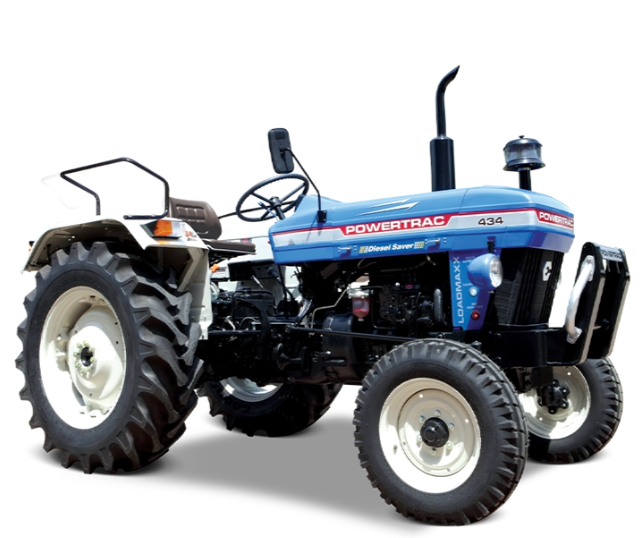

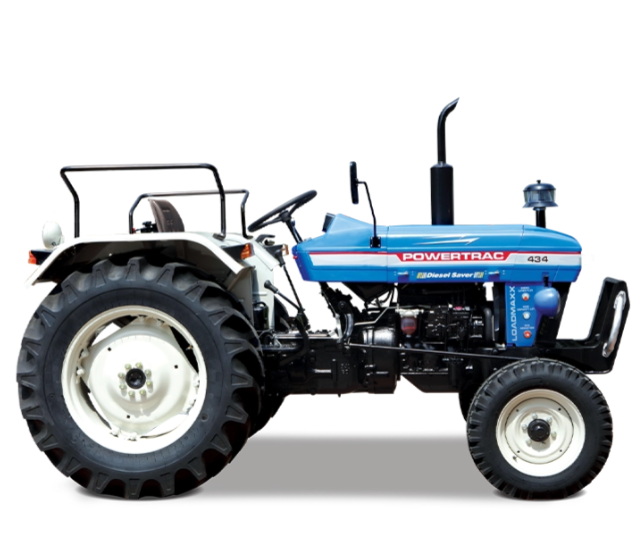

Powertrac 434 RDX – 2WD Agricultural Tractor by Powertrac
Specifications
|
Specification |
Details |
|
Tractor Model |
Powertrac 434 RDX |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Engine Power |
26.1 kW (35 HP Cat.) |
|
Maximum Torque |
148 Nm |
|
Clutch |
Single |
|
Transmission Type |
Constant Mesh/Side Shift |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
15.24 cm x 40.64 cm (6 inch x 16 inch) |
|
Rear Tyres |
31.49 cm x 71.12 cm (12.4 inch x 28 inch); 34.54 cm x 71.12 cm (13.6 inch x 28 inch) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
1600 kg |
|
PTO Speed |
540/540E RPM |
|
Fuel Tank Capacity |
50 litres |
|
Front Axle Type |
2 WD | Fixed |
|
Rear Axle Type |
Inboard Reduction |
|
Overall Width |
1740 mm |
|
Overall Length |
3524 mm |
|
Overall Height |
2182 mm |
|
Ground Clearance |
375 mm |
|
Wheel Base |
2060 mm |
|
Total Weight |
1850 kg |
