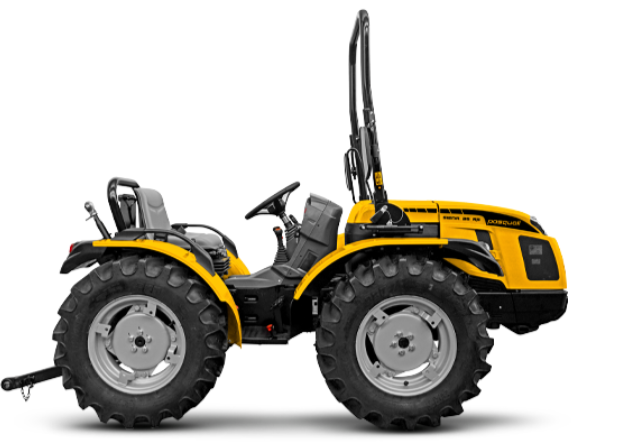

Pasquali Siena 35 RS – 4WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Siena 35 RS |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Gardens, Greenhouses, Municipalities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota D1105, 3-Cylinder, 1,123 cc, Indirect Injection, Natural Aspiration, Liquid-Cooled, Stage V |
|
Maximum Power |
25 HP (18.5 kW) @ 3,000 RPM |
|
Maximum Torque |
71.5 Nm @ 2,200 RPM |
|
Transmission Type |
Gearbox with Easy Gear Engagement, 8 FWD + 4 REV Speeds, Min Speed: 1.5 km/h, Max Speed: 30 km/h, Dry Single Disc Clutch |
|
Steering |
Hydrostatic Steering Acting on Front Wheels |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Drum Brakes Acting on Rear Wheels, Independent Manoeuvring Brakes Acting on Rear Wheels, Parking Brake Acting on Service Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Tractor: 6.50-16*210/95R16 (7.50-16)*260/70R16; Garden: 240/70-15 |
Components & Features
|
Specification |
Details |
|
Chassis |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Drive |
Permanent Four-Wheel Drive |
|
Differential |
Front and Rear with Simultaneous Locking and Mechanical Control |
|
PTO Type |
Rear: 540 RPM, Synchronized, Mechanical Engagement Control, Optional Independent 540 RPM with Multi-Disc Oil Bath Clutch and Electro-Hydraulic Control (15.5 l/min Pump) |
|
Hydraulic System |
Single-Circuit, 19 l/min, 125 bar, Standard: 1 Double-Acting (2 Outlets), Optional: Up to 4 Hydraulic Outlets |
|
Rear Lift |
950 kg, Category 1, Up/Down Lift with Two External Cylinders, Normal Couplings, Manual Third Point Tie Rod |
|

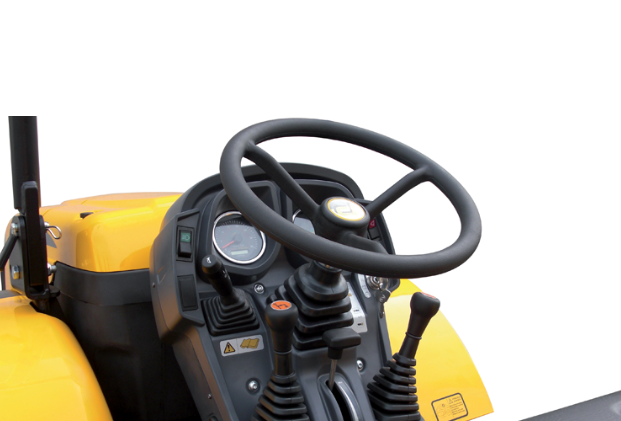

Driving Position |
Monodirectional, Comfort Seat with Longitudinal, Height, and Spring Adjustment, Safety Belt, Man-on-Board Sensor, Standard Fixed Steering Wheel, Optional Height-Adjustable Steering Wheel |
|
Dashboard |
Analogue Instrumentation with Operating Hours, Engine RPM, Warning Lights |
|
Electric System |
Battery: 60 Ah / 12 V, Alternator: 40 A, Street Light and Indicator System, Front Working Lights, 12V Auxiliary Power Outlet, Rear 7-Pin Socket |
|
Tow Hooks |
Standard: Front and Rear CUNA Cat. B Adjustable in Height, Optional: Rear EC Approved |
|
Safety |
Front Homologated Roll-Bar with Gas Spring for Easy Lowering and Lifting |
|
Additional Options |
Rear Adjustable Working Light, Beacon Lamp, Wheel Weights: 40 kg Each |
|
Weight |
With Roll-Bar: 1,060 kg |
|
Wheelbase |
1,200 mm |
|
Ground Clearance |
170–335 mm |
|
Dimensions |
Length: 2,943 mm, Width: 1,069–1,391 mm, Height (Roll-Bar): 1,970–1,990 mm |
