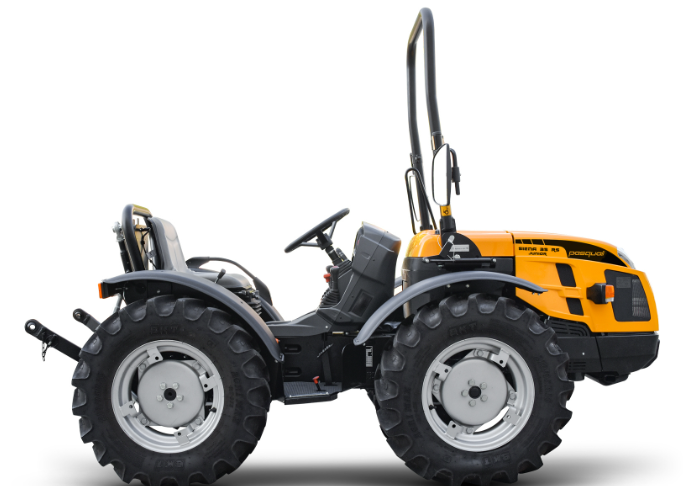

Pasquali Siena 35 RS Junior – 4WD Tractor with Kubota Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Siena 35 RS Junior (4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Small-Scale Farming |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota D1105, 3 cylinders, 1123 cc, Natural aspiration, Stage V, Diesel indirect injection, Liquid cooling |
|
Gross Horsepower |
25 HP (18.5 kW) at 3000 rpm |
|
Max Torque |
71.5 Nm at 2200 rpm |
|
Transmission Type |
8 FWD + 4 REV gearbox with easy gear engagement, Min speed: 1.5 km/h, Max speed: 30 km/h, Dry single disc clutch |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Comfort seat with longitudinal, height, and spring adjustment, safety belt, and man-on-board sensor |
|
Braking System |
Drum brakes acting on rear wheels, Optional independent maneuvering brakes on rear wheels, Parking brake acting on service brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
6.50-16, 210/95R16 (7.50-16), 260/70R16, 240/70-15 Garden |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540 rpm, Synchronised, Mechanical engagement control, Optional independent PTO with 540 rpm, multi-disc oil bath clutch, electro-hydraulic control, and synchronised (15.5 L/min hydraulic pump) |
|
Hydraulic System |
Single-circuit, Hydraulic pump: 19 L/min, Max pressure: 125 bar, Standard: no hydraulic outlets, Optional: up to 2 hydraulic outlets |
|
Hitch |
Category 1, Up/down lift with single external cylinder (standard, 500 kg capacity) or two external cylinders (optional, 950 kg capacity), Manual third point tie rod |
|
Fuel Tank Capacity |
43 L |
|
Weight |
1060 kg (with roll-bar) |
|
Width |
1069-1391 mm |
|
Wheelbase |
968 mm |
|
Track Width |
Front/Rear: 886-1182 mm |
|
Max Length |
2943 mm |
|
Max Height |
1940-1990 mm (with roll-bar) |
|
Features |
Swinging integral OS-Frame chassis (±15°) with steering wheels, Permanent four-wheel drive, Front and rear differential lock with simultaneous mechanical control, Analogue instrumentation (operating hours, engine rpm, warning lights), Street light and indicator system, Auxiliary power outlet (12V), Rear 7-pin socket, Front roll-bar, Optional front working lights, Optional rear adjustable working light, Optional beacon lamp |
