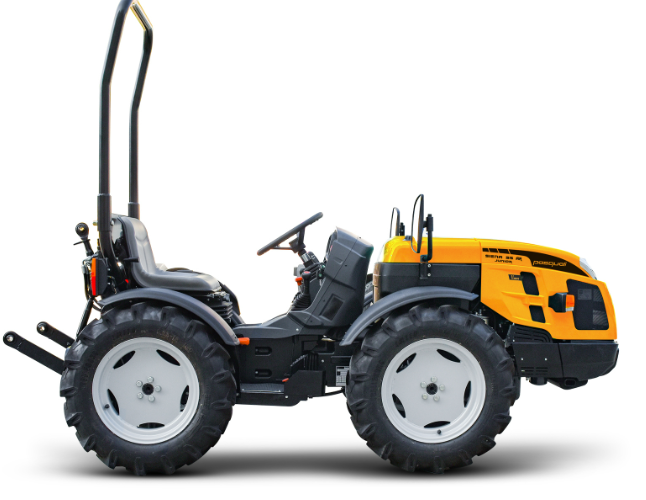

Pasquali Siena 35 AR Junior Micro – 4WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Siena 35 AR Junior Micro |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Gardens, Greenhouses, Municipalities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota D1105, 3-Cylinder, 1,123 cc, Indirect Injection, Natural Aspiration, Liquid-Cooled, Stage V |
|
Maximum Power |
25 HP (18.5 kW) @ 3,000 RPM |
|
Maximum Torque |
71.5 Nm @ 2,200 RPM |
|
Transmission Type |
Gearbox with Easy Gear Engagement, 8 FWD + 4 REV Speeds, Min Speed: 1.3 km/h, Max Speed: 25.1 km/h, Dry Single Disc Clutch |
|
Steering |
Hydrostatic Steering Acting on Central Joint |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Drum Brakes Acting on Rear Wheels, Parking Brake Acting on Service Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Tractor: 5.00-15*6.00-16 (Fixed Rim) |
Components & Features
|
Specification |
Details |
|
Chassis |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation |
|
Drive |
Permanent Four-Wheel Drive |
|
Differential |
Front and Rear with Simultaneous Locking and Mechanical Control |
|
PTO Type |
Rear: 540 RPM, Synchronized, Mechanical Engagement Control |
|
Hydraulic System |
Single-Circuit, 19 l/min, 125 bar, Standard: Without Hydraulic Outlets, Optional: Up to 2 Hydraulic Outlets |
|
Rear Lift |
Standard: 500 kg with Single External Cylinder, Optional: 950 kg with Two External Cylinders, Category 1N, Normal or Quick-Couplings with Adjustable Arms, Manual Third Point Tie Rod |
|
Driving Position |
Monodirectional, Comfort Seat with Longitudinal, Height, and Spring Adjustment, Safety Belt, Man-on-Board Sensor, Fixed Steering Wheel |
|
Dashboard |
Analogue Instrumentation with Operating Hours, Engine RPM, Warning Lights |
|
Electric System |
Battery: 60 Ah / 12 V, Alternator: 40 A, Street Light and Indicator System, 12V Auxiliary Power Outlet, Rear 7-Pin Socket |
|
Tow Hooks |
Standard: Front and Rear CUNA Cat. B Adjustable in Height, Optional: Rear EC Approved |
|
Safety |
Rear Roll-Bar |
|
Additional Options |
Front Working Lights, Rear Adjustable Working Light, Beacon Lamp |
|
Weight |
With Roll-Bar: 975 kg |
|
Wheelbase |
1,200 mm |
|
Ground Clearance |
150–187 mm |
|
Dimensions |
Length: 2,891 mm, Width: 770–902 mm, Height (Roll-Bar): 2,022–2,059 mm |
