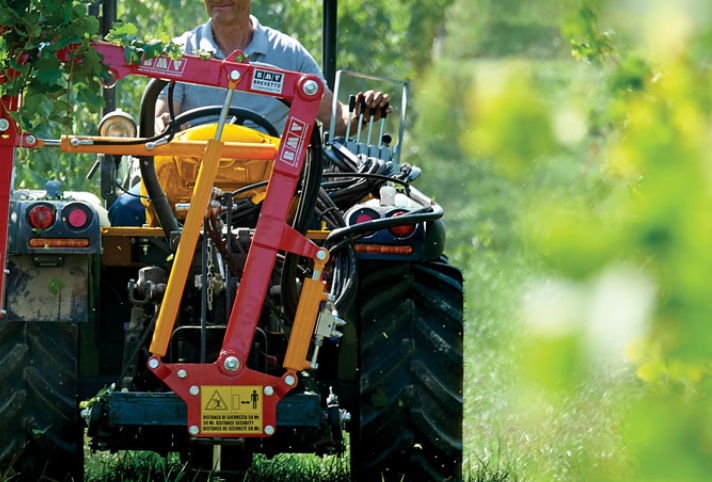

Pasquali Orion K90 AR – 4WD Tractor with Kubota Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Orion K90 AR (4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Olive Groves, Greenhouses, Canopy Plantations |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota V3800-CR-T-EW03, 4 cylinders, 3769 cc, Turbo, Stage V, Diesel common rail direct injection, Liquid cooling, Electronic engine speed control with hand throttle control knob and push button with set speed storage/recall/exclusion function |
|
Gross Horsepower |
75 HP (54.6 kW) at 2400 rpm |
|
Max Torque |
305.4 Nm at 1500 rpm |
|
Transmission Type |
32-speed synchronised, 16 FWD + 16 REV with synchronised reverser, Min speed: 0.7 km/h, Max speed: 40 km/h, Multidisc in oil bath clutch with electronically-managed proportional hydraulic control and PRO-ACT System, Optional EASYDRIVE® electro-hydraulic power shuttle with slow/quick reverse modes |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Reversible rotating platform suspended on silent blocks, Comfort seat with gas spring, safety belt, and man-on-board sensor, Optional 'Grammer' or 'Cobo' pneumatic seat, Optional VISTA PRO pressurized cab (Category 4, requires activated carbon filters) with four-post monocoque frame on silent blocks |
|
Braking System |
Oil bath discs with hydrostatic control, acting on four wheels with automatic 4WD engagement, Automatic and independent Brake-Off parking brake with proportional action |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
250/80-18, 280/70R18, 280/70R18 Garden, 320/65R18, 250/85R20, 300/70R20, 300/70R20 Garden, 340/65R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x12.50-15 XTC, 280/70R20 PneuTrac |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E (standard), 540/1000 (optional), Independent, Multidisc in oil bath with electro-hydraulic control, Negative safety hydraulic brake, Synchronised with forwarding speed |
|
Hydraulic System |
Dual circuit with independent pumps and heat exchanger, Power steering pump: 33.1 L/min, Lift and control valves: 27.7 L/min (optional 49 L/min), Max pressure: 180 bar, Standard: 2 double-acting and 1 double-acting with float and free flow oil return (7 outlets), Optional: up to 12 outlets (with up/down lift) or 9 outlets (with draft-controlled lift), Optional proportional electronic joystick (1 continuous flow, 4 double-acting, 1 double-acting with float, 13 outlets total) |
|
Hitch |
Category 1 and 2, Up/down lift with two external cylinders (standard), Optional position and draft-controlled, Ball joint lifting capacity: 2300 kg, Standard: manual third point tie bar, Optional: hydraulically controlled upper link and tie rod link arm, Optional front lift with 800 kg capacity and 4 front outlets |
|
Weight |
2300 kg (with roll-bar), 2450 kg (with cabin) |
|
Width |
1127-1603 mm |
|
Wheelbase |
1348 mm |
|
Track Width |
Front/Rear: 882-1260 mm |
|
Max Length |
3775 mm |
|
Max Height |
2254-2364 mm (with roll-bar), 2235-2345 mm (with cabin) |
|
Features |
Swinging integral OS-Frame chassis (±15°) with central articulation, Front-wheel drive disengagement with electro-hydraulic control, Front and rear differential lock with electro-hydraulic control, Instrument panel with analogue gauges and TFT digital colour display (hours, engine rpm, speed, PTO rpm, fuel consumption, battery voltage, time), Full LED street lights and indicator system, Front LED working lights, Two USB sockets, Rear 7-pin and 3-pin sockets, Optional front bumper, Optional rear adjustable working light, Optional front weights (150 kg total), Optional wheel weights (50 kg each), Optional anti-bounce kit for third point, Optional silver and bordeaux 'Special Edition' livery |
