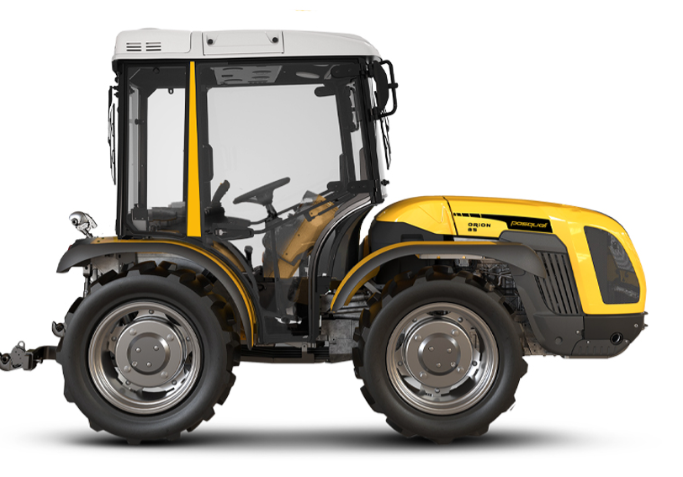

Pasquali Orion 85 MT – 4WD Tractor with Kohler Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Orion 85 MT (4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mountainous Areas, Orchards, Vineyards, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, 4 cylinders, 2482 cc, Turbo intercooler, Stage V, Diesel common rail direct injection, Liquid cooling, Electronic engine speed control with hand throttle knob and push button with set speed storage/recall/exclusion function |
|
Gross Horsepower |
75.3 HP (55.4 kW) at 2300 rpm |
|
Max Torque |
300 Nm at 1500 rpm |
|
Transmission Type |
32-speed synchronised, 16 FWD + 16 REV with synchronised reverser, Min speed: 0.7 km/h, Max speed: 40 km/h, Multidisc in oil bath clutch with electronically-managed proportional hydraulic control, Power Clutch System, PRO-ACT System with Easy Plus™ assisted engagement, Smart Brake & Go function, Optional EASYDRIVE® electro-hydraulic power shuttle with slow/quick reverse modes |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Reversible wide rotating platform suspended on silent blocks, Comfort seat with armrest, gas spring, safety belt, and man-on-board sensor, Optional 'Grammer' or 'Cobo' pneumatic seat, Standard 6-post semi-cab or optional SPACE CLIMA cabin (homologated, soundproof) with six-post monocoque frame on silent blocks |
|
Braking System |
Oil bath discs with hydrostatic control, acting on four wheels with automatic 4WD engagement, Independent maneuvering brakes on rear wheels, Automatic and independent Brake-Off parking brake with proportional action |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
31x15.50-15 XTC, 31x15.50-15 STG, 440/50-17 All-Ground, 340/65R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/1000 (standard), 540/540E (optional), Independent, Multidisc in oil bath with electro-hydraulic control, Negative safety hydraulic brake, Synchronised with forwarding speed |
|
Hydraulic System |
Dual circuit with independent pumps and heat exchanger, Power steering pump: 33.5 L/min, Lift and control valves: 29.5 L/min, Max pressure: 180 bar, Standard: 3 double-acting and 1 double-acting with float (8 outlets), Optional joystick with 1 single-acting, 2 double-acting, 1 double-acting with float (7 outlets total) |
|

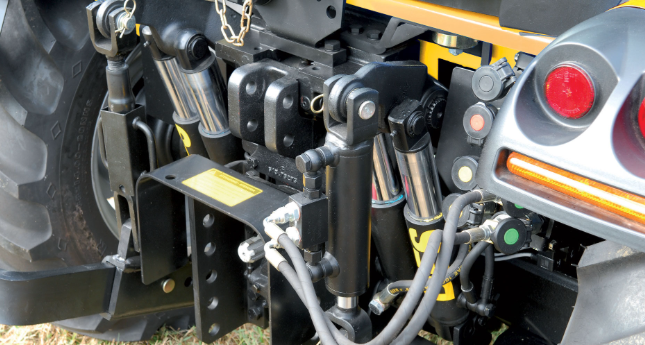

Hitch |
Category 1 and 2, Up/down lift with four external cylinders and Dual Floating System® hydraulic suspension, Ball joint lifting capacity: 2300 kg, Standard: quick-couplings cat. 1 and 2, L-shaped, adjustable arms and hooks, Optional: quick-couplings cat. 1 and 2, adjustable arms, Standard: manual third point tie rod, Optional: hydraulically controlled upper link and tie rod link arm, Optional front lift with 800 kg capacity and 4 front outlets |
|
Weight |
2420 kg (with semi-cab), 2500 kg (with cabin) |
|
Width |
1697-1961 mm |
|
Wheelbase |
1365 mm |
|
Track Width |
Front/Rear: 1354-1618 mm |
|
Max Length |
3790 mm |
|
Max Height |
2070-2180 mm (with semi-cab or cabin) |
|
Features |
Swinging integral OS-Frame chassis (±15°) with steering wheels, Front-wheel drive disengagement with electro-hydraulic control, Front and rear differential lock with electro-hydraulic control, Self Cleaning System™ for radiator and intake grille, Instrument panel with analogue gauges and TFT digital colour display (hours, engine rpm, speed, PTO rpm, fuel consumption, battery voltage, time), Full LED street lights and indicator system, Front LED working lights, Two USB sockets, Rear 7-pin and 3-pin sockets, Optional front bumper, Optional front weights (150 kg), Optional wheel weights (50 kg), Optional silver and bordeaux 'Special Edition' livery |
