Specification

Details

Tractor Model

Pasquali Orion 85 DUALSTEER® (4WD)

Vehicle Category

Tractor

Fuel Type

Diesel

Application

Orchards, Vineyards, Olive Groves, Greenhouses, Canopy Plantations

Specification

Details

Engine

Kohler KDI 2504 TCR, 4 cylinders, 2482 cc, Turbo intercooler, Stage V, Diesel common rail direct injection, Liquid cooling, Electronic engine speed control with hand throttle control knob and push button with set speed storage/recall/exclusion function

Gross Horsepower

75.3 HP (55.4 kW) at 2300 rpm

Max Torque

300 Nm at 1500 rpm

Transmission Type

32-speed synchronised, 16 FWD + 16 REV with synchronised reverser, Min speed: 0.7 km/h, Max speed: 40 km/h, Multidisc in oil bath clutch with electronically-managed proportional hydraulic control, Power Clutch System, PRO-ACT System with Easy Plus™ assisted engagement, Smart Brake & Go function, Optional EASYDRIVE® electro-hydraulic power shuttle with slow/quick reverse modes

Specification

Details

Suspension

Reversible rotating platform suspended on silent blocks, Comfort seat with gas spring, safety belt, and man-on-board sensor, Optional 'Grammer' or 'Cobo' pneumatic seat, Optional VISTA PRO pressurized cab (Category 4, requires activated carbon filters) with four-post monocoque frame on silent blocks, Optional HDR hydraulic suspension with accumulator

Braking System

Oil bath discs with hydrostatic control, acting on four wheels with automatic 4WD engagement, Independent maneuvering brakes on rear wheels, Automatic and independent Brake-Off parking brake with proportional action

Specification

Details

Tyre Size

340/65R18, 280/70R18, 280/70R18 Garden, 320/65R18, 9.50-20 (250/85R20), 300/70R20, 300/70R20 Garden, 320/70R20, 340/65R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC, 280/70R20 PneuTrac

Specification

Details

PTO Type

Rear: 540/540E (standard), 540/1000 (optional), Independent, Multidisc in oil bath with electro-hydraulic control, Negative safety hydraulic brake, Synchronised with forwarding speed

Hydraulic System

Dual circuit with independent pumps and heat exchanger, Power steering pump: 33.5 L/min, Lift and control valves: 29.5 L/min (optional 51 L/min), Max pressure: 180 bar, Standard: 2 double-acting and 1 double-acting with float and free flow oil return (7 outlets), Optional: up to 12 outlets (with up/down lift) or 9 outlets (with draft-controlled lift), Optional proportional electronic joystick (1 continuous flow, 4 double-acting, 1 double-acting with float, 13 outlets total)

Hitch

Category 1 and 2, Up/down lift with two external cylinders (standard), Optional position and draft-controlled, Ball joint lifting capacity: 2300 kg, Standard: manual third point tie rod, Optional: hydraulically controlled upper link and tie rod link arm, Optional front lift with 800 kg capacity and 4 front outlets

Weight

2390 kg (with roll-bar), 2540 kg (with cabin)

Width

1291-1961 mm

Wheelbase

1365 mm

Track Width

Front/Rear: 1046-1618 mm

Max Length

3790 mm

Max Height

2254-2364 mm (with roll-bar), 2235-2345 mm (with cabin)

Features

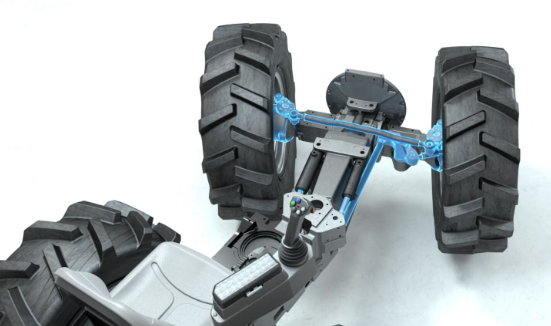

Swinging integral OS-Frame chassis (±15°) with central articulation and steering wheels, DUALSTEER® double steering system with 4-cylinder, Front-wheel drive disengagement with electro-hydraulic control, Front and rear differential lock with electro-hydraulic control, Instrument panel with analogue gauges and TFT digital colour display (hours, engine rpm, speed, PTO rpm, fuel consumption, battery voltage, time), Full LED street lights and indicator system, Front LED working lights, Two USB sockets, Rear 7-pin and 3-pin sockets, Optional HDR hydraulic suspension with accumulator, Optional front bumper, Optional rear adjustable working light, Optional Self Cleaning System™, Optional front weights (150 kg total), Optional wheel weights (50 kg each), Optional anti-bounce kit for third point, Optional silver and bordeaux 'Special Edition' livery
