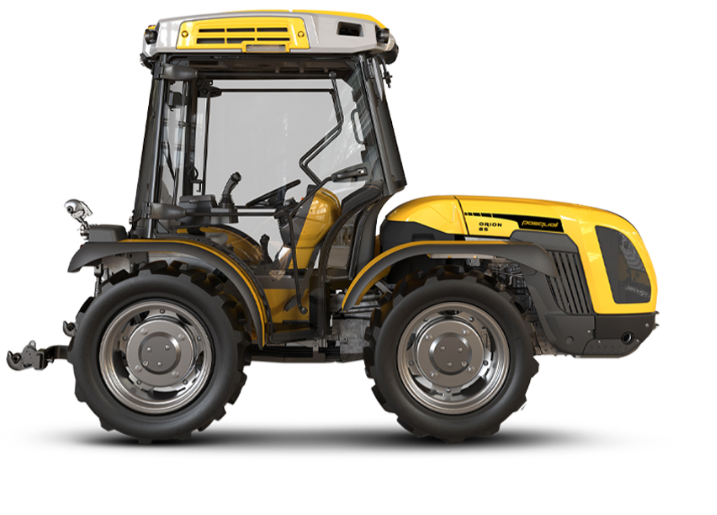

Pasquali Orion 85 AR – 4WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Orion 85 AR |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Municipalities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, 4-Cylinder, 2,482 cc, Common Rail Direct Injection, Turbo Intercooler, Liquid-Cooled, Stage V |
|
Maximum Power |
75.3 HP (55.4 kW) @ 2,300 RPM |
|
Maximum Torque |
300 Nm @ 1,500 RPM |
|
Transmission Type |
32-Speed Synchronized Gearbox, 16 FWD + 16 REV with Synchronized Reverser, Min Speed: 0.7 km/h, Max Speed: 38 km/h, Multidisc in Oil Bath with Electronically-Managed Hydraulic Control, Optional EasyDrive® Power Shuttle with Slow/Quick Reverse Modes, Power Clutch System, PRO-ACT System with Easy Plus™ Engagement, Smart Brake & Go Function |
|
Steering |
Hydrostatic Steering Acting on Central Joint, Flow Deviator for Steering Unit |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil Bath Discs with Hydrostatic Control, Acting on Four Wheels with Automatic 4WD Engagement, Automatic and Independent Brake-Off Acting as Emergency Brake with Proportional Action |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Options: 250/80-18*280/70R18, 280/70R18*280/70R18 Garden, 280/70R18*320/65R18, 280/70R18*9.50-20 (250/85R20), 280/70R18*300/70R20, 280/70R18*300/70R20 Garden, 280/70R18*340/65R20, 280/70R18*31x15.50-15 XTC, 280/70R18*31x15.50-15 STG, 280/70R18*33x12.50-15 XTC, 280/70R18*280/70R20 PneuTrac |
Components & Features
|
Specification |
Details |
|
Chassis |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation |
|
Drive |
Four-Wheel Drive, Front-Wheel Drive Disengagement with Electro-Hydraulic Control |
|
Differential |
Front and Rear, Differential Lock: Front and Rear Simultaneously or Rear Only with Electro-Hydraulic Control |
|
Axles |
Front and Rear with Planetary Reduction Units |
|
PTO Type |
Rear: Independent, 540/540E (Standard), 540/1000 (Optional), Synchronized with Forwarding Speed, Multidisc in Oil Bath with Electro-Hydraulic Control, Negative Safety Hydraulic Brake |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Power Steering Pump: 33.5 l/min, Lift/Valves Pump: 29.5 l/min (Optional 51 l/min), 180 bar, Standard: 2 Double-Acting and 1 Double-Acting with Float and Free Flow Return (7 Outlets), Optional: Up to 12 Outlets (Up/Down Lift) or 9 Outlets (Draft-Controlled Lift), Optional Proportional Electronic Joystick with 51 l/min Pump, 13 Outlets |
|
Rear Lift |
2,300 kg, Category 1 and 2, Standard: Up/Down with Two External Cylinders, Optional: Position and Draft-Controlled, Normal or Quick-Couplings (L-Shaped, Adjustable in Length/Width), Manual or Hydraulic Third Point Tie Rod |
|
Front Lift |
Optional: 800 kg, Two-Cylinder with Front Bumper, 4 Front Hydraulic Outlets (Replicated from Rear), Rigid Quick-Couplings Cat. 1 |
|
Driving Position |

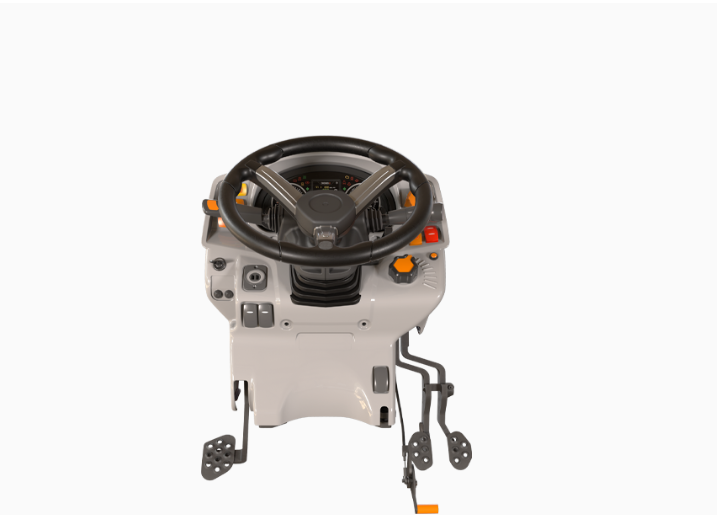

Reversible with Rotating Platform Suspended on Silent Blocks, Suspended Pedals on Rotating Control Tower, Comfort Seat with Gas Spring, Safety Belt, Man-on-Board Sensor (Standard), Optional: ‘Grammer’ or ‘Cobo’ Pneumatic Seat, Optional VISTA PRO Cabin (Pressurized, Cat. 4, Soundproof, Four-Post Monocoque, Silent Blocks, A/C, Ventilation, Heating, Dust Filters Cat. 2, USB Bluetooth Radio, 2 USB Sockets, 10 LED Work Lights, LED Beacon, Optional Active Carbon Filters) |
|
Dashboard |
Instrument Panel with Analogue Gauges, TFT Digital Colour Display, Warning Lights, Horn |
|
Electric System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Full LED Street Lights and Indicator System, Front LED Working Lights, Two USB Sockets on Dashboard, Rear 7-Pin and 3-Pin Sockets |
|
Tow Hooks |
Standard: Front and Rear CUNA Cat. C Adjustable in Height, Optional: Rear EC Approved, EC with Slider Frame, CUNA with Slider Frame, EC Tow Bar with Slider Frame |
|
Safety |
Front Homologated Roll-Bar with Gas Springs for Easy Lowering and Lifting |
|
Additional Options |
Front Bumper, Beacon Lamp, Rear Adjustable Working Light, Self Cleaning System™, Front Weights: 150 kg Total, Wheel Weights: 50 kg Each, Antibounce Kit for Third Point, Silver and Bordeaux ‘Special Edition’ Livery |
|
Weight |
With Roll-Bar: 2,240 kg, With Cabin: 2,390 kg |
|
Wheelbase |
1,495 mm |
|
Ground Clearance |
161–271 mm |
|
Dimensions |
Length: 3,790 mm, Width: 1,127–1,603 mm, Height (Roll-Bar): 2,254–2,364 mm, Height (Cabin): 2,235–2,345 mm |
