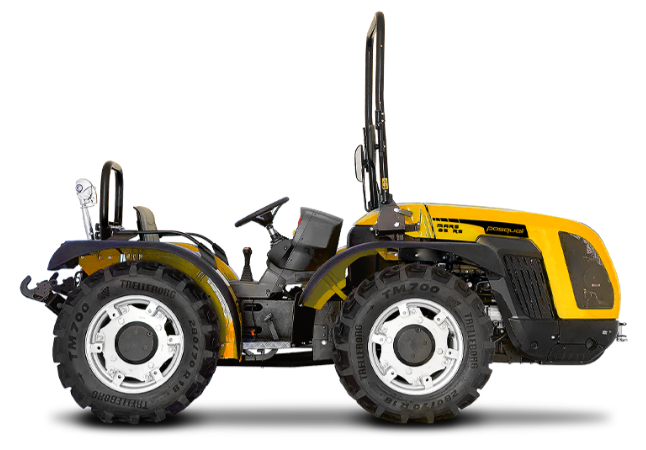

Pasquali Mars K90 RS – 4WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Mars K90 RS |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Municipalities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota V3800-CR-T-EW03, 4-Cylinder, 3,769 cc, Common Rail Direct Injection, Turbo, Liquid-Cooled, Stage V, Counter-Balance Shafts |
|
Maximum Power |
75 HP (54.6 kW) @ 2,400 RPM |
|
Maximum Torque |
305.4 Nm @ 1,500 RPM |
|
Transmission Type |
32-Speed Synchronized Gearbox, 16 FWD + 16 REV with Synchronized Reverser, Min Speed: 0.7 km/h, Max Speed: Not Specified, Multidisc in Oil Bath with Hydraulic Control |
|
Steering |
Hydrostatic Steering with Two Rams Acting on Front Wheels, Flow Deviator for Steering Unit in Reversible Version |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on Rear Wheels, Independent Manoeuvring Brakes Acting on Rear Wheels, Parking Brake Acting on Service Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Options: 280/70R18*340/65R18, 280/70R18*280/70R18 Galaxy Garden, 280/70R18*320/65R18, 280/70R18*300/70R20, 280/70R18*300/70R20 Galaxy Garden, 280/70R18*320/70R20, 280/70R18*340/65R20, 280/70R18*31x15.50-15 XTC, 280/70R18*31x15.50-15 STG, 280/70R18*13.6-16 Garden |
Components & Features
|
Specification |
Details |
|
Chassis |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Drive |
Permanent Four-Wheel Drive |
|
Differential |
Front and Rear with Simultaneous Locking and Electro-Hydraulic Control |
|
Axles |
Front and Rear with Planetary Reduction Units |
|
PTO Type |
Rear: Independent, 540/540E (Standard), 540/1000 (Optional), Synchronized with Forwarding Speed, Multidisc in Oil Bath with Electro-Hydraulic Control, Negative Safety Hydraulic Brake |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Power Steering Pump: 33.1 l/min, Lift/Valves Pump: 27.7 l/min (Optional 49 l/min), 180 bar, Standard: 1 Single-Acting and 2 Double-Acting (6 Outlets), Optional: Up to 7 Outlets (Various Configurations) |
|
Rear Lift |
2,300 kg, Category 1 and 2, Standard: Raising/Lowering with Two External Rams, Optional: Position and Draft Control, Normal or Quick-Couplings (Adjustable or L-Shaped, Adjustable in Length/Width), Manual or Hydraulic Third Point Tie Rod |
|
Front Lift |
Optional: 800 kg, Two External Rams with Front Protection, 2 Double-Acting Control Valves (4 Outlets), Rigid Quick-Couplings Cat. 1 |
|
Driving Position |
Monodirectional or Reversible with Rotating Platform and Twin Pedal Assembly, Comfort Seat with Safety Belt and Man-on-Board Sensor, Optional ‘Kab’ Lowered Seat, Height-Adjustable Steering Wheel |
|
Dashboard |
TFT Colour Display (Hours, Engine RPM, Speed, PTO RPM, Particulate Filter Clogging, Fuel Consumption, Time), Analogue Gauges (Engine RPM, Coolant Temperature, Fuel Level), Warning Lights, Acoustic Alarm |
|
Electric System |
Battery 100 Ah / 12 V, Alternator 95 A, Rear 7-Pin and 3-Pin Sockets |
|
Tow Hooks |
Standard: Front and Rear CUNA, Optional: Rear EC Approved, EC with Slider Frame, CUNA with Slider Frame, EC Tow Bar with Slider Frame |
|
Safety |
Front Homologated Roll-Bar with Gas Springs for Easy Lowering and Lifting |
|
Additional Options |
HDR Hydraulic Suspension with Accumulator (1 Flow Regulator, 1 Double-Acting, 1 Double-Acting with Float), Front Bumper, Beacon Lamp |
|
Weight |
With Roll-Bar: 2,150 kg |
