Specification

Details

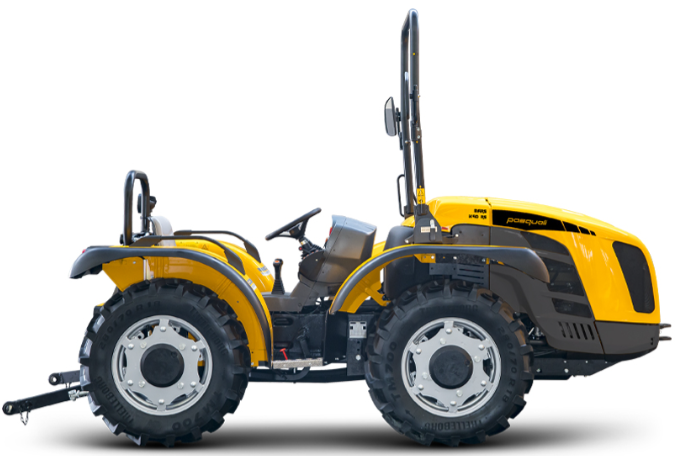

Tractor Model

Pasquali Mars 85 RS

Vehicle Category

Orchard/Vineyard Tractor

Fuel Type

Diesel

Application

Orchards, Vineyards, Greenhouses, Municipalities

Specification

Details

Engine

Kohler KDI 2504 TCR, 4-Cylinder, 2,482 cc, Common Rail Direct Injection, Turbo Intercooler, Liquid-Cooled, Stage V, Counter-Balance Shafts

Maximum Power

75.3 HP (55.4 kW) @ 2,300 RPM

Maximum Torque

300 Nm @ 1,500 RPM

Transmission Type

32-Speed Synchronized Gearbox, 16 FWD + 16 REV with Synchronized Reverser, Min Speed: 0.7 km/h, Max Speed: 40 km/h, Multidisc in Oil Bath with Hydraulic Control

Steering

Hydrostatic Steering with Two Rams Acting on Front Wheels, Flow Deviator for Steering Unit in Reversible Version

Specification

Details

Braking System

Multidisc in Oil Bath with Mechanical Control, Acting on Rear Wheels, Independent Manoeuvring Brakes Acting on Rear Wheels, Parking Brake Acting on Service Brakes

Specification

Details

Tyres

Options: 250/80-18*340/65R18, 250/80-18*280/70R18, 250/80-18*280/70R18 Galaxy Garden, 250/80-18*320/65R18, 250/80-18*250/85R20, 250/80-18*300/70R20, 250/80-18*300/70R20 Galaxy Garden, 250/80-18*320/70R20, 250/80-18*340/65R20, 250/80-18*31x15.50-15 XTC, 250/80-18*31x15.50-15 STG, 250/80-18*33x15.50-15 XTC, 250/80-18*280/70R20 PneuTrac

Specification

Details

Chassis

Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels

Drive

Permanent Four-Wheel Drive

Differential

Front and Rear with Simultaneous Locking and Electro-Hydraulic Control

Axles

Front and Rear with Planetary Reduction Units

PTO Type

Rear: Independent, 540/540E (Standard), 540/1000 (Optional), Synchronized with Forwarding Speed, Multidisc in Oil Bath with Electro-Hydraulic Control, Negative Safety Hydraulic Brake

Hydraulic System

Dual Circuit with Independent Pumps and Heat Exchanger, Power Steering Pump: 33.5 l/min, Lift/Valves Pump: 29.5 l/min (Optional 51 l/min), 180 bar, Standard: 1 Double-Acting with Float (3 Outlets) or 1 Single-Acting and 2 Double-Acting (6 Outlets), Optional: Up to 7 Outlets (Various Configurations)

Rear Lift

2,300 kg, Category 1 and 2, Standard: Raising/Lowering with Two External Rams, Optional: Position and Draft Control, Normal or Quick-Couplings (Adjustable or L-Shaped, Adjustable in Length/Width), Manual or Hydraulic Third Point Tie Rod

Front Lift

Optional: 800 kg, Two External Rams with Front Protection, 2 Double-Acting Control Valves (4 Outlets), Rigid Quick-Couplings Cat. 1 and 2

Driving Position

Monodirectional or Reversible with Rotating Platform and Twin Pedal Assembly, Comfort Seat with Safety Belt and Man-on-Board Sensor, Optional ‘Kab’ Lowered Seat, Standard Fixed Steering Wheel, Optional Height-Adjustable Steering Wheel

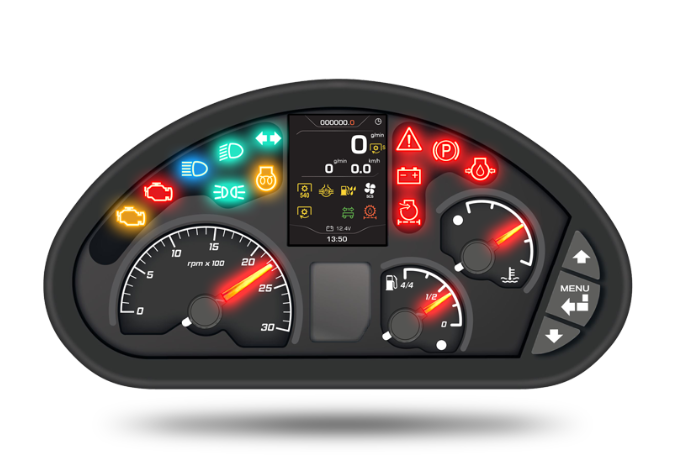

Dashboard

TFT Colour Display (Hours, Engine RPM, Speed, PTO RPM, Particulate Filter Clogging, Fuel Consumption, Battery Voltage, Time), Analogue Gauges (Engine RPM, Coolant Temperature, Fuel Level), Warning Lights, Acoustic Alarm

Electric System

Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Street Light and Indicator System, Single-Pole Dashboard Socket, Rear 7-Pin and 3-Pin Sockets

Tow Hooks

Standard: Front and Rear CUNA Cat. C Adjustable in Height, Optional: Rear EC Approved, EC with Slider Frame, CUNA with Slider Frame, EC Tow Bar with Slider Frame

Safety

Front Homologated Roll-Bar with Gas Springs for Easy Lowering and Lifting

Additional Options

HDR Hydraulic Suspension with Accumulator (1 Flow Regulator, 1 Double-Acting, 1 Double-Acting with Float), Front Bumper, Beacon Lamp, Front LED Working Lights, Rear Adjustable Working Light, Self Cleaning System™, Front Weights: 150 kg, Wheel Weights: 50 kg Each

Weight

With Roll-Bar: 2,090 kg

Wheelbase

1,450 mm

Ground Clearance

210–305 mm

Dimensions

Length: 3,740 mm, Width: 1,291–1,961 mm, Height (Roll-Bar): 2,240–2,364 mm
