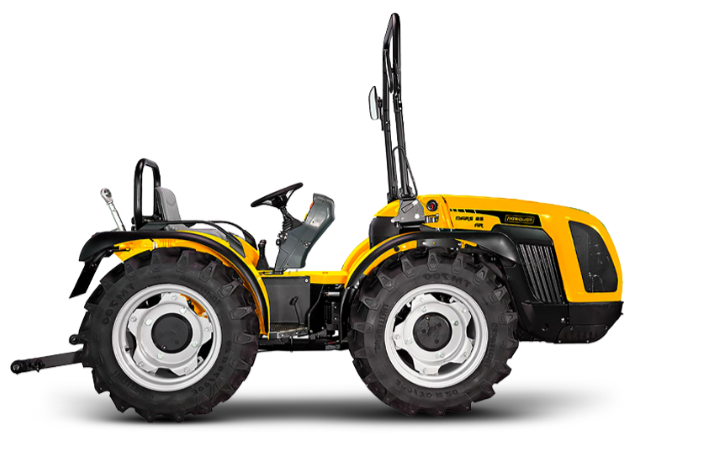

Pasquali Mars 85 AR – 4WD Tractor with Kohler Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Mars 85 AR (4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, 4 cylinders, 2482 cc, Turbo/Intercooler, Stage V, Common rail direct injection (2000 bar), Liquid cooling, Counter-balance shafts, Electronically regulated engine speed via console with increase/decrease, memorize/recall, switch off, and minimum speed functions |
|
Gross Horsepower |
75.3 HP (55.4 kW) at 2300 rpm |
|
Max Torque |
300 Nm at 1500 rpm |
|
Transmission Type |
32-speed synchronised, 16 FWD + 16 REV with synchronised reverser, Min speed: 0.7 km/h, Max speed: 38 km/h, Multidisc in oil bath clutch with hydraulic control |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Comfort seat with adjustable suspension, safety belt, and man-on-board sensor, Optional 'Kab' lowered seat, Monodirectional or reversible rotating platform with twin pedal assembly |
|
Braking System |
Multidisc in oil bath with mechanical control, acting on rear wheels, Parking brake acting on service brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
250/80-18, 280/70R18, 280/70R18 Galaxy Garden, 250/85R20, 300/70R20, 300/70R20 Galaxy Garden, 320/65R18, 340/65R18, 340/65R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC, 280/70R20 PneuTrac |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E (standard), 540/1000 (optional), Independent, Multidisc in oil bath with electro-hydraulic control, Negative safety hydraulic brake, Synchronised with forwarding speed |
|
Hydraulic System |
Dual circuit with independent pumps and heat exchanger, Power steering pump: 33.5 L/min, Lift and control valves: 29.5 L/min (optional 51 L/min), Max pressure: 180 bar, Standard: 1 double-acting with float + free flow oil return (3 outlets) for ram lift, or 2 double-acting + free flow oil return (5 outlets) for draft/position control lift, Optional: up to 7 outlets for ram lift or 5 outlets for draft/position control lift |
|
Hitch |
Category 1 and 2, Raising/lowering with two external rams (standard), Optional position and draft control, Ball joint lifting capacity: 2300 kg, Standard: manual third point tie rod, Optional: hydraulically controlled upper link and tie rod link arm, Optional front lift with 800 kg capacity and 4 front outlets |
|
Fuel Tank Capacity |
58 L |
|
Weight |
2170 kg (with roll-bar) |
|
Width |
1125-1707 mm |
|
Wheelbase |
1365 mm |
|
Track Width |
Front/Rear: 880-1364 mm |
|
Max Length |
3740 mm |
|
Max Height |
2240-2350 mm (with roll-bar) |
|
Features |
Swinging integral OS-Frame chassis (±15°) with central articulation, Permanent four-wheel drive, Front and rear differential lock with simultaneous electro-hydraulic control, TFT colour display (hours, engine rpm, speed, PTO rpm, particulate filter status, fuel consumption, battery voltage, time), Analogue instrumentation (engine rpm, coolant temperature, fuel level), Vehicle Control Unit, Street light and indicator system, Single-pole dashboard socket, Rear 7-pin and 3-pin sockets, Front homologated roll-bar with gas springs, Optional front bumper, Optional front LED working lights, Optional rear adjustable working light, Optional Self Cleaning System™, Optional front weights (150 kg total), Optional wheel weights (50 kg each) |
