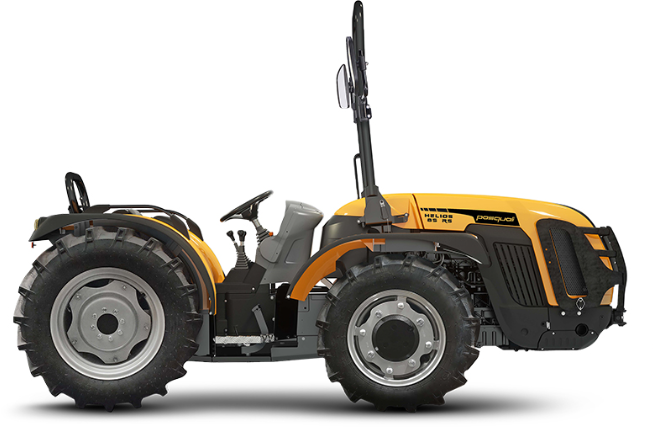

Pasquali Helios 85 RS – 4WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Helios 85 RS |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Municipalities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, 4-Cylinder, 2,482 cc, Common Rail Direct Injection, Turbo Intercooler, Liquid-Cooled, Stage V |
|
Maximum Power |
75.3 HP (55.4 kW) @ 2,300 RPM |
|
Maximum Torque |
300 Nm @ 1,500 RPM |
|
Transmission Type |
32-Speed Synchronized Gearbox, 16 FWD + 16 REV with Synchronized Reverser, Min Speed: 0.7 km/h, Max Speed: 40 km/h, Multidisc in Oil Bath with Hydraulic Control |
|
Steering |
Hydrostatic Steering Acting on Front Wheels |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on Rear Wheels with Automatic 4WD Engagement, Independent Manoeuvring Brakes, Parking Brake with Lever Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Options: 260/70R16*300/70R20, 260/70R16*340/65R20, 250/80-16*320/85R20, 280/70R18*360/70R20, 280/70R18*420/65R20, 250/80R18*280/85R24, 320/65R18*320/70R24, 320/65R18*380/70R20, 280/70R18*380/70R20, 280/70R18*320/70R24, 280/70R18*320/85R20 |
Components & Features
|
Specification |
Details |
|
Chassis |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Drive |
Four-Wheel Drive, Front-Wheel Drive Disengagement with Electro-Hydraulic Control |
|
Differential |
Front and Rear, Differential Lock: Front and Rear Simultaneously or Rear Only with Electro-Hydraulic Control |
|
Axles |
Front with Planetary Reduction Units, Rear with Bull-Gear Units |
|
PTO Type |
Rear: Independent, 540/540E (Standard), 540/1000 (Optional), Synchronized with Forwarding Speed, Multidisc in Oil Bath with Electro-Hydraulic Control, Negative Safety Hydraulic Brake |
|
Hydraulic System |
Dual Circuit with Independent Pumps, Power Steering Pump: 33.5 l/min, Lift/Valves Pump: 29.5 l/min (Optional 51 l/min), 180 bar, 1 Double-Acting with Float and Free Flow Return (Standard, 3 Outlets), Optional: 2 Double-Acting or 1 Double-Acting + 1 with Lockable Position (7 Outlets) |
|
Rear Lift |
2,700 kg, Category 1 and 2, Standard: Up/Down with Two External Cylinders, Optional: Position and Draft-Controlled, Normal or Quick-Coupling Arms (Fixed or L-Shaped), Manual or Hydraulic Third Point Tie Rod |
|
Driving Position |
Monodirectional with Footstep, Comfort Seat with Adjustable Spring Tension, Safety Belt, Man-on-Board Sensor, Optional Ultra-Low Profile Cabin (170 cm Height, Monocoque Chassis, Suspended Platform, Compact Clima or Compact Pro with Air Conditioning, Ventilation, Heating, Pressurized Cat. 4 with Digital Control, Active Carbon Filters, USB Car Radio, LED Work Lights, Exterior Mirrors, Two USB Sockets), Standard Fixed Steering Wheel, Optional Height-Adjustable Steering Wheel |
|
Dashboard |
Instrument Panel with Analogue Gauges, TFT Digital Colour Display, Warning Lights, Horn |
|
Electric System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Street Light and Indicator System, Single-Pole Dashboard Socket, Rear 7-Pin and 3-Pin Sockets |
|
Tow Hooks |
Standard: Front and Rear CUNA Cat. C Adjustable in Height, Optional: Rear EC Approved, EC with Slider Frame, CUNA with Slider Frame, EC Tow Bar with Slider Frame |
|
Safety |
Front Homologated Roll-Bar with Gas Springs for Easy Lowering and Lifting |
|
Additional Options |

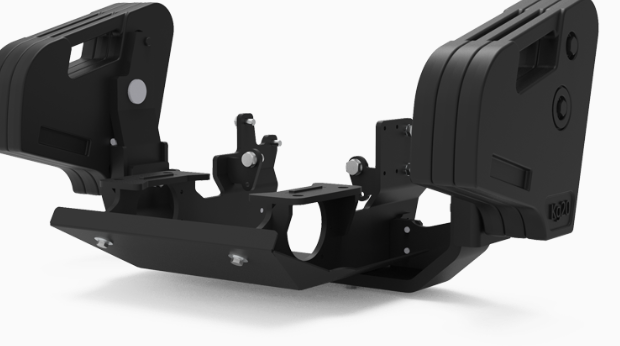

Self Cleaning System™, Front Bumper, Beacon Lamp, Front LED Working Lights, Rear Adjustable Working Light, Front Weights: 150 kg Total, Weights: 50 kg Each for 18" Front Wheels, Cast Iron Flange: 50 kg Each for 20" Rear Wheels, 70 kg Each for 24" Rear Wheels |
|
Weight |
With Roll-Bar: 2,260 kg, With Cabin: 2,380 kg |
|
Wheelbase |
1,607 mm |
|
Ground Clearance |
200–235 mm |
|
Dimensions |
Length: 3,935 mm, Width: 1,322–1,908 mm, Height (Roll-Bar): 2,195–2,320 mm, Height (Cabin): 1,700 mm |
