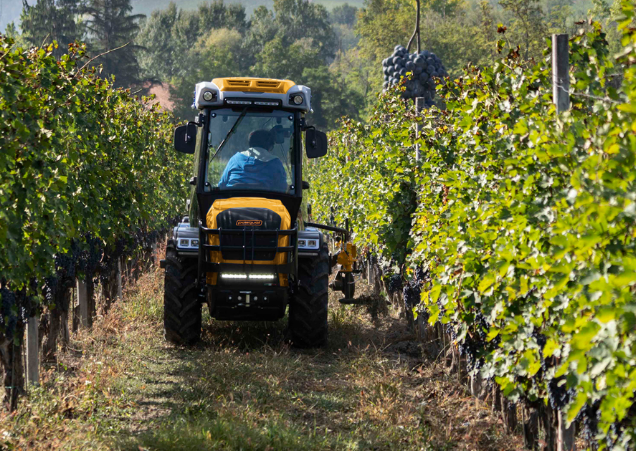

Pasquali Ermes 70 RS – 4WD Tractor with Kohler Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Ermes 70 RS (4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, 4 cylinders, 2482 cc, Turbo intercooler, Stage V, Diesel common rail direct injection, Liquid cooling, Electronically regulated engine speed with hand throttle knob and button for memorize/recall/exclude functions |
|
Gross Horsepower |
63 HP (46 kW) at 2600 rpm |
|
Max Torque |
205 Nm at 1500 rpm |
|
Transmission Type |
24-speed synchronised, 12 FWD + 12 REV with synchronised reverser, Min speed: 0.7 km/h, Max speed: 35 km/h, Multidisc in oil bath clutch with electronically-managed proportional hydraulic control, Power Clutch System, PRO-ACT System with Easy Plus™ assisted engagement, Smart Brake & Go function |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Reversible rotating platform suspended on silent blocks, Comfort seat with gas spring, safety belt, and man-on-board sensor, Optional 'Grammer' or 'Cobo' pneumatic seat, Optional VISTA or VISTA PRO cab (pressurized, Category 4, requires active carbon filters) with four-upright conical monocoque frame on silent blocks |
|
Braking System |
Oil bath discs with hydrostatic control, acting on rear wheels, Independent maneuvering brakes on rear wheels, Parking brake with handle acting on service brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
7.00-18, 250/80-18, 280/70R18, 280/70R18 Garden, 320/65R18, 340/65R18, 260/70R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC, 280/70R20, 280/70R20 PneuTrac, 250/85R20 (9.50-20), 300/70R20, 300/70R20 Garden |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E, Independent, Multidisc in oil bath with electro-hydraulic control, Negative safety hydraulic brake, Synchronised with forwarding speed |
|
Hydraulic System |
Dual circuit with independent pumps and heat exchanger, Power steering pump: 13 L/min, Lift and control valves: 37 L/min (optional 48 L/min), Max pressure: 180 bar, Standard: 1 double-acting with float and free flow oil return (3 outlets), Optional: up to 11 outlets (with up/down lift) or 7 outlets (with draft-controlled lift), Optional joystick with 4 double-acting, 1 continuous flow, 10 outlets total |
|
Hitch |
Category 1, Standard: normal couplings, Optional: quick-couplings cat. 1 (non-adjustable) or cat. 1 and 2 (L-shaped, adjustable arms and hooks), Up/down lift with two external cylinders (standard), Optional position and draft-controlled, Ball joint lifting capacity: 1900 kg, Standard: manual third point tie rod, Optional: hydraulically controlled upper link and tie rod link arm |
|
Weight |
1830 kg (with roll-bar), 1960 kg (with cabin) |
|
Width |
1150-1764 mm |
|
Wheelbase |
1314 mm |
|
Track Width |
Front/Rear: 972-1478 mm |
|
Max Length |
3529 mm |
|
Max Height |
2215-2300 mm (with roll-bar), 2145-2230 mm (with cabin) |
|
Features |
Swinging integral OS-Frame chassis (±15°) with steering wheels, Permanent four-wheel drive, Front and rear differential lock with electro-hydraulic control, Instrument panel with analogue gauges and TFT digital colour display (hours, engine rpm, speed, PTO rpm, fuel consumption, battery voltage, time), Vehicle Control Unit, Full LED street lights and indicator system, Front LED working lights, USB car radio with speaker phone, 2 USB outlets, Rear 7-pin and 3-pin sockets, Optional Self Cleaning System™, Optional full LED working lights on four sides, Optional front bumper, Optional rear adjustable working light, Optional front weights (110 kg), Optional wheel weights (45 kg for 18" wheels, 50 kg for 20" wheels), Optional Dual Floating System™ hydraulic suspension, Optional silver and bordeaux 'Special Edition' livery |
