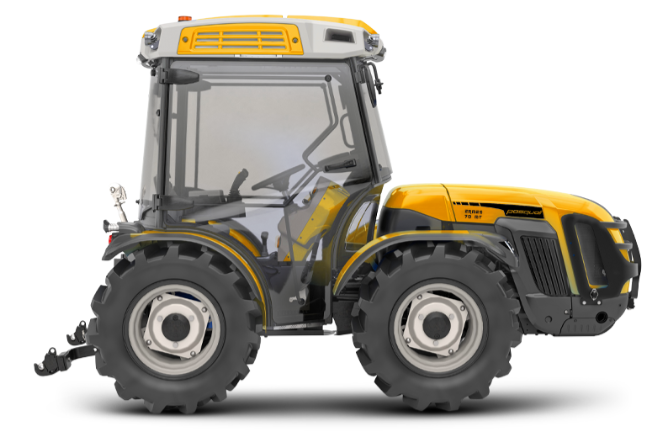

Pasquali Ermes 70 MT – 4WD Tractor with Kohler Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Ermes 70 MT (4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mountainous Areas, Orchards, Vineyards, Greenhouses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, 4 cylinders, 2482 cc, Turbo intercooler, Stage V, Diesel common rail direct injection, Liquid cooling, Electronically regulated engine speed with hand throttle knob and button for memorize/recall/exclude functions |
|
Gross Horsepower |
63 HP (46 kW) at 2600 rpm |
|
Max Torque |
205 Nm at 1500 rpm |
|
Transmission Type |
24-speed synchronised, 12 FWD + 12 REV with synchronised reverser, Min speed: 0.7 km/h, Max speed: 35 km/h, Multidisc in oil bath clutch with electronically-managed proportional hydraulic control, Power Clutch System, PRO-ACT System with Easy Plus™ assisted engagement, Smart Brake & Go function |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Reversible rotating platform suspended on silent blocks, Comfort seat with gas spring, safety belt, and man-on-board sensor, Optional 'Grammer' or 'Cobo' pneumatic seat, Standard VISTA cab or optional VISTA PRO cab (pressurized, Category 4, requires active carbon filters) with four-upright conical monocoque frame on silent blocks |
|
Braking System |
Oil bath discs with hydrostatic control, acting on rear wheels, Independent maneuvering brakes on rear wheels, Parking brake with handle acting on service brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E, Independent, Multidisc in oil bath with electro-hydraulic control, Negative safety hydraulic brake, Synchronised with forwarding speed |
|
Hydraulic System |
Dual circuit with independent pumps and heat exchanger, Power steering pump: 13 L/min, Lift and control valves: 37 L/min (optional 48 L/min), Max pressure: 180 bar, Standard: 1 double-acting with float and free flow oil return (3 outlets), Optional: up to 7 outlets |
|
Hitch |
Category 1 and 2, Four external cylinders with Dual Floating System® hydraulic suspension, Ball joint lifting capacity: 1900 kg, Standard: quick-couplings cat. 1 and 2, L-shaped, adjustable arms and hooks, Optional: quick-couplings cat. 1 (non-adjustable arms), Standard: manual third point tie rod, Optional: hydraulically controlled upper link and tie rod link arm |
|
Weight |
1960 kg (with cabin) |
|
Width |
1684-1710 mm |
|
Wheelbase |
1314 mm |
|
Track Width |
Front/Rear: 1316 mm |
|
Max Length |
3529 mm |
|
Max Height |
2145-2195 mm (with cabin) |
|
Features |

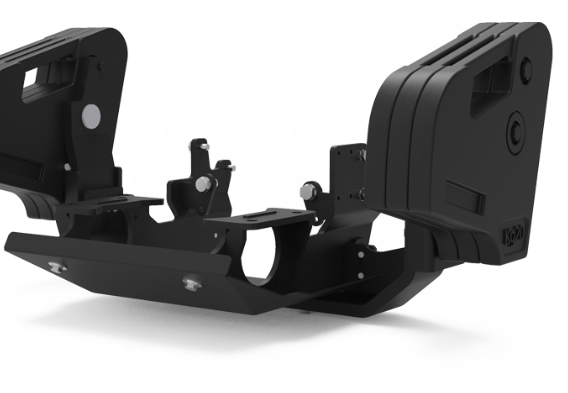

Swinging integral OS-Frame chassis (±15°) with steering wheels, Permanent four-wheel drive, Front and rear differential lock with simultaneous electro-hydraulic control, Self Cleaning System™ for radiator and intake grille, Instrument panel with analogue gauges and TFT digital colour display (hours, engine rpm, speed, PTO rpm, particulate filter status, fuel consumption, battery voltage, time), Vehicle Control Unit, Full LED street lights and indicator system, Front LED working lights, USB car radio with speaker phone, 2 USB outlets, Rear 7-pin and 3-pin sockets, Optional full LED working lights on four sides, Optional front bumper, Optional front weights (110 kg), Optional silver and bordeaux 'Special Edition' livery |
