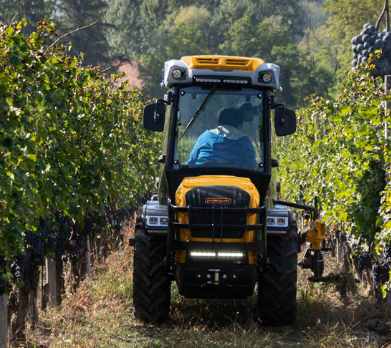

Pasquali Era 35 – 4WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Era 35 |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Gardens, Greenhouses, Municipalities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDW 1404, 4-Cylinder, 1,372 cc, Direct Injection, Natural Aspiration, Liquid-Cooled, Stage V |
|
Maximum Power |
25.6 HP (18.8 kW) @ 3,000 RPM |
|
Maximum Torque |
78 Nm @ 2,000 RPM |
|
Transmission Type |
24-Speed Synchronized Gearbox, 12 FWD + 12 REV with Synchronized Reverser, Min Speed: 0.7 km/h, Max Speed: 28 km/h, Dual Disc with Pedal Control for Gearbox, Hand Lever for PTO |
|
Steering |
Hydrostatic Steering Acting on Front Wheels |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Rear Multidisc in Oil Bath, Independent Manoeuvring Brakes Acting on Rear Wheels, Parking Brake Acting on Service Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Tractor: 6.5/80-12*250/80-18, 23x8.50-12*280/70R18, 7.00-12*300/70R20; Garden: 25x8.50-14*380/70D-15 (36x13.50-15) |
Components & Features
|
Specification |
Details |
|
Chassis |
Rigid with Steering Wheels |
|
Drive |
Four-Wheel Drive with Front-Wheel Drive Disengagement |
|
Differential Lock |
Rear with Mechanical Control |
|
Axles |
Front: Steering, Portal Axle with Bevel Drive Gear Set and Lateral Bull-Gear Units; Rear: with Planetary Reduction Units |
|
PTO Type |
Rear: Independent, 540 RPM, Synchronized with Forwarding Speed, Mechanical Engagement Control |
|
Hydraulic System |
Hydraulic Gear Pump, 19.3 l/min, 110 bar, Standard: 1 Double-Acting (2 Outlets), Optional: Up to 6 Outlets (Up/Down Lift) or 4 Outlets (Draft-Controlled Lift) |
|
Rear Lift |
750 kg, Category 1, Standard: Up/Down with Two External Cylinders, Optional: Position and Draft-Controlled, Normal Couplings, Manual Third Point Tie Rod |
|
Front Lift |
Optional: 350 kg, Category 1N Couplings, Front and Under-Belly PTO at 1,700 RPM |
|
Driving Position |
Monodirectional, Upholstered Seat with Safety Belt and Man-on-Board Sensor, Cushioned, Adjustable Springs and Positions, Standard Fixed Steering Wheel, Optional Height-Adjustable Steering Wheel |
|
Dashboard |
Instrumentation with Fuel Level, Engine Coolant Temperature, Engine RPM, Operating Hours, Warning Lights |
|
Electric System |
Battery: 45 Ah / 12 V, Alternator: 30 A, Street Light and Indicator System, 12V Auxiliary Power Outlet, Rear 7-Pin Socket |
|
Tow Hooks |
Standard: Front and Rear CUNA Cat. B Adjustable in Height, Optional: Rear EC Approved |
|
Safety |
Front Homologated Roll-Bar with Gas Spring for Easy Lowering and Lifting |
|
Additional Options |
1,700 RPM Under-Belly PTO, Adjustable Rear Working Light, Beacon Lamp, Front Weights: 60 kg Total, Rear Wheel Weights: 45 kg Each |
|
Weight |
With Roll-Bar: 1,100 kg |
|
Wheelbase |
1,553 mm |
|
Ground Clearance |
206–246 mm |
|
Dimensions |
Length: 2,707 mm, Width: 1,022–1,513 mm, Height (Roll-Bar): 1,985–2,505 mm |
