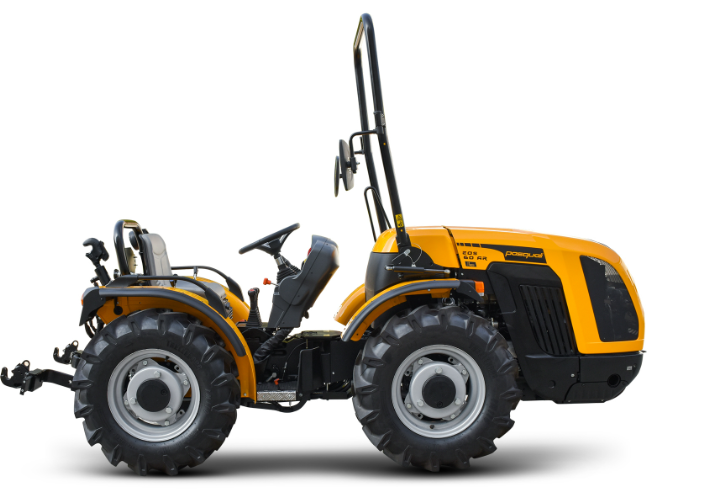

Pasquali Eos 60 AR Micro – 4WD Tractor with Kohler Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Eos 60 AR Micro (4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Small-Scale Farming |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 1903 TCA, 3 cylinders, 1861 cc, Turbo intercooler, Stage V, Diesel common rail direct injection, Liquid cooling |
|
Gross Horsepower |
49 HP (36 kW) at 2600 rpm |
|
Max Torque |
190 Nm at 1500 rpm |
|
Transmission Type |
24-speed synchronised, 12 FWD + 12 REV with synchronised reverser, Min speed: 0.7 km/h, Max speed: 35 km/h, Multidisc in oil bath clutch |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Comfort seat with adjustable suspension, safety belt, and man-on-board sensor, Rotating platform with twin pedal assembly |
|
Braking System |
Multidisc in oil bath with mechanical control, acting on rear wheels, Parking brake acting on service brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
8.25-16, 7.00-18, 210/95R18 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540 rpm, Independent, Multidisc in oil bath with electro-hydraulic control, Negative safety hydraulic brake, Synchronised with forwarding speed |
|
Hydraulic System |
Dual circuit with independent pumps, Power steering pump: 17.5 L/min, Lift and control valves: 23 L/min (optional PREMIUM system with 33.5 L/min and heat exchanger), Max pressure: 180 bar, Standard: 1 double-acting (2 outlets) with up/down lift or 1 double-acting and 1 double-acting with float (4 outlets) with draft-controlled lift, Optional: up to 7 outlets with free flow oil return |
|
Hitch |
Category 1, Up/down lift with two external cylinders (standard), Optional position and draft-controlled, Ball joint lifting capacity: 1200 kg, Standard: manual third point tie rod, Optional: hydraulically controlled upper link and tie rod link arm with quick-couplings |
|
Weight |
1590 kg (with roll-bar) |
|
Width |
950-1322 mm |
|
Wheelbase |
1248 mm |
|
Track Width |
Front/Rear: 770-1130 mm |
|
Max Length |
3367 mm |
|
Max Height |
2251-2274 mm (with roll-bar) |
|
Features |
Swinging integral OS-Frame chassis (±15°) with central articulation, Permanent four-wheel drive, Front and rear differential lock with simultaneous electro-hydraulic control, Instrument panel with analogue gauges and TFT digital colour display (hours, engine rpm, speed, PTO rpm, fuel consumption, battery voltage, time), Vehicle Control Unit, Street light and indicator system, Single-pole dashboard socket, Rear 7-pin socket, Front homologated roll-bar with gas spring, Optional front bumper, Optional rear adjustable working light, Optional front weights (110 kg total) |
