Specification

Details

Tractor Model

Pasquali Dionis K90 RS

Vehicle Category

Orchard/Vineyard Tractor

Fuel Type

Diesel

Application

Orchards, Vineyards, Greenhouses, Municipalities

Specification

Details

Engine

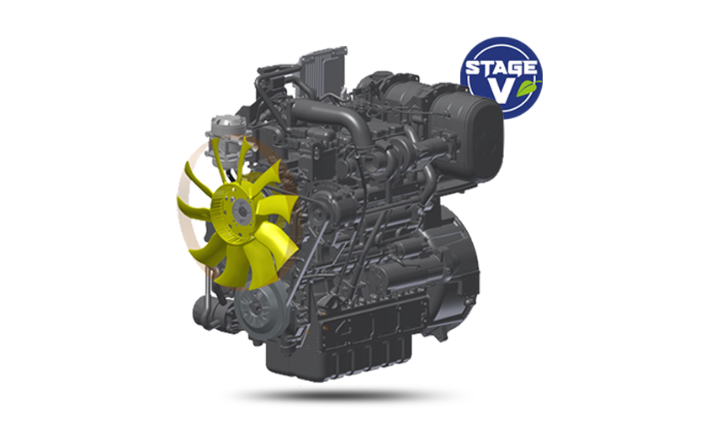

Kubota V3800-CR-T-EW03, 4-Cylinder, 3,769 cc, Common Rail Direct Injection, Turbo, Liquid-Cooled, Stage V

Maximum Power

75 HP (54.6 kW) @ 2,400 RPM

Maximum Torque

305.4 Nm @ 1,500 RPM

Transmission Type

32-Speed Synchronized Gearbox, 16 FWD + 16 REV with Synchronized Reverser, Min Speed: 0.7 km/h, Max Speed: 40 km/h, Multidisc in Oil Bath with Electronically-Managed Hydraulic Control, PRO-ACT System, Optional EasyDrive® Power Shuttle with Slow/Quick Reverse Modes

Steering

Hydrostatic Steering Acting on Front Wheels

Specification

Details

Braking System

Oil Bath Discs with Hydrostatic Control, Acting on Four Wheels with Automatic 4WD Engagement, Independent Manoeuvring Brakes Acting on Rear Wheels, Parking Brake: Standard Lever Control, Optional Automatic Brake-Off (Standard with Cab)

Specification

Details

Tyres

Options: 260/70R16*300/70R20, 260/70R16*340/65R20, 280/70R18*360/70R20, 280/70R18*320/70R24, 320/65R18*380/70R20, 340/65R18*420/65R24, 320/65R18*320/70R24, 280/70R18*380/70R20

Specification

Details

Chassis

Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels

Drive

Four-Wheel Drive, Front-Wheel Drive Disengagement with Electro-Hydraulic Control

Differential

Front and Rear, Differential Lock: Front and Rear Simultaneously or Rear Only with Electro-Hydraulic Control

Axles

Front with Planetary Reduction Units, Rear with Bull-Gear Units

PTO Type

Rear: Independent, 540/540E (Standard), 540/1000 (Optional), Synchronized with Forwarding Speed, Multidisc in Oil Bath with Electro-Hydraulic Control, Negative Safety Hydraulic Brake

Hydraulic System

Double Circuit with Independent Pumps and Heat Exchanger, Power Steering Pump: 33.1 l/min, Lift/Valves Pump: 27.7 l/min (Optional 49 l/min), 180 bar, Standard: 2 Double-Acting with Free Flow Return (5 Outlets), Optional: Up to 9 Outlets, Optional Proportional Electronic Joystick with Adjustable Flow Rate and 49 l/min Pump

Rear Lift

2,700 kg, Category 1 and 2, Standard: Up/Down with Two External Cylinders, Optional: Position and Draft-Controlled, Normal or Quick-Coupling Arms (Fixed or L-Shaped, Adjustable in Length/Width), Manual or Hydraulic Third Point Tie Bar

Front Lift

Optional: 800 kg, Two-Cylinder with Front Bumper, 4 Front Hydraulic Outlets (Replicated from Rear), Rigid Quick Couplings Cat. 1

Driving Platform

Monodirectional with Platform Suspended on Silent-Blocks, Suspended Pedals on Control Tower, Comfort Seat with Safety Belt and Man-on-Board Sensor (Standard), Optional: ‘Grammer’ Pneumatic Seat, Optional Compact Pro Low-Profile Cabin (Pressurized, Cat. 4, Soundproof, Monocoque, Silent-Blocks, Air Conditioning, Brake-Off Parking Brake, Optional Active Carbon Filters)

Dashboard

Analogue Gauges with TFT Digital Colour Display, Warning Lights, Horn

Electric System

Battery 100 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Full LED Street Lights and Indicator System, Front LED Working Lights, Rear 7-Pin and 3-Pin Sockets

Tow Hooks

Standard: Front and Rear CUNA Cat. C Adjustable in Height, Optional: Rear EC Approved, EC with Slider Frame, CUNA with Slider Frame, EC Tow Bar with Slider Frame

Safety

Front Homologated Roll-Bar with Gas Springs for Easy Lowering and Lifting

Additional Options

Front Bumper, Beacon Lamp, Front Plate for Implements Connection, Front Weights: 150 kg, Wheel Weights: 50 kg Each for 18" Front Wheels, Cast Iron Flange: 50 kg Each for 20" Rear Wheels, 70 kg Each for 24" Rear Wheels, Silver and Bordeaux ‘Special Edition’ Livery

Weight

With Roll-Bar: 2,520 kg, With Cabin: 2,700 kg

Wheelbase

1,607 mm

Ground Clearance

157–257 mm

Dimensions

Length: 3,923 mm, Width: 1,340–1,860 mm, Height (Roll-Bar): 2,216–2,316 mm, Height (Cabin): 1,792–1,857 mm
