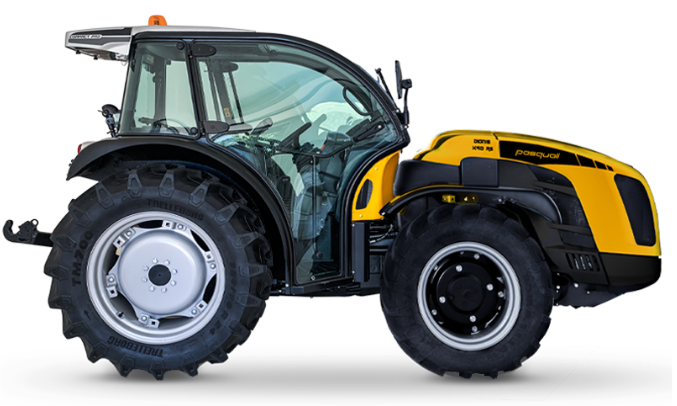

Pasquali Dionis K90 DUALSTEER® – 4WD Tractor with Kubota Engine
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Dionis K90 DUALSTEER® (4WD) |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Olive Groves, Greenhouses, Canopy Plantations |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota V3800-CR-T-EW03, 4 cylinders, 3769 cc, Turbo, Stage V, Diesel common rail direct injection, Liquid cooling, Electronically regulated engine speed via console with increase/decrease, memorize/recall, switch off, and minimum idle speed functions |
|
Gross Horsepower |
75 HP (54.6 kW) at 2400 rpm |
|
Max Torque |
305.4 Nm at 1500 rpm |
|
Transmission Type |
32-speed synchronised, 16 FWD + 16 REV with synchronised reverser, Min speed: 0.7 km/h, Max speed: 40 km/h, Multidisc in oil bath clutch with electronically-managed proportional hydraulic control and PRO-ACT System, Optional EASYDRIVE® electro-hydraulic power shuttle with slow/quick reverse modes |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Platform suspended on silent-blocks, Comfortable sprung seat with safety belt and man-on-board sensor, Optional 'Grammer' pneumatic seat, Optional Compact Pro low-profile pressurized cab (Category 4, requires activated carbon filters) with monocoque body on silent-blocks |
|
Braking System |
Oil bath discs with hydrostatic control, acting on four wheels with automatic 4WD engagement, Independent maneuvering brakes on rear wheels, Parking brake acting on rear transmission with lever control, Optional automatic Brake-Off with proportional action (standard with cab) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Front: 260/70R16, 280/70R18, 320/65R18, 340/65R18; Rear: 300/70R20, 340/65R20, 360/70R20, 320/70R24, 380/70R20, 420/65R24 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E (standard), 540/1000 (optional), Independent, Multidisc in oil bath with electro-hydraulic control, Negative safety hydraulic brake, Synchronised with forwarding speed |
|
Hydraulic System |
Double circuit with independent pumps and heat exchanger, Power steering pump: 33.1 L/min, Lift and control valves: 27.7 L/min (optional 49 L/min), Max pressure: 180 bar, Standard: 2 double-acting with free flow oil return (5 outlets), Optional: up to 9 outlets, Optional joystick with proportional electronic control (1 continuous flow, 3 double-acting, 49 L/min pump) |
|
Hitch |
Category 1 and 2, Up/down lift with two external cylinders (standard), Optional position and draft-controlled, Ball joint lifting capacity: 2700 kg, Standard: manual third point tie bar, Optional: hydraulically controlled upper link and tie rod link arm, Optional front lift with 800 kg capacity and 4 front outlets |
|
Weight |
2570 kg (with roll-bar), 2700 kg (with cab) |
|
Width |
1350-1878 mm |
|
Wheelbase |
1348 mm |
|
Track Width |
Front: 1098-1538 mm; Rear: 1034-1518 mm |
|
Max Length |
3923 mm |
|
Max Height |
2216-2316 mm (with roll-bar), 1792-1857 mm (with cab) |
|
Features |
Swinging integral OS-Frame chassis (±15°) with central articulation and steering wheels, DUALSTEER® double steering system with 4-cylinders, Front-wheel drive disengagement with electro-hydraulic control, Front and rear differential lock with electro-hydraulic control, Instrument panel with analogue gauges and TFT digital colour display (hours, engine rpm, speed, PTO rpm, fuel consumption, battery voltage, time), Full LED street lights and indicator system, Front LED working lights, Rear 7-pin and 3-pin sockets, Optional front bumper, Optional front plate for implements, Optional front weights (150 kg), Optional wheel weights (50 kg each for 18" front wheels, 50 kg or 70 kg each for 20" or 24" rear wheels), Optional silver and bordeaux ‘Special Edition’ livery |
