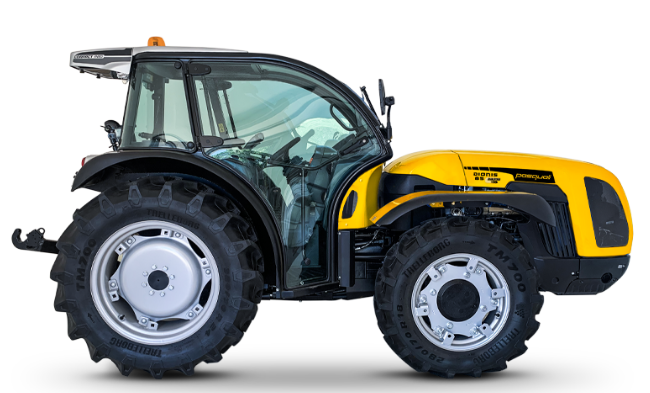

Pasquali Dionis 85 Dualsteer® – 4WD Orchard/Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Pasquali Dionis 85 Dualsteer® |
|
Vehicle Category |
Orchard/Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Municipalities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

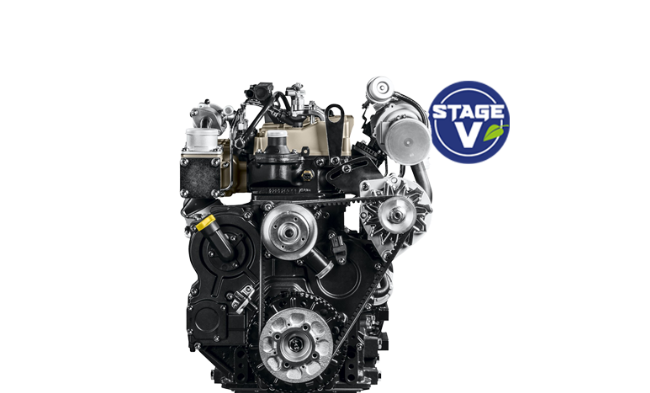

Kohler KDI 2504 TCR, 4-Cylinder, 2,482 cc, Common Rail Direct Injection (2000 bar), Turbo Intercooler, Liquid-Cooled, Stage V, Counter-Balance Shafts |
|
Maximum Power |
75.3 HP (55.4 kW) @ 2,300 RPM |
|
Maximum Torque |
300 Nm @ 1,500 RPM |
|
Transmission Type |
32-Speed Synchronized Gearbox, 16 FWD + 16 REV with Synchronized Reverser, Min Speed: 0.7 km/h, Max Speed: 40 km/h, Multidisc in Oil Bath with Electronically-Managed Hydraulic Control, Optional EasyDrive® Power Shuttle with 5-Level Reactivity, Power Clutch System, PRO-ACT System with Easy Plus™ Engagement, Smart Brake & Go Function |
|
Steering |
Double Steering System Dualsteer® with 4-Cylinders, Hydrostatic Steering Acting on Front Wheels and Central Joint |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil Bath Discs with Hydrostatic Control, Acting on Four Wheels with Automatic 4WD Engagement, Independent Manoeuvring Brakes Acting on Rear Wheels, Parking Brake: Standard Lever Control, Optional Automatic Brake-Off (Standard with Cab) |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Options: 260/70R16*300/70R20, 260/70R16*340/65R20, 280/70-18*360/70R20, 280/70-18*320/70R24, 320/65R18*380/70R20, 320/65R18*320/70R24, 340/65R18*420/65R24, 280/70R18*380/70R20 |
Components & Features
|
Specification |
Details |
|
Chassis |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation and Steering Wheels |
|
Drive |
Four-Wheel Drive, Front-Wheel Drive Disengagement with Electro-Hydraulic Control |
|
Differential |
Front and Rear, Differential Lock: Front and Rear Simultaneously or Rear Only with Electro-Hydraulic Control |
|
Axles |
Front with Planetary Reduction Units, Rear with Bull-Gear Units |
|
PTO Type |
Rear: Independent, 540/540E (Standard), 540/1000 (Optional), Synchronized with Forwarding Speed, Multidisc in Oil Bath with Electro-Hydraulic Control, Negative Safety Hydraulic Brake |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Power Steering Pump: 33.5 l/min, Lift/Valves Pump: 29.5 l/min (Optional 51 l/min), 180 bar, Standard: 2 Double-Acting + Free Flow Return (5 Outlets), Optional: 1 Single-Acting + 1 Double-Acting (8 Outlets) or 1 Double-Acting + 1 Double-Acting with Float (9 Outlets), Optional Proportional Electronic Joystick with Adjustable Flow |
|
Rear Lift |
2,700 kg, Category 1 and 2, Standard: Raising/Lowering with Two External Rams, Optional: Position and Draft Control, Normal or Quick-Coupling Arms (Fixed or L-Shaped), Manual or Hydraulic Third Point Tie Rod |
|
Front Lift |
Optional: 800 kg, Two Rams with Front Protection, 2 Double-Acting Control Valves (4 Outlets), Rigid Third Point Arms with Quick-Couplings Cat. 1 and 2 |
|
Driving Position |
Monodirectional with Platform Suspended on Silent-Blocks, Suspended Pedals on Control Tower, Comfort Seat with Safety Belt and Man-on-Board Sensor (Standard), Optional: Lowered ‘Kab’ Seat or ‘Grammer’ Pneumatic Seat, Optional Compact Pro Low-Profile Cabin (Pressurized, Cat. 4, Soundproof, Monocoque, Silent-Blocks, Air Conditioning, Brake-Off Parking Brake, Optional Active Carbon Filters) |
|
Dashboard |
TFT Colour Display (Hours, Engine RPM, Speed, PTO RPM, Particulate Filter Clogging, Fuel Consumption, Battery Voltage, Time), Analogue Gauges (Engine RPM, Coolant Temperature, Fuel Level), Warning Lights, Acoustic Alarm |
|
Electric System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Street Light and Indicator System, Front LED Working Lights, Single-Pole Dashboard Socket, Rear 7-Pin and 3-Pin Sockets |
|
Tow Hooks |
Standard: Front and Rear CUNA Cat. C Adjustable in Height, Optional: Rear EC Approved, EC with Slider Frame, CUNA with Slider Frame, EC Tow Bar with Slider Frame |
|
Safety |
Front Homologated Roll-Bar with Gas Springs for Easy Lowering and Lifting |
|
Additional Options |
Front Bumper, Beacon Lamp, Rear Adjustable Working Light, Self Cleaning System™, Front Weights: 150 kg, Wheel Weights: 50 kg Each, Cast Iron Flange: 70 kg Each for 24" Rear Wheels, Black and White ‘Special Edition’ Livery |
|
Weight |
With Roll-Bar: 2,520 kg, With Cabin: 2,640 kg |
|
Wheelbase |
1,607 mm |
|
Ground Clearance |
156–221 mm |
|
Dimensions |
Length: 3,935 mm, Width: 1,350–1,878 mm, Height (Roll-Bar): 2,216–2,316 mm, Height (Cabin): 1,765–1,865 mm |
